48v 15Ah Li-ion Downtube Battery

48V 15Ah Li-Ion Downtube Battery

• 48V 15Ah lithium-ion battery — approximately 720Wh
• 21700 cell construction — 13S3P configuration
• 30A maximum continuous discharge
• Downtube-style locking battery case with key
• Current four-blade contact cradle
• Latest 5-pin twist-lock battery connector
• Approximately 10.1 lb (4.6 kg)

This 48V 15Ah lithium-ion battery is designed for current E-BikeKit and ElectricTrike.com 48V systems using the latest 5-pin locking battery connection. The 21700-cell construction provides approximately 720Wh of energy in a compact, removable downtube-style case.

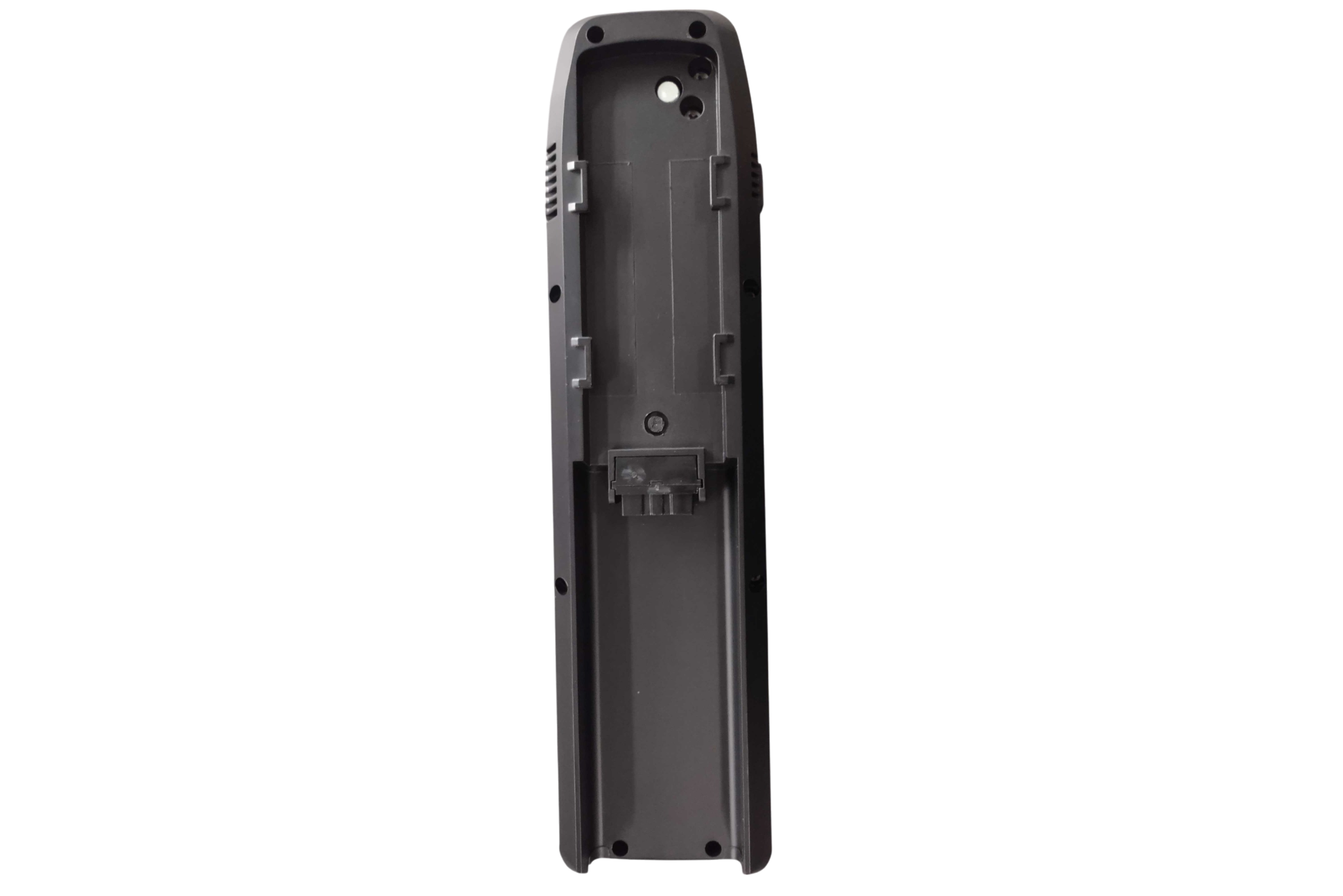

The battery slides into a four-blade contact cradle and locks securely into place with the supplied key. Four blade contacts on the underside of the battery mate with four electrical contacts in the cradle to provide the battery-to-system power connection.

The side-release design makes battery removal simple for charging, storage, transportation, or replacement.

Replacement Compatibility: If you are replacing an existing battery, confirm both the battery-to-cradle contact style and the controller-side connector. This current battery uses a four-blade cradle and a 5-pin twist-lock controller connection. Older systems may use a different cradle or controller connection.

Battery Specifications

• Nominal Voltage: 48V
• Nominal Capacity: 15Ah
• Battery Energy: Approximately 720Wh
• Cell Configuration: 21700 cells, 13S3P
• Maximum Continuous Discharge: 30A
• BMS Protection Current: 30A
• Maximum Charge Voltage: 54.6V
• BMS Low-Voltage Protection: 36V
• Charge Time: Approximately 5 hours with a 3A charger
• Expected Life: Approximately 400–500 charge cycles
• Dimensions: Approximately 14.5" × 3.5" × 5" (368 × 90 × 127 mm)
• Weight: Approximately 10.1 lb (4.6 kg)
• Battery Case: Plastic locking downtube-style casing
• Battery-to-Cradle Interface: Four-blade contact system
• Controller Connection: Current 5-pin twist-lock connection
• Certifications: UN38.3, MSDS
• Cells: UL-certified cells
• Limited Warranty: 1 year

Battery Cradle & Connection

The current 48V 15Ah battery uses a four-blade contact cradle. Four blade contacts located on the underside of the battery connect directly with four mating electrical contacts in the cradle when the battery is installed.

• Battery-to-Cradle Connection: Four-blade contact system
• Battery Removal: Side-release design
• Security: Key-lock battery retention
• Controller Connection: 5-pin twist-lock connector

When replacing an older battery or cradle, confirm both the cradle contact style and controller-side connector before ordering.

Battery Dimensions & Technical Drawing

Need exact measurements before installation? View the dimensional drawing for battery size, mounting, and fitment reference.

View 48V 15Ah Battery Dimensional Drawing (PDF)

Operating & Storage Temperatures

• Charging: 0°C to 45°C
• Discharging: -20°C to 60°C
• Storage: 0°C to 40°C
• Recommended Extended Storage: 15°C to 25°C

Actual riding range varies based on rider weight, terrain, speed, temperature, tire pressure, pedal input, assist level, throttle use, and overall vehicle load.
