Highlights

Name: Electric Fat Trike
Brand: Electric Bike Technologies
Price: 1932.0 USD
Availability: InStock

The Electric Fat Trike is the perfect companion for your next off-road adventure. The 24 x 4 inch front wheel rolls over anything in your way, and the rear 20 x 4 inch wheels lower your center of gravity for stability. The front suspension and suspension seatpost keep you comfortable on rough terrain.

The Electric Fat Trike sports versatile wide 4-inch tires with a low-profile tread for road and off-road use. These tough tires will tolerate inflation pressures from 5-30 psi, so you can let the air out for serious traction on loose surfaces or pump them up hard for excellent road performance.

Electric Fat Trike Owner's Manual – For Fat Trikes with the Color LCD Screen
Electric Fat Trike Manual – For Fat Trikes with the 2017 LCD Screen

Promax Suspension Seatpost
Mozo Front Suspension Fork
750-1000 Watt Bafang Geared Hub Motor
33-Liter Drybag
Large Easy-to-Read Color LCD
Wide Wheelbase
Low Step-Through Frame

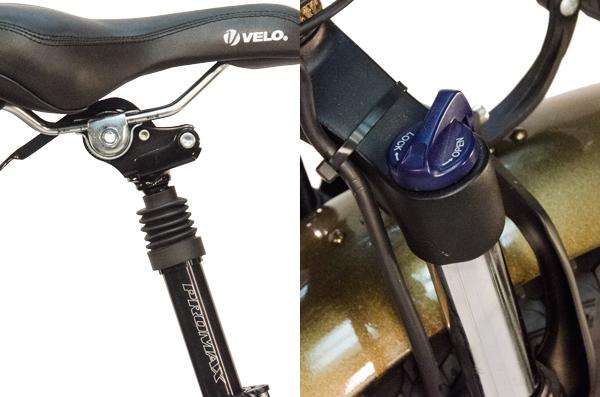

Dual Suspension

The Electric Trike features both a Mozo suspension fork with a lockout switch and a Promax suspension seatpost. Combined with the 4-inches of fat tires, this gives you a wonderfully smooth ride.

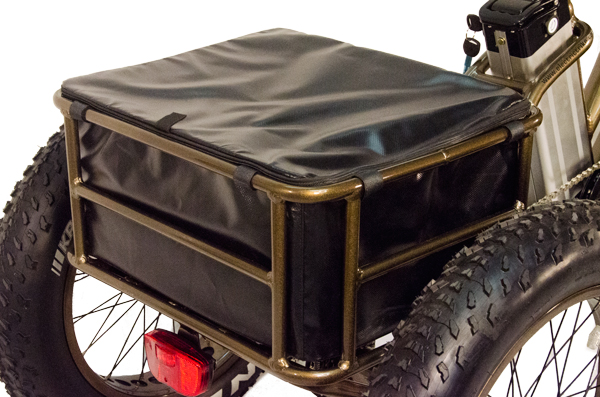

High Capacity Drybag

The Electric Fat Trike features a heavy-duty integrated basket with a 33-liter drybag. Mounted low between the rear wheels and with its sturdy tubulate aluminum frame, the basket can carry a heavy load with ease.

Easy-To-Read Segment Display

The Electric Fat Trike features an easy-to-read backlit color display with large text mounted on the handlebars. This advanced segment color LCD includes a battery meter, speed, and trip distance readout, and a programmable top speed limit.

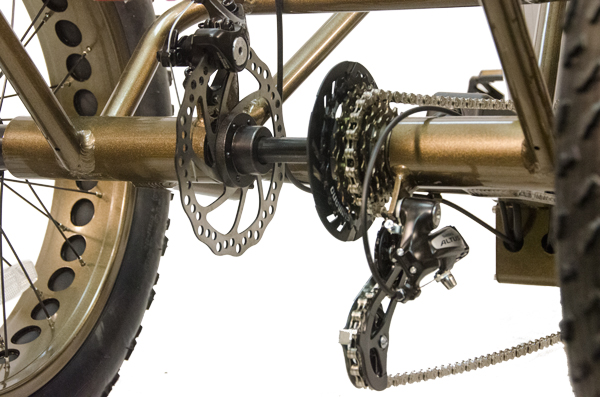

Simple 1x7 Gearing

Even if it's been a while since you rode a bike, you'll appreciate the Fat Trike's simple 1x7 gearing. This system means every gear you need is available at the flick of the wrist. No need to worry about double shifting or gear combinations!

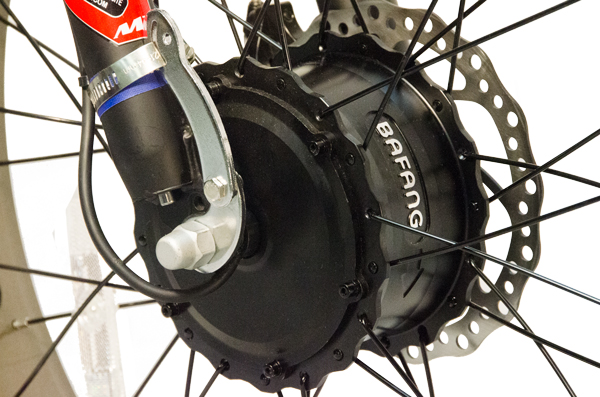

750-1000 Watt Geared Hub Motor

The 750-1000w Bafang front geared hub motor features impressive 84Nm torque and a heavy-duty 3.25-inch single wall, alloy raced rim with black 12-gauge spokes.

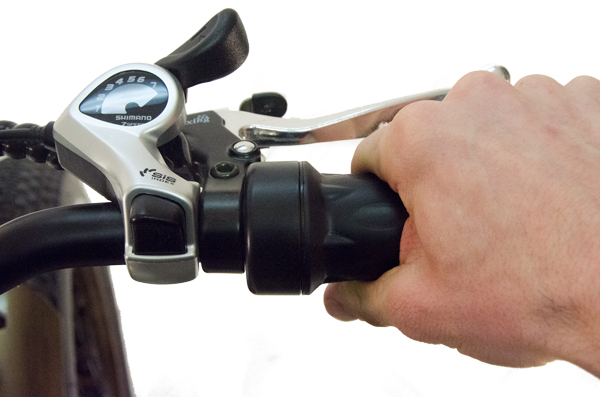

Throttle-On-Demand

The easy-to-use twist throttle allows you to engage the motor whenever you need it. Use the throttle to get a boost when starting from a stop or to help get up to cruising speed. The Fat Trike also features a pedal-assist sensor (PAS) operation.

Electric Fat Trike - Sizing

A: Handlebar Reach

24 to 27 inches (approx.)

B: Handlebar Rise

8 to 10 inches (approx.)

C: Standover Height

24 1/2 inches (approx.)

D: Seat Height to Pedal

28 to 33 inches (approx.)

E: Seat Height to Ground

34 to 40 inches (approx.)

Recommended Rider Height

5 ft to 6 ft-4 inches (approx.)

Top Speed

26 MPH (w/ a Programmable Limit)

Range

12-26 Miles (Based on rider weight, input, and terrain contingent)

Motor

Bafang Motor: Front Geared 750-1,000 Watts, 84Nm, 320 RPM (48v)

Motor Weight

12.8 lbs

Battery

48v 11.6Ah

Max Payload

275 lbs (Including rider and cargo)

Charge Time

5.8 Hours (From 0-100%)

Charger

48v 2A

Drive Mode

Throttle-on-Demand, Pedal-Assist, 5-Level Speed Control, Programmable Speed, Current Limit, and Assist Level

Colors

Red, Silver, Black, and Blue

Intended Use

Neighborhood, Cruising, Paved Trail, and Urban

Frame Material

Alloy Aluminum Frame

Fork Details

Mozo MTB Ride Fork Spring Suspension, w/ 80mm Travel, 135mm Hub Spacing, 15mm Axle w/ Skewer

Rims

Alloy, 36 Hole, Double-Wall / 82mm Outer Width w/ Cut-Outs

Spokes

(F & R) 13-Gauge, Black Stainless Steel Spokes w/ Nipples

Tires

(F) Kenda Gigas, 24in x 4in at 5-30 PSI / (R) Kenda Krusade, 20in x 4in at 5-30 PSI. (Ships at 25 PSI)

Saddle

Velo Flurry VL-6105

Seatpost

ProMax Suspension Seatpost w/ 40mm Travel / Flip-up Lever for Battery Access / 27.2mm Diameter x 368.3mm Length

Seat Clamp

Alloy, Quick-Release Lever

Stem

Promax, Alloy / 90mm Length x 31.8mm Diameter / 45-Degree Adjustable

Handlebar

Alloy, Low Rise / 680mm Length x 22.5mm Diameter

Brake Lever

Includes E-brake Shutoff and Parking Lock, One Lever for the Front Wheel, and One Lever for the Right-Hand Rear Wheel

Brakes

(F) Tektro Aries Mechanical Disc Brakes w/ 180mm Rotor / (R) 160mm Rotor

Grips

Faux Black Leather Ergo

Shifter

Shimano SIS Index

Display

Key Display Color LCD

Front Derailleur

None

Rear Derailleur

Shimano Altus

Chain Guard

Black Bash Guard

Cranks

Prowheel Alloy, 170mm Length / 48t Chainring

Pedals

Wellgo, Alloy Platform Pedals w/ 9/16-inch thread

Gearing

Shimano 7-Speed (1x7) / 13-28t Cassette

Lights

(R) 3 LED Frame-Mounted Light Under the Rear Basket, Powered by Two AA Batteries

Fenders

Color Matched Front and Rear Steel, Fenders

Basket

Color Matched, Heavy-Duty Integrated Aluminum Basket: 17.5in x 14.5in x 8in w/ 33-liter Drybag

Wheelbase

49-inches

Overall Length

78-inches

Max Width

31-inches

Ground Clearance

4-inches (From the bottom of the rear derailleur to the ground)

Turning Radius

Approx. 10ft 9-inches

Overall Weight

88 lbs

Nominal Voltage

48v

Nominal Capacity

11.6Ah

Battery Energy

556w

Dimensions

15.5in x 4.3in x 3in (395mm x 110mm x 75mm) approx.

Battery Weight

8.8 lbs

Cell Assembly

18650-3.6v-13S

Life Cycle

>= 80% Dod = 800 Cycles

Max Continuous Discharge

22.5A

BMS Protection Current

30A

Discharge Cut-Off Voltage

37.5v

Max Charge Voltage

54.6v

Inner Resistance

<= 50mΩ

Charge Time

<= 3.9 Hours (From 0-100%)

Operation Temperature Range

Charge: 0°C – 45°C / Discharge: -20°C – 60°C

Storage Temperature

0°C – 40°C (Extended Storage: 15°C – 25°C;)

Battery Box Material

Aluminum Enclosure

Assembled Pack Certificates

UN38.3; MSDS; RoHS; SGS

Limited Warranty

1 Year

Manufacturer

Electric Bike Technologies, Inc.

$250 FLAT-RATE SHIPPING

The Contiguous USA Only.

SALES TAX

Sales tax will be applied by the state where applicable.

SHIPS 100% FULLY ASSEMBLED from Our Warehouse in Bucks County, PA

The tricycle is enclosed in a heavy cardboard box and fastened to a custom-built shipping pallet. Shipping is by freight truck with liftgate service included.We use a variety of freight carriers based on your shipping destination. When the trike ships, you will receive an email from us with tracking information. The freight company will contact you before the final delivery is made in order to arrange the drop-off with you.

RETURNS & REFUNDS

The electric tricycles we offer are high-quality tricycles assembled by professionals with years of experience, and we stand behind each electric tricycle we build and ship. If, for any reason, after purchasing your electric trike, you are not 100% satisfied, simply contact customer service to discuss the return.

IMPORTANT

Buyers may return any undamaged and unused products (including fully assembled electric tricycles) within 30 days of delivery for a refund minus a 25% restocking fee (based on the condition of the returned item and at the sole discretion of EBT). ACTUAL ORIGINAL SHIPPING CHARGES (not the flat-rate $250) AND RETURN SHIPPING CHARGES (back to our facility) ARE THE SOLE RESPONSIBILITY OF THE BUYER. These return shipping costs can be significant. It is also imperative that you retain the shipping pallet and box should you decide to return a complete tricycle. If these packing items are discarded, the return will become that much more complicated and expensive.

For more information on Returns, Shipping Charges, and refunds, please visit our Terms & Conditions.

TRANSIT TIMES

Approximate transit times start once the parcel leaves our Croydon, PA warehouse. East Coast: 2-4 Business Days Midwest: 3-5 Business Days West Coast: 5-7 Business Days
With liftgate service, the truck can only lower the pallet to the ground, and they cannot deliver it inside your house. You will need to open the box and dispose of the pallet afterward.

SHIPPING SIZE

80in x 40in x 53in and 190 lbs

PLEASE NOTE

This electric Fat Trike is currently shipping without a user manual. We do offer the Fat Trike's Owner's Manual online. It's available as a PDF to download or printout. The specifications sections should also provide most of the information you'll want to know. If you have any questions, suggestions, or additional information that you would like to see posted, please let us know.
