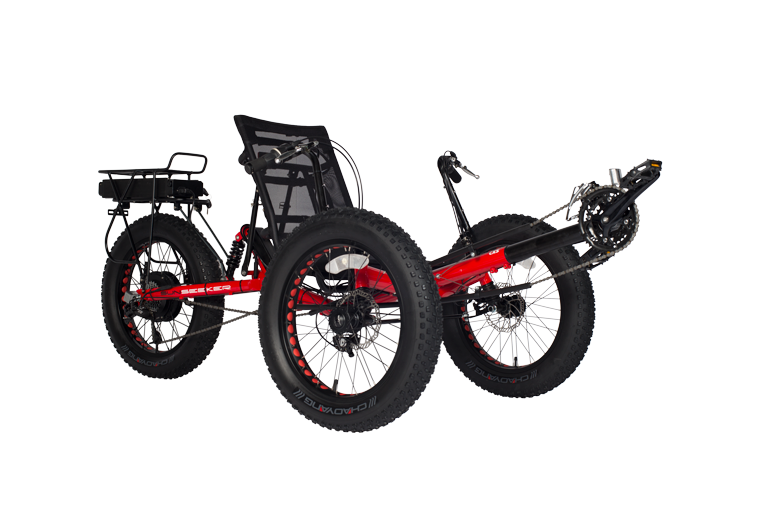

Highlights

The Fat-Tad is a unique recumbent with stylish looks and lots of value. We offer the most popular recumbent electric trike for obvious reasons; it delivers easy access to speed and power to assist you in going farther and faster while remaining comfortable.

This 4-inch fat tire electric recumbent has a compact yet powerful 1000 watts of peak power, 26 mph top speed, and plenty of torque to help power your ride. Available with multiple battery and tire options to meet your range and terrain requirements.

750w (nominal)/1000w (peak)
48v15ah Battery - 15-45 miles/5hr charge (0-100%)
Rear Coil-Over Suspension w/ 30mm of Travel
Promax Mechanical Disc Brakes
Full-Range SRAM Shifting
Ergonomic Chromoly Handlebars
Air-Mesh Seat

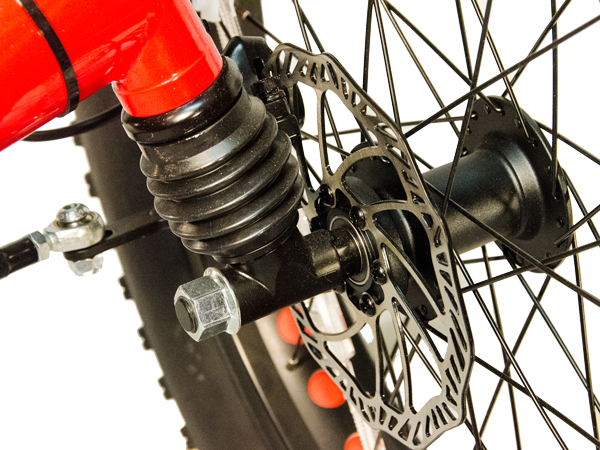

Independent Front Suspension

The Fat-Tad features an independent, fork-integrated front suspension on each front wheel in addition to the rear coil-over suspension. Combined with the massive 4-inch tires, this trike can really soak up the bumps!

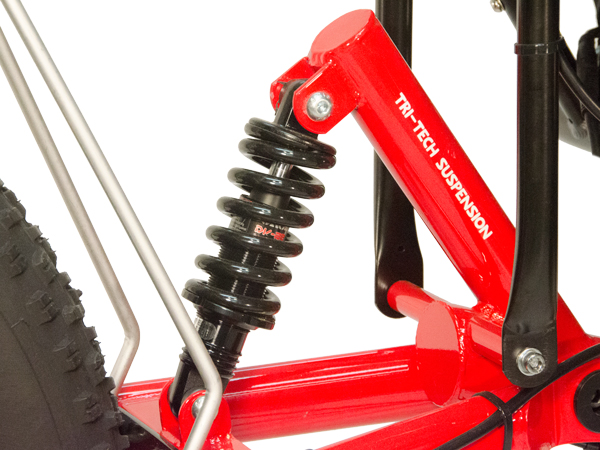

Rear Coil-Over Suspension

The rear coil-over suspension adds cushion right where it is needed, under the rider's seat. The suspension bushing and swingarm design allow the rear wheel to articulate independently from the front wheels for the smoothest ride possible.

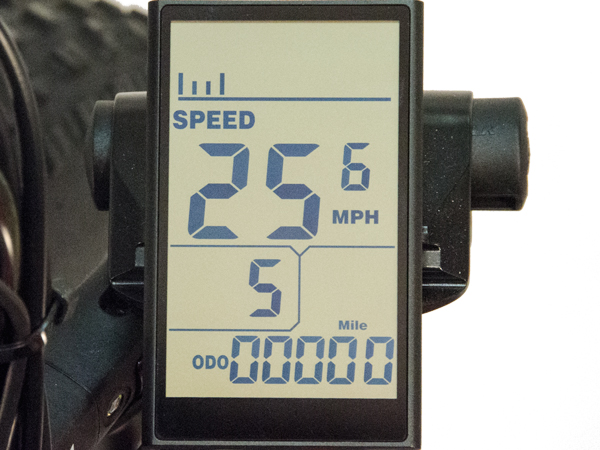

Easy-To-Read Segment Display

The Electric Fat-Tad features an easy-to-read backlit display with large text on an articulating mount. This advanced segment color LCD includes a battery meter, speed, and trip distance readout, and programmable top speed limit.

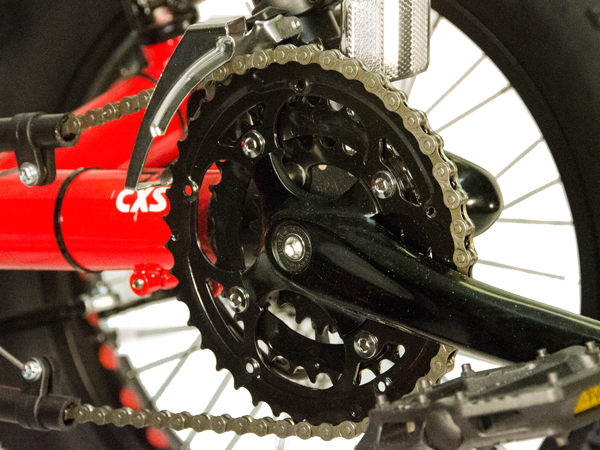

Versatile 3x8 Gearing

The Fat-Tad features a 24-speed drivetrain, providing you with a wide range of gears to help you tackle anything that might come your way, from hills to straightaways; you'll be prepared to keep on pedaling.

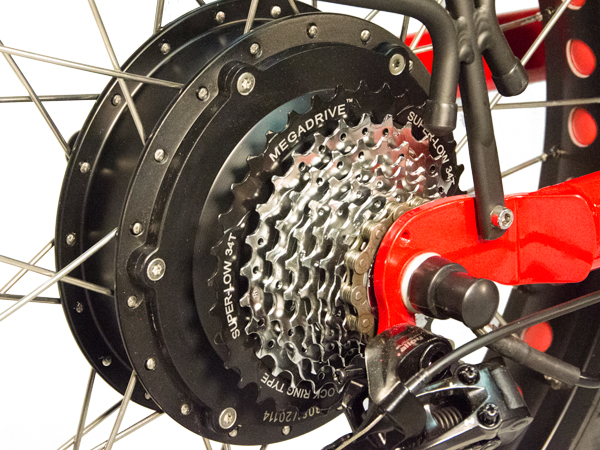

750 Nominal, 1,000 Peak Watts Geared Hub Motor

The 750 nominal, 1,000 peak watts Electric Bike Technologies fat bike rear geared hub motor features impressive 84Nm torque and a USA handbuilt wheel with single-butted 12-13 gauge spokes for durability.

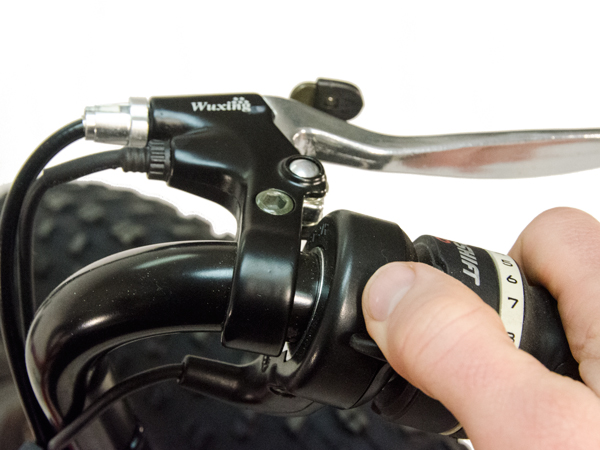

Thumb Throttle

The easy-to-use twist throttle allows you to engage the motor whenever you need it. Use the throttle to get a boost when starting from a stop or to help get up to cruising speed. The Fat-Tad also features a pedal-assist sensor (PAS) for operation.

Electric Fat-Tad - Sizing

A: Handlebar Reach

8-12 Inches

B: Standover Height

18 Inches

C: Seat Length to Pedal

38-50 Inches

D: Seat Height to Ground

16.5-17.75 Inches (depends on rider X-Seam set-up)

Recommended Rider Height

5'-6'4" Inches

Top Speed

26 Mph (w/ Programmable Limit)

Range

15-45 Miles

Motor

Heavy-Duty Direct-Drive 750-1000 Watts, 31N-m, 259 Rpm (48v)

Motor Weight

9.4 lbs

Battery

48v15ah

Max Payload

250 lbs (Including rider and cargo)

Charge Time

4.5-5 Hours (From 0-100%)

Charger

48v 23a

Drive Mode

Throttle-on-Demand, Pedal-Assist, 5-Level Speed Control, Programmable Speed, Current Limit, and Assist Level

Color

Gloss Red w/ Black Accents

Intended Use

Neighborhood, Cruising, Paved Trail, Off-Road, and Urban

Frame Material

Tig Welded Chromoly with Rear Coil Over Suspension

Fork Details

High Tensile Steel, Front Integrated Suspension w/ 20mm Travel

Rear Frame Details

Rear Coil-Over Suspension w/ 30mm Travel

Rims

20-inch Alloy, Single Wall, 55mm Width, w/ Cut-Outs

Spokes

(F) 14-Gauge Single-Butted, Stainless Steel / (R) 13-Gauge, Stainless Steel

Tires

Fat Bike Knobby, 20in x 4in or Slick: Sunlite XL, 20in x 4.25in at 5 to 25 PSI. (Ships at 25 PSI)

Saddle

Sunlite Padded Seat w/ Mesh Back and Adjustable Backrest Angle

Brakes

(F) ProMax Mechanical Disc w/ 160mm Rotors

Brake Lever

Includes E-brake Shutoff, Parking Lock, and One Lever for Each Front Wheel

Stem

None

Handlebar

Chromoly Steel, 22.5mm Diameter w/ 2 Water Bottle Mounts

Grips

EBT Grips – EVA Rubber

Shifter

SRAM Grip Shift 3.0

Display

Color LCD

Front Derailleur

Sunrace Triple

Rear Derailleur

Sram X4

Gearing

SunRace 8-Speed (3x8) / 13-34t Freewheel

Cranks

Triple Alloy, 170mm Length / 42, 32, 22 Chainrings

Pedals

Wellgo, B223 Plastic Platform w/ 9/16-inch thread

X-Seam Range

35 to 50 1/2-inches (smaller sizes may require modifications)

Wheelbase

59-inches

Overall Length

78 - 83.5-inches (Depends on rider's X-Seam set-up)

Max Width

38-inches

Ground Clearance

10-inches (Measured from the bottom of the steering linkage to the ground)

Turning Radius

Approx. 11ft 6-inches

Overall Weight

76.5 to 91.5 lbs (Depends on the battery choice)

Nominal Voltage

48v

Nominal Capacity

15ah

Battery Energy

720Wh

Dimensions

14"x3.5"x5"

Total Weight

10lbs 2oz

Cell Assembly

18650-3.6v-13S

Life Cycles

>= 80% Dod = 500 Cycles

Max Continuous Discharge

22.5A

BMS Protection Current

30A

Discharge Cut-Off Voltage

37.5v

Max Charge Voltage

54.6v

Inner Resistance

<= 50mΩ

Charge Time

<= 5 Hours (From 0-100%)

Operation Temperature Range

Charge: 0°C – 45°C / Discharge: -20°C – 60°C

Storage Temperature

0°C – 40°C (Extended Storage: 15°C – 25°C)

Battery Box Material

Plastic Casing

Assembled Pack Certificates

UN38.3; MSDS; RoHS; SGS

Limited Warranty

1 Year

Manufacturer

Electric Bike Technologies, Inc.

How to Measure Your X-Seam

At Electric Trike Store, we like to use the x-seam measurement to fit riders on recumbent trikes and inseam to fit riders on upright trikes (like the Sun Traditional).

We use this measurement to adjust your trike to fit you out of the box, but it's simple to adjust your trike later to suit your preferences. This is just a rough measurement to make things easier for you.

Alternatively, if you like reading and diagrams...

To measure your X-Seam, you'll need a tape measure, a sturdy board (like a piece of plywood or an ironing board), and an assistant to help you. If you currently ride a recumbent bike, you can use that to take the measurement instead of the board.

$250 FLAT-RATE SHIPPING

The Contiguous USA Only.

SALES TAX

Sales tax will be applied by the state where applicable.

SHIPS 100% FULLY ASSEMBLED from Our Warehouse in Bucks County, PA

The tricycle is enclosed in a heavy cardboard box and fastened to a custom-built shipping pallet. Shipping is by freight truck with liftgate service included.We use a variety of freight carriers based on your shipping destination. When the trike ships, you will receive an email from us with tracking information. The freight company will contact you before the final delivery is made in order to arrange the drop-off with you.

RETURNS & REFUNDS

The electric tricycles we offer are high-quality tricycles assembled by professionals with years of experience, and we stand behind each electric tricycle we build and ship. If, for any reason, after purchasing your electric trike, you are not 100% satisfied, simply contact customer service to discuss the return.

IMPORTANT

Buyers may return any undamaged and unused products (including fully assembled electric tricycles) within 30 days of delivery for a refund minus a 25% restocking fee (based on the condition of the returned item and at the sole discretion of EBT). ACTUAL ORIGINAL SHIPPING CHARGES (not the flat-rate $250) AND RETURN SHIPPING CHARGES (back to our facility) ARE THE SOLE RESPONSIBILITY OF THE BUYER. These return shipping costs can be significant. It is also imperative that you retain the shipping pallet and box should you decide to return a complete tricycle. If these packing items are discarded, the return will become that much more complicated and expensive.

For more information on Returns, Shipping Charges, and refunds, please visit our Terms & Conditions.

TRANSIT TIMES

Approximate transit times start once the parcel leaves our Croydon, PA warehouse. East Coast: 2-4 Business Days Midwest: 3-5 Business Days West Coast: 5-7 Business Days
With liftgate service, the truck can only lower the pallet to the ground, and they cannot deliver it inside your house. You will need to open the box and dispose of the pallet afterward.

SHIPPING SIZE

80in x 40in x 53in and 190 lbs

PLEASE NOTE

This electric Fat Trike is currently shipping without a user manual. We do offer the Fat Trike's Owner's Manual online. It's available as a PDF to download or printout. The specifications sections should also provide most of the information you'll want to know. If you have any questions, suggestions, or additional information that you would like to see posted, please let us know.
