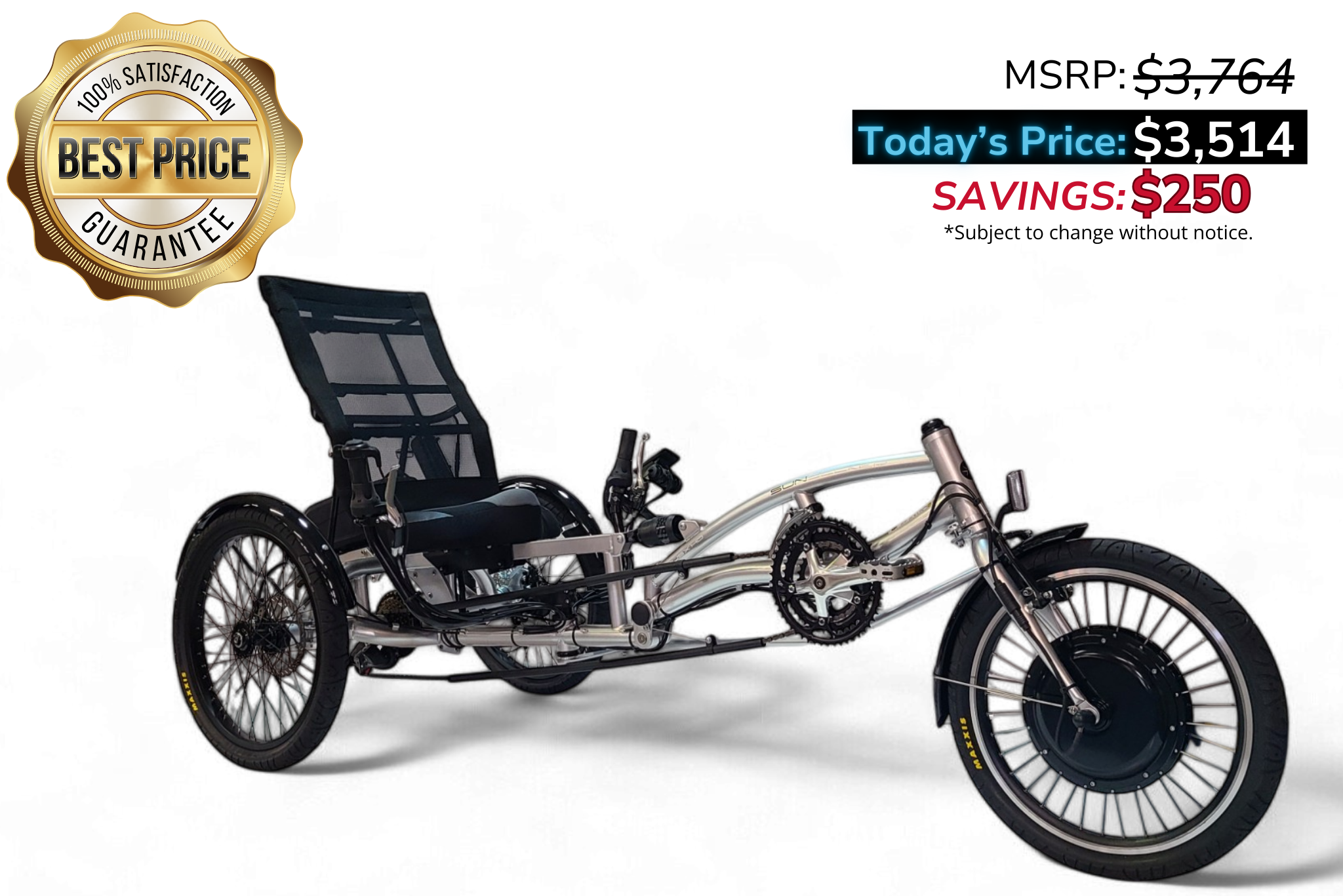

Electric EZ-3 USX HD
- Heavy-Duty Electric Delta Recumbent
- 20 mph Top Speed / 10-44 Mile Range*
- 400 lb Capacity w/ Low Center of Gravity
In stock - ships in 3-4 business days.
The EZ-3 USX HD provides all the stability and control available in recumbent trike technology while offering a little more thrill. The HD stands for heavy duty, with 110 psi tires, 48 spoke wheels with double-wall rims. The direct-drive motor is also HD and designed for heavier loads with 1000 watts of peak power.
Setting this trike apart from others is its low center of gravity attained by three 20-inch wheels that are cambered in the rear to increase cornering stability. The EZ-3 USX HD offers powerful brakes on all three wheels, mid-frame suspension and under-the-seat steering. The EZ-3 USX features Direct Steering, the new Slotted Seat adjustment system, and rattle-free and infinite-adjust seat struts.
| Model | Weight | Range | Mount Style | Cost |
| 48v 9ah | 5.8lbs | 10-22 | Battery bag with velcro straps | Base Cost |
| 48v 10ah | 9.7lbs | 12-26 | Sliding plate with lock | +$286 |
| 48v 20ah | 14lbs | 20-44 | Battery bag with velcro straps | +$366 |
Videos, written instructions and links related to the electrical system and the conversion process that was performed on this tricycle. Specific tasks and additional parts needed to convert this trike in the best possible way.
Conversion Points:
- Torque arm - non-drive-side
- Battery plate - bottle boss
- Topeak bar extender
- Left hand e-brake only
- Twist throttle above shifter
- Modify original grips
Kit Model: E-BikeKit DDFH 20”
- 1 left locking e-brake
- One brake dongle
- Split-twist throttle
- Modify stock grips
- m6 plate mounting screws
Additional Parts:
- 2 x EZ-3 backrest support bottle boss to battery plate adaptor
- 4 x McMaster #91785A544 - ¼-20x1.25” Extra Large Truss Head (slotted) screws (NOTE HEAD MUST BE VERY LOW PROFILE < 0.15”
- J&B Importers #34395 - Topeak bar extender computer mount
Highlights:
- Low center of gravity
- Stable cambered rear wheels
- HD 48-spoke rear wheels
- Double-wall rims
- High-pressure tires
- Rated for riders up to 400lbs
- Extra padded mesh seat
- Mid-frame suspension
- 20” x 1.9” tires
- Quick release adjustable seat
- Quick release backrest
- Dual rear disc & front v-brake
Tricycle Specifications:
- JB Part #69322
- Wheel Base: 59.5" (151cm)
- Overall Length: 78" (198cm)
- Width: 32" (81cm)
- Seat Height: 18" (45cm)
- Weight: 65lbs
- Weight Limit: 400lbs
- X-Seam: 36-47"
Highlights:
- 1000w peak power
- HD Direct-Drive Motor
- 10-20 mile range
- 48v10ah Li-ion Battery
- USA hand-built wheel
- 5-level top speed control
System:
Watts (Nominal/Peak): 500-1000w
Top Speed: Approx. 20mph
Range: 10-20 Miles
Charge Time: 2.5hrs (0-100%)
Weight: 24lbs (11kgs)
Motor:
Brand: Electric Bike Technologies
Type: Direct-Drive (gearless)
Power: 500w nominal / >1000 @48v
Max Torque: 46N-m @48v
Max RPM: 259 @48v
Cable: 8" axle exit, 3-phase / 5 hall effect
Connector: Round 8-pin 13/32" (10.4mm)
Weight: 12.8lbs (5.8kg)
Battery:
Nominal Voltage: 48v
Nominal Capacity: (depends on choice - 9 - 20ah)
Battery Energy: (depends on choice - 490 - 1092wh)
Dimensions: (depends on choice)
Total Weight: <= (depends on choice)
Cell Assembly: 18650-3.6v-13S
Life Cycles: >=80% Dod = 500 cycles
Max. Continuous Discharge: 22.5A
BMS Protection Current: 30A
Discharge Cut-Off Voltage: 37.5v
Max. Charge Voltage: 54.6v
Inner Resistance: < 50mΩ
Charge Time: <= 3.3 hours
Operation Temperature Range: Charge: 0’C---45’C / Discharge: -20’C---60’C
Storage Temperature: 0’C---40’C (Extended Storage: 15’C-25’C;)
Battery Box Material: (depends on choice - aluminum or vinyl w/ canvas bag)
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS
Manufacturer: Electric Bike Technologies
