Top Speed
18 Mph (w/ Programmable Limit)
Range
15-45 Miles

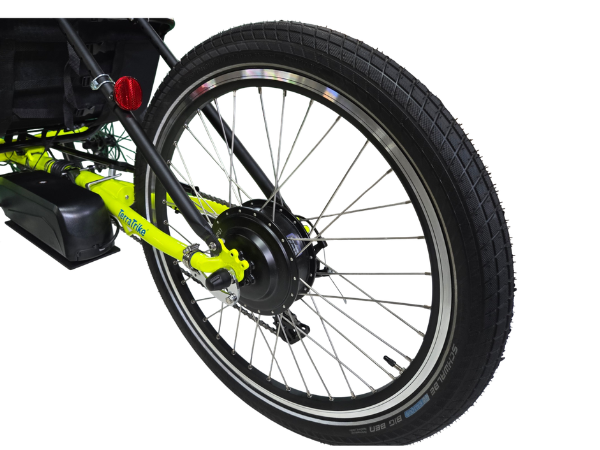

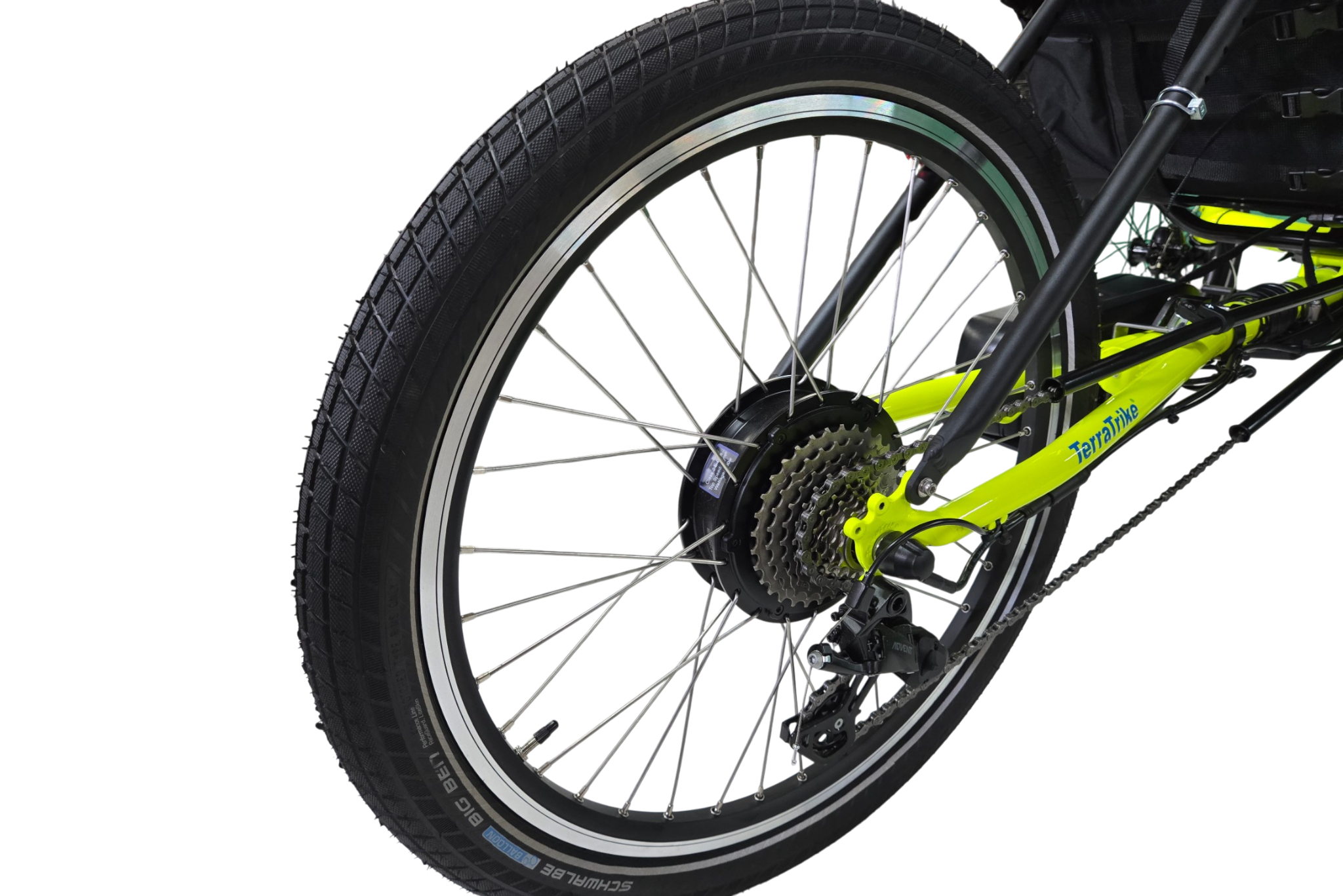

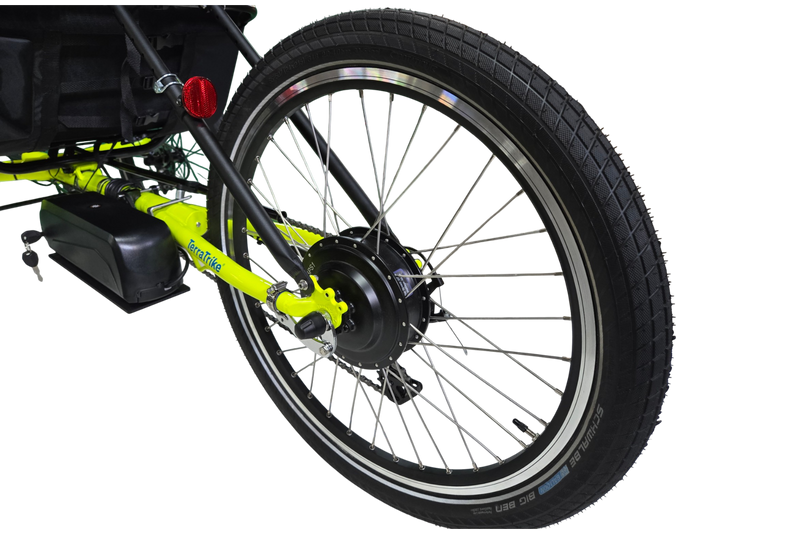

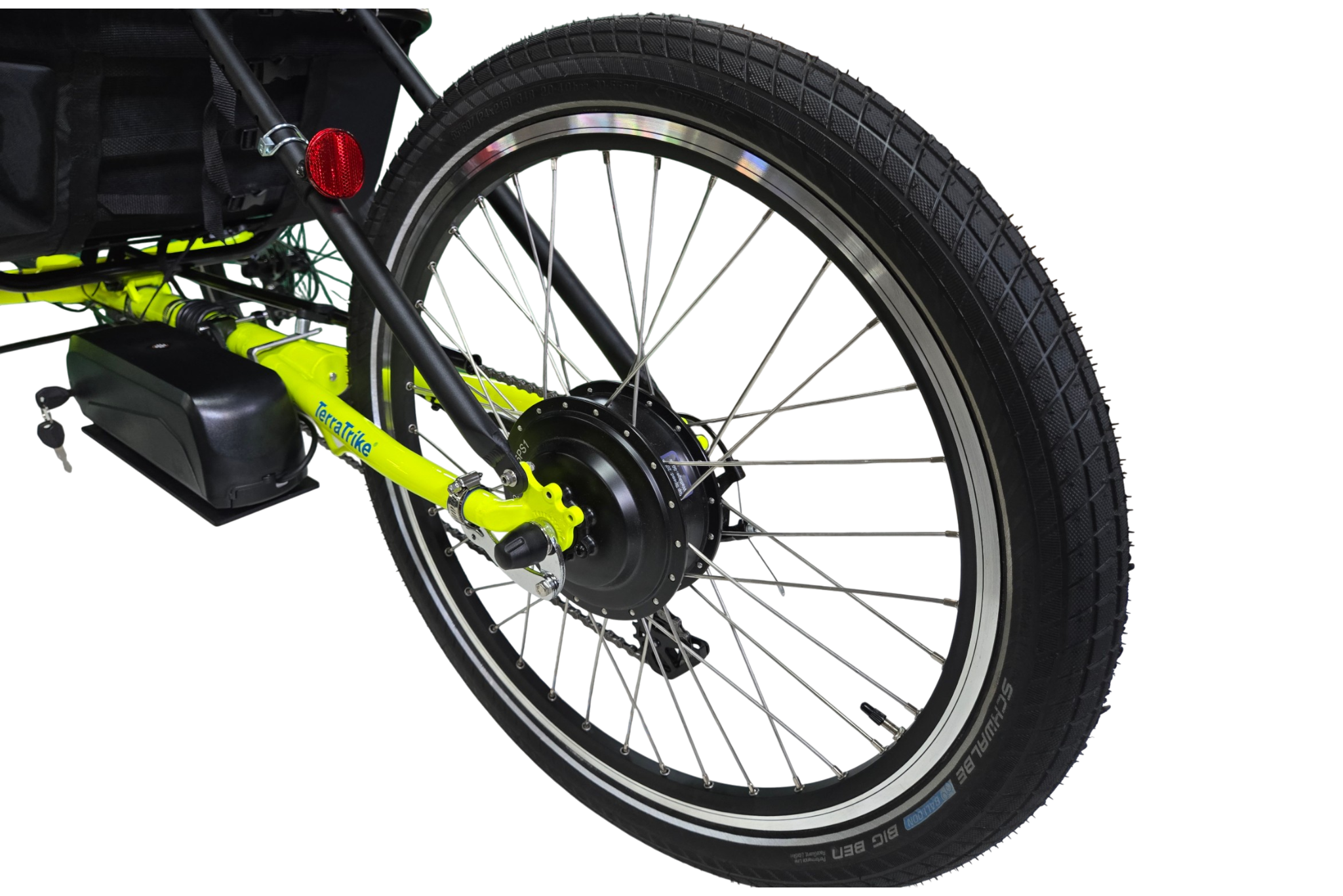

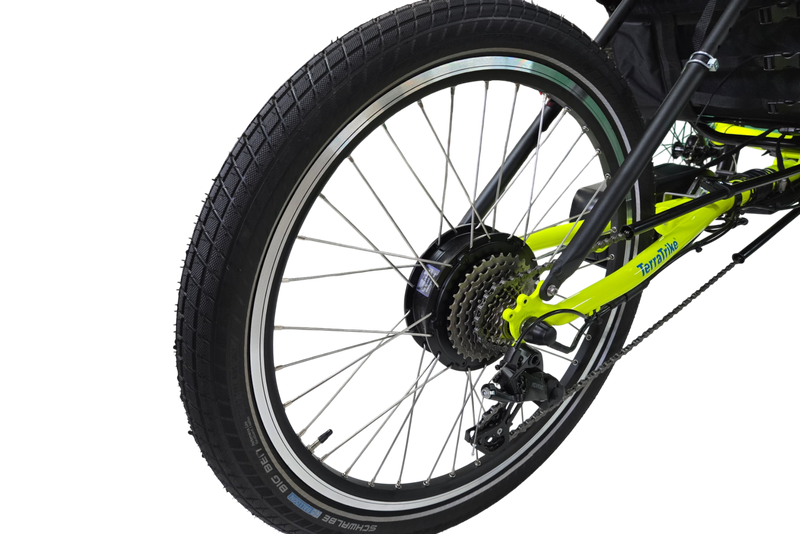

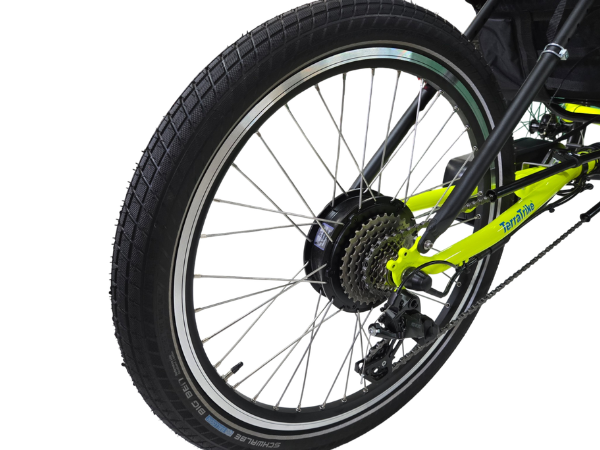

Motor
500–1000W Peak Hub Motor, 84N-m @ 48V / 320 RPM
Motor Weight
9.4 lbs

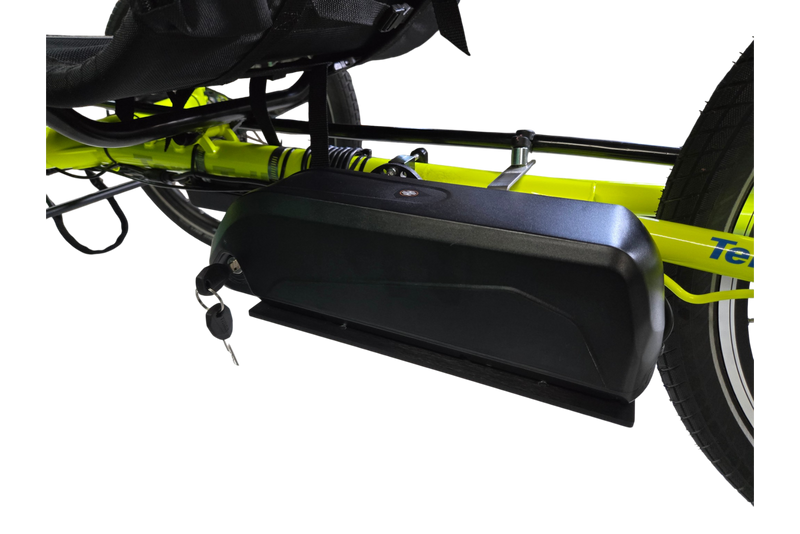

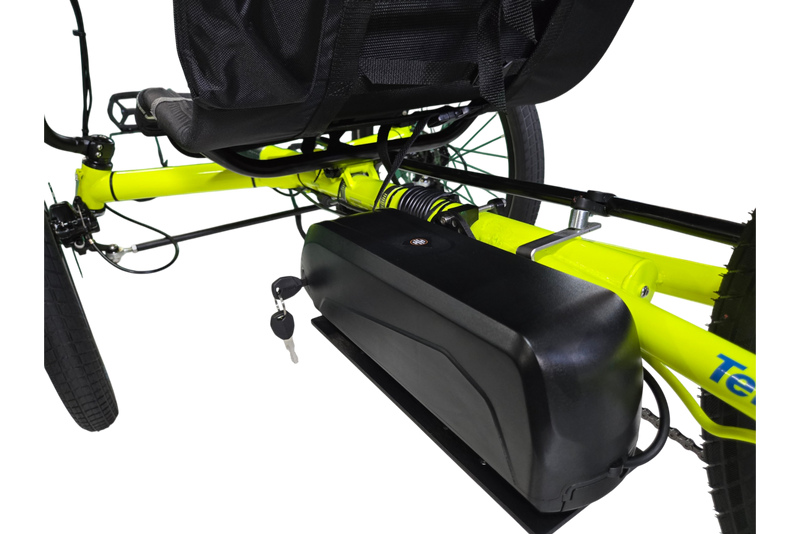

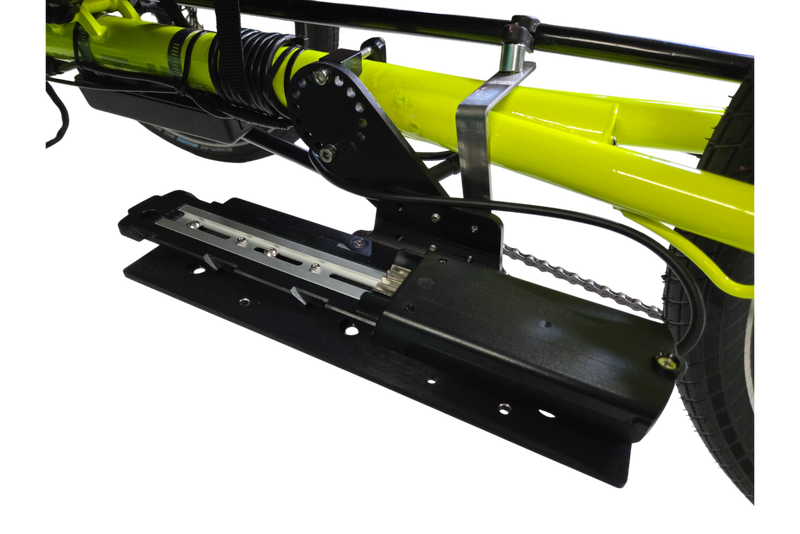

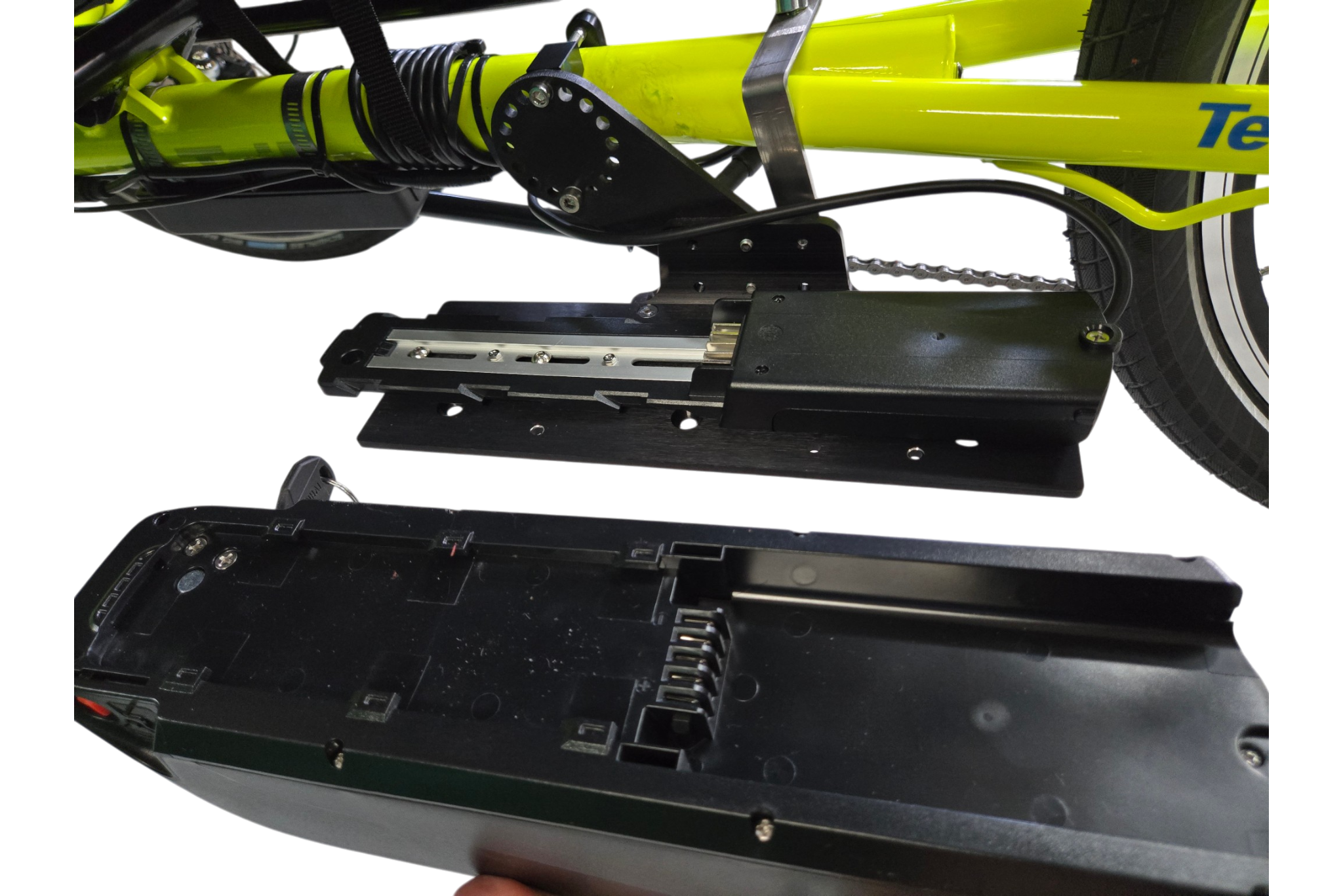

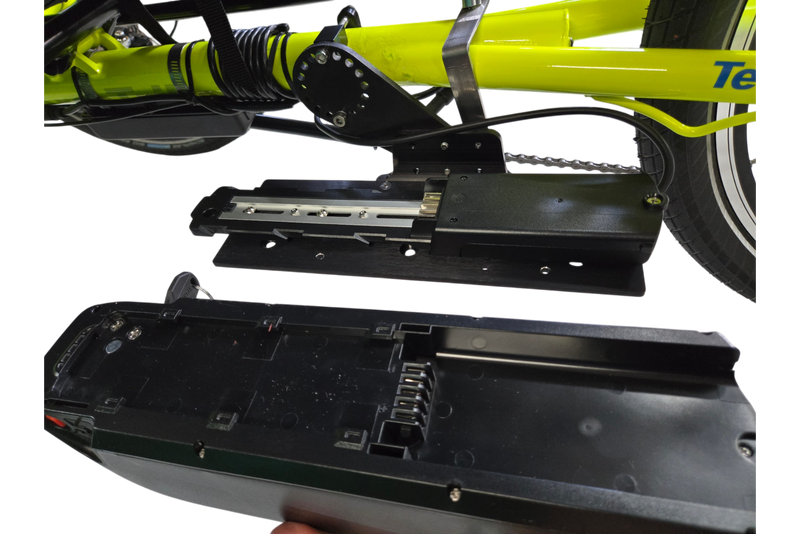

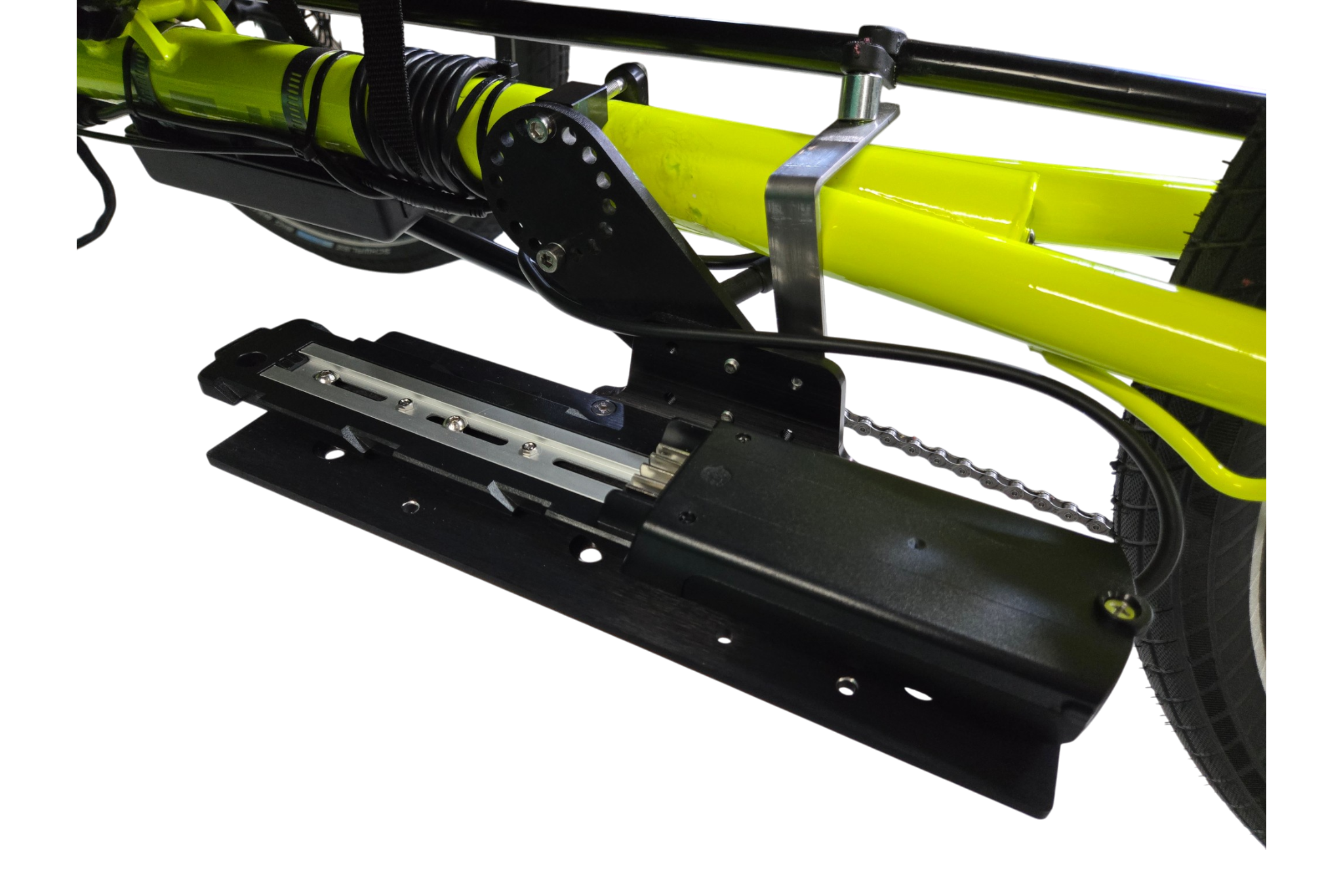

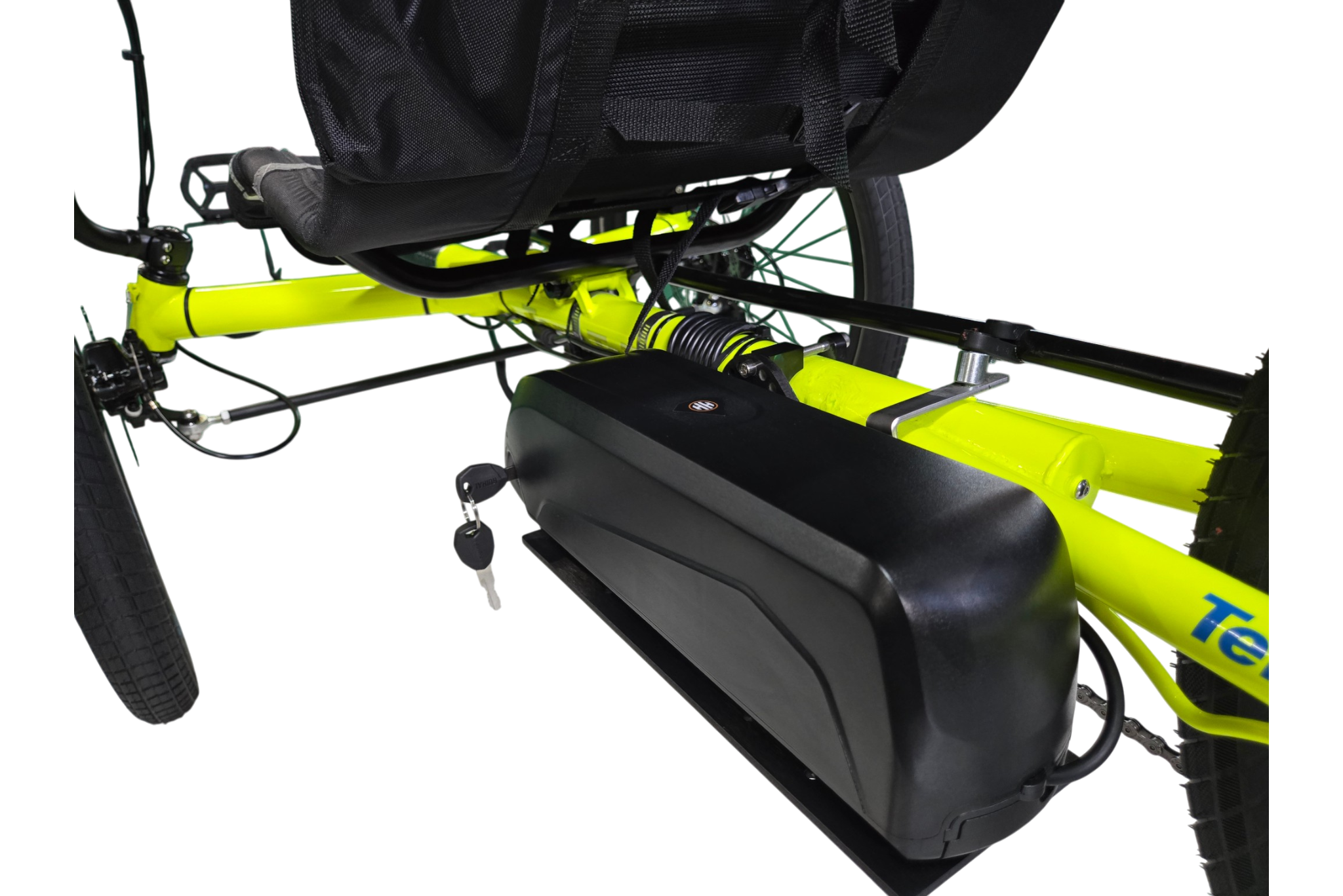

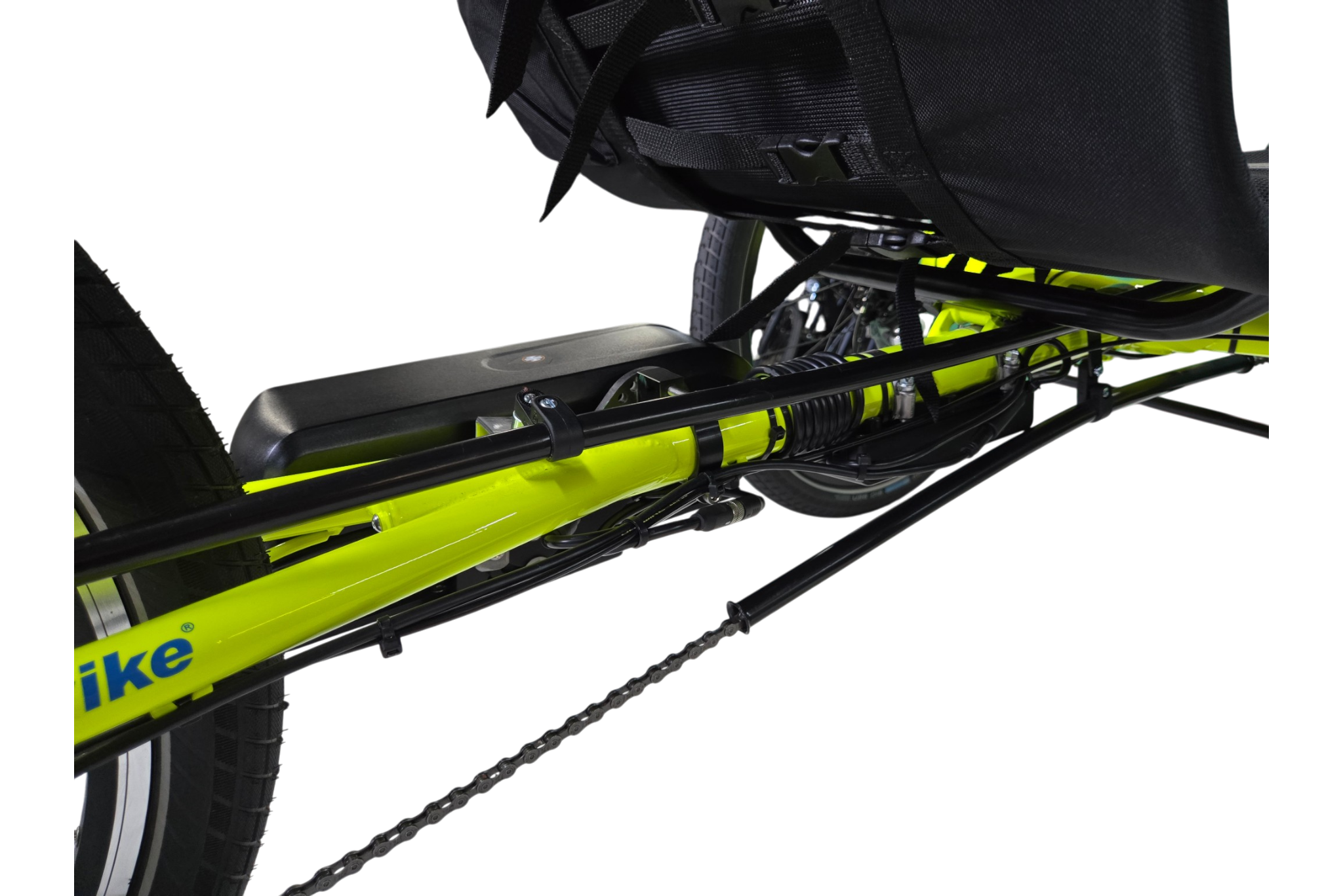

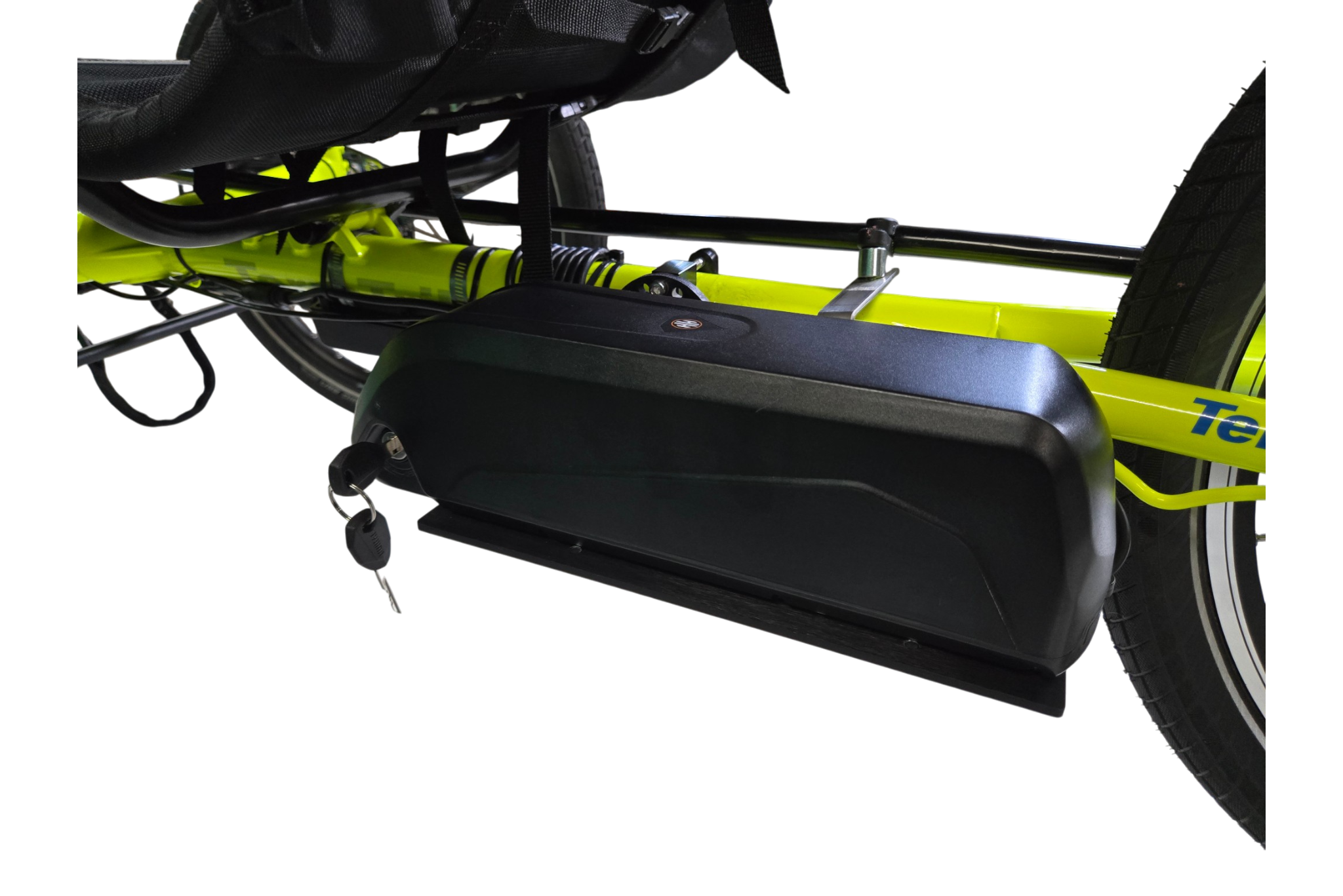

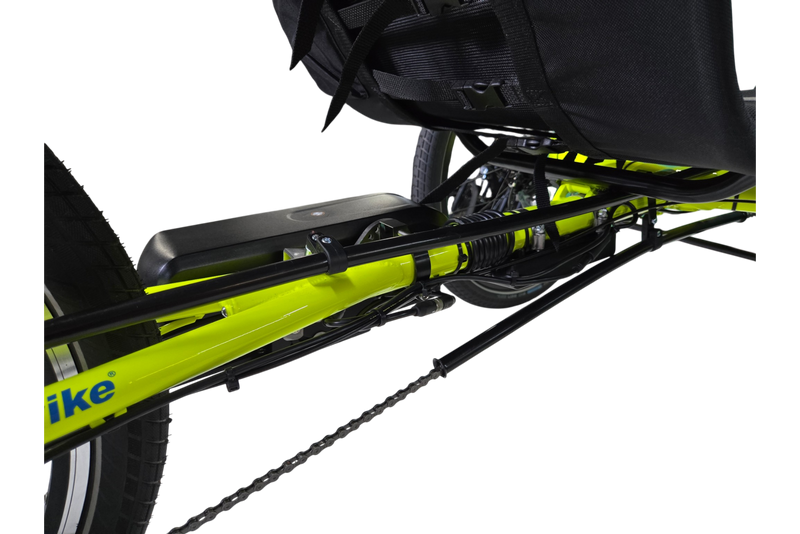

Battery
48V 15Ah Lithium-Ion
Max Payload
400 lbs (Including rider and cargo)
Charge Time
5 Hours (From 0-100%)
Charger
48V 3A

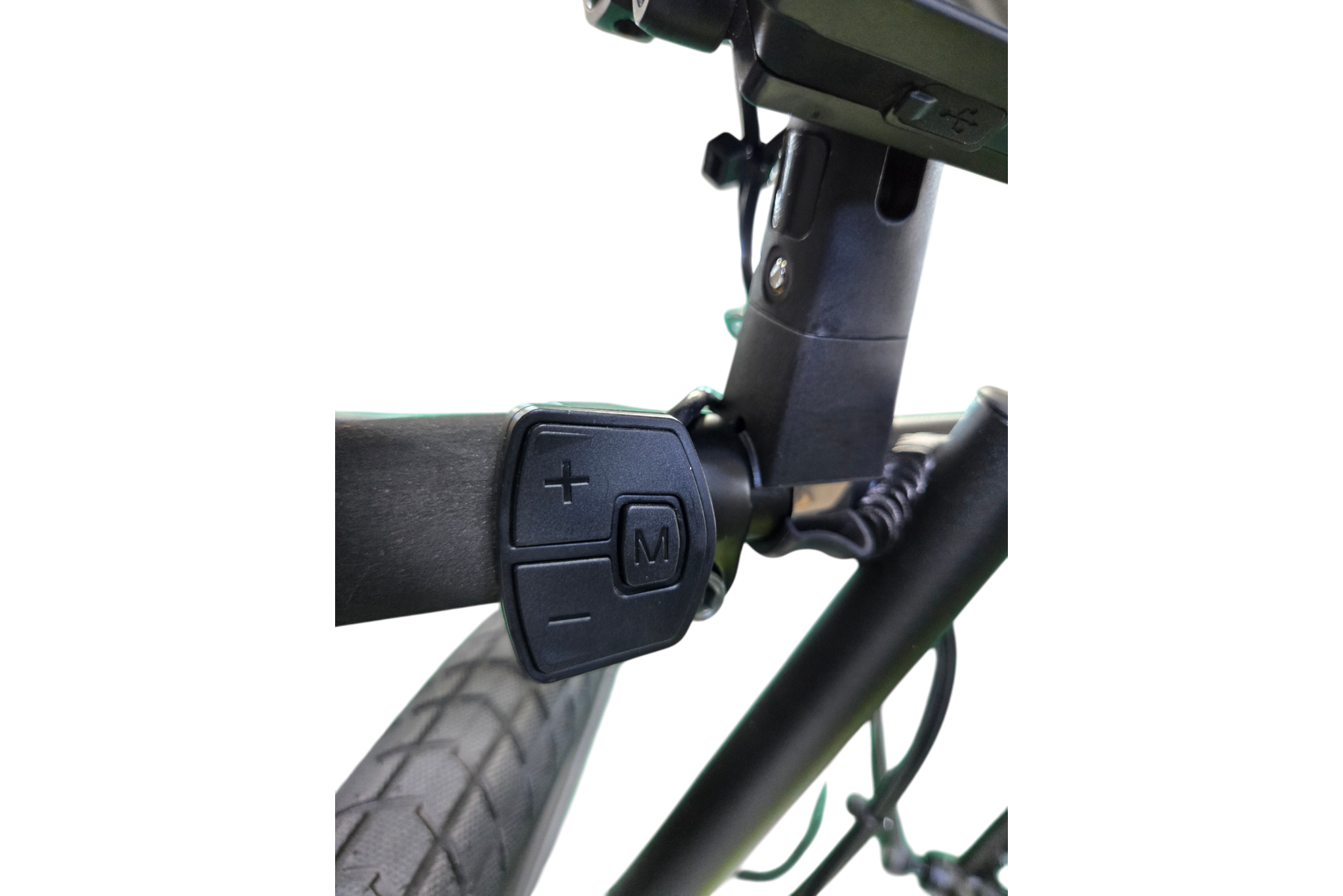

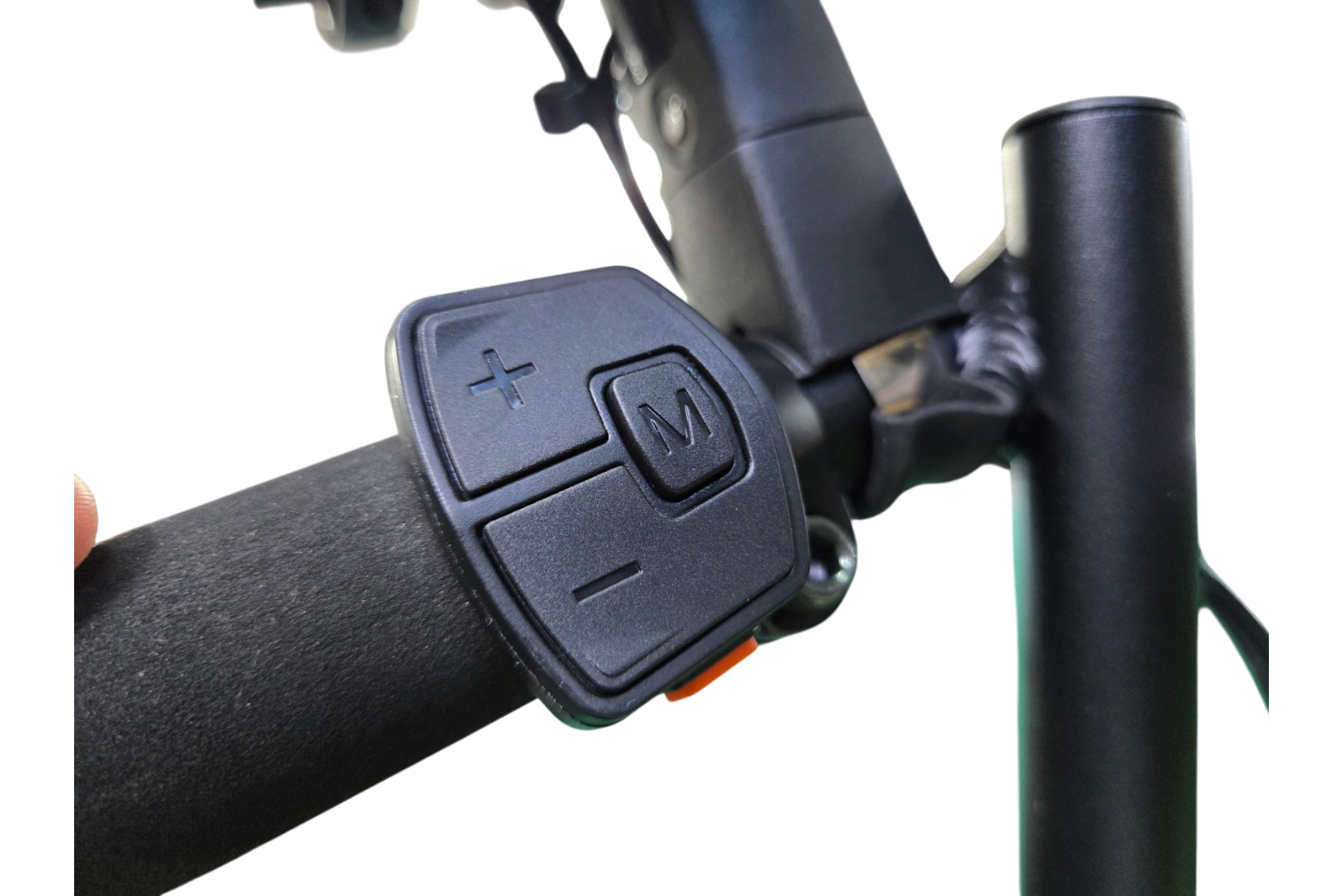

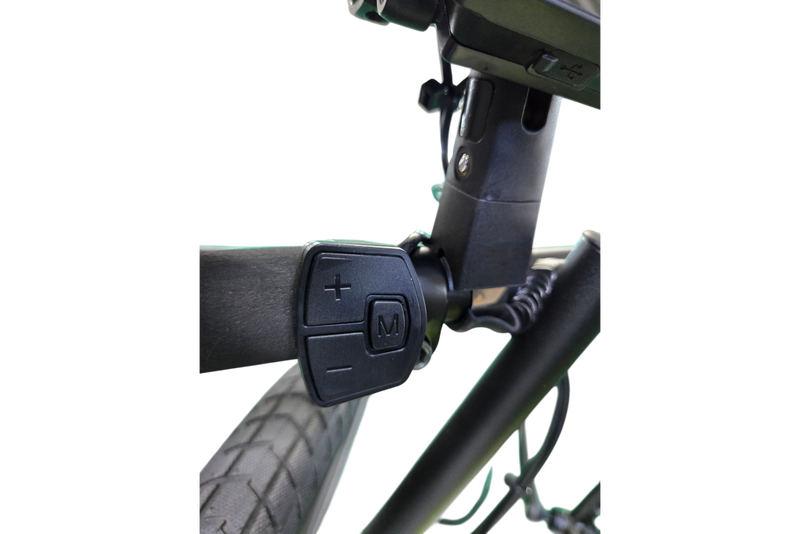

Drive Modes
Throttle-on-Demand, Torque-Sensing Pedal Assist, 5-Level Assist Control, Cruise Control, Programmable Speed Limit

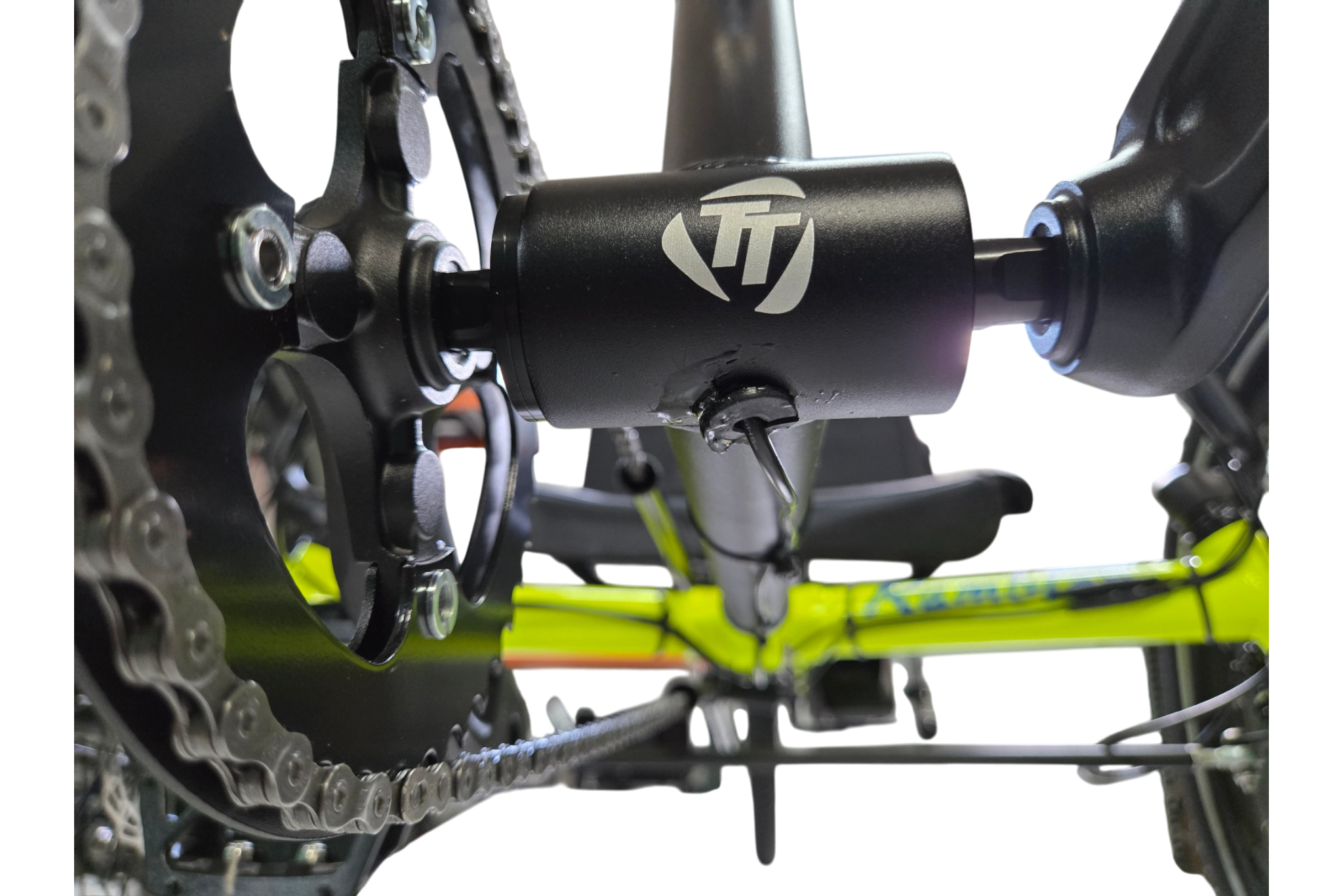

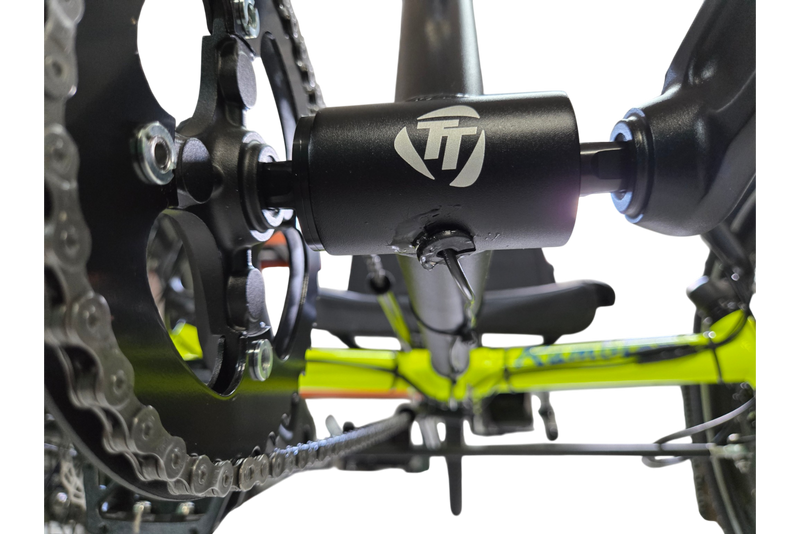

Controller
SINET™ Sine Wave Controller with Integrated Bottom Bracket Torque Sensing

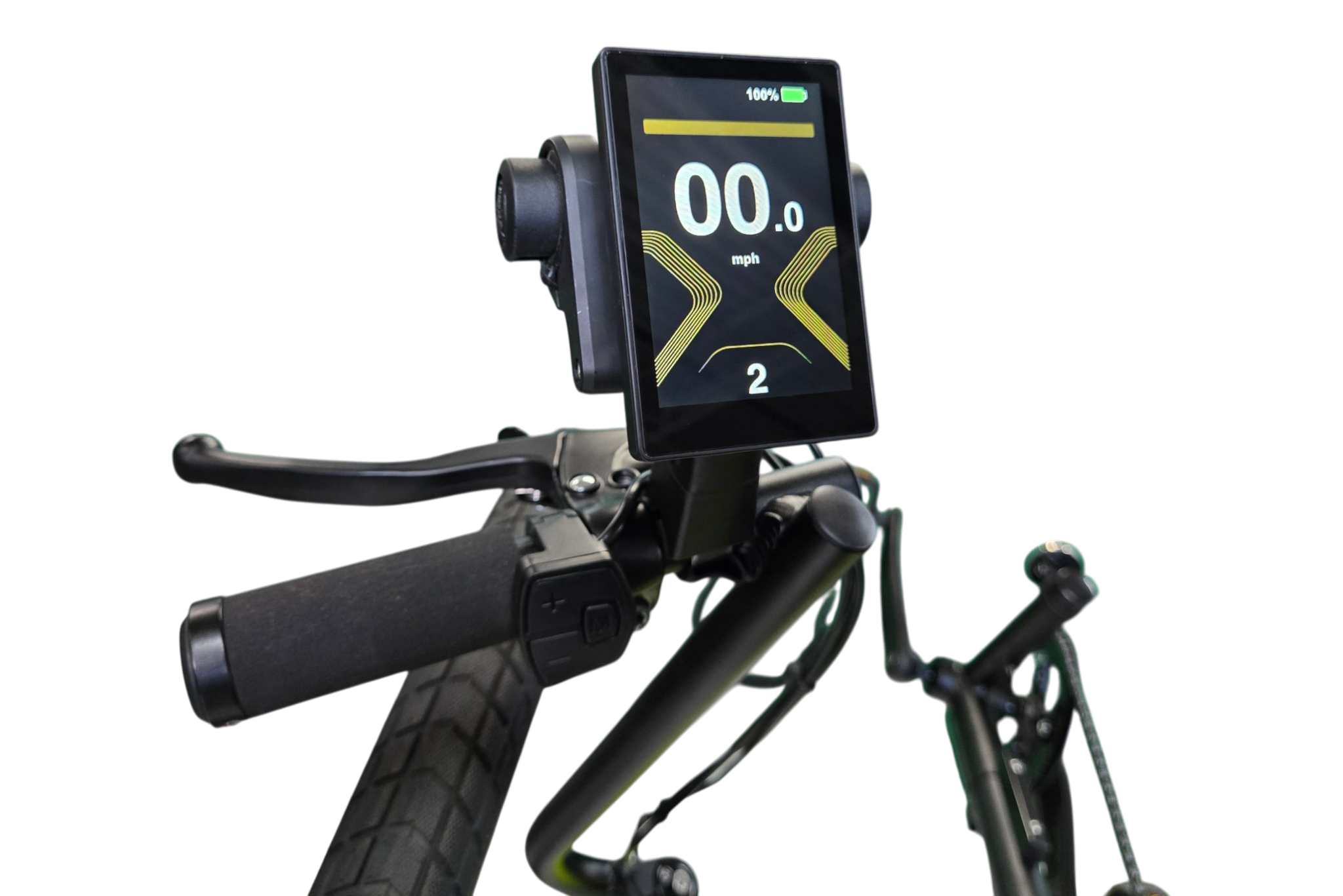

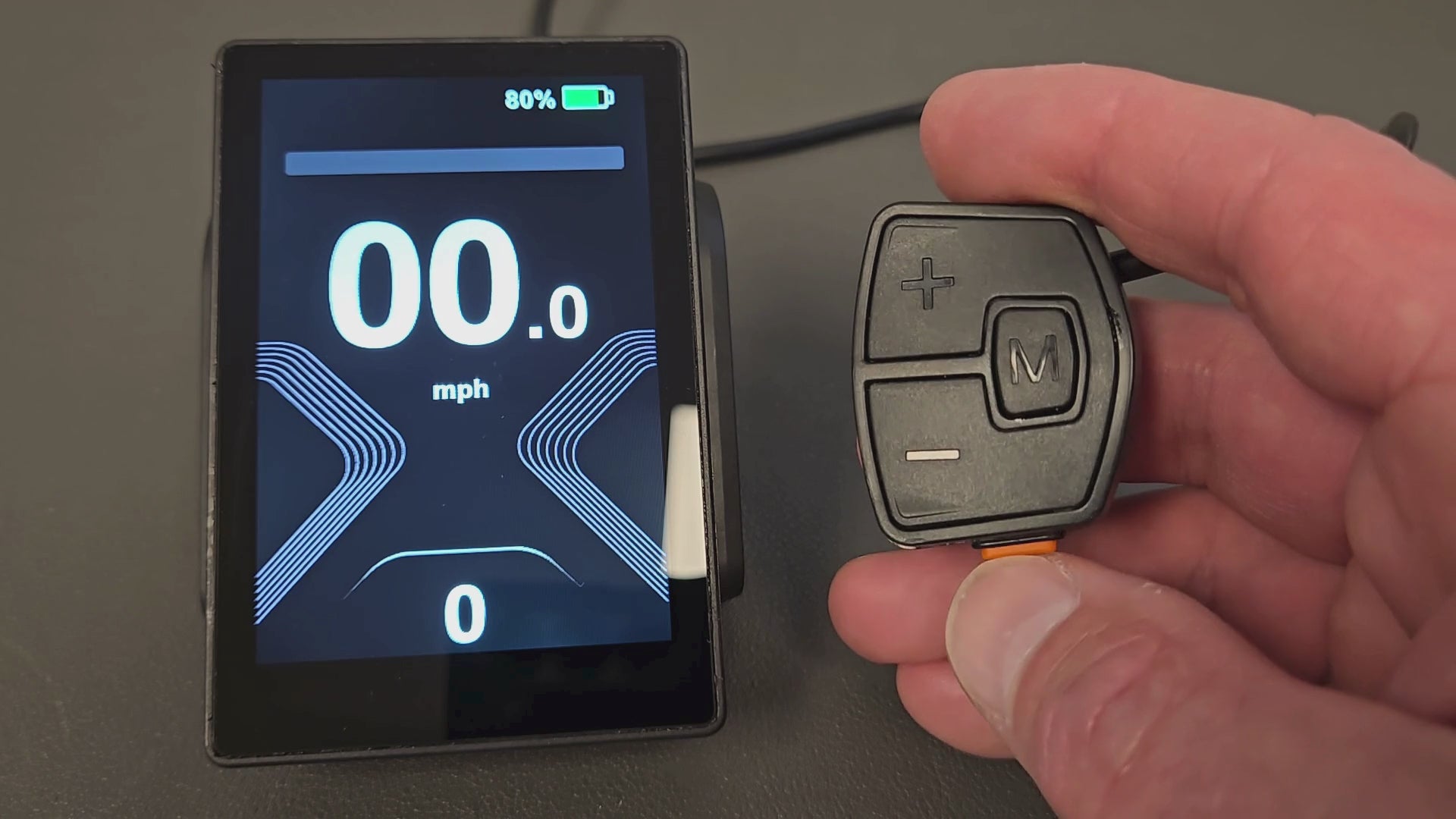

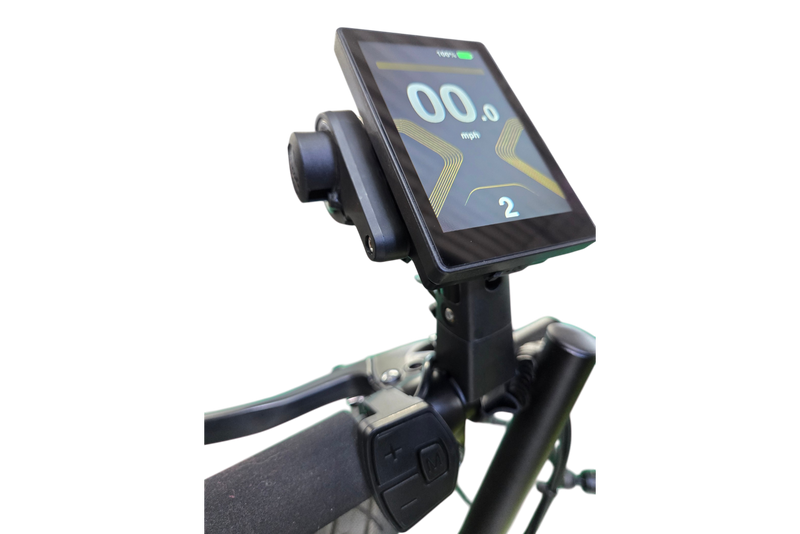

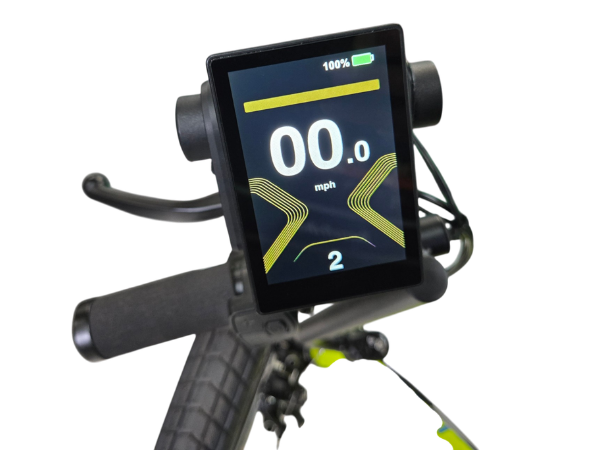

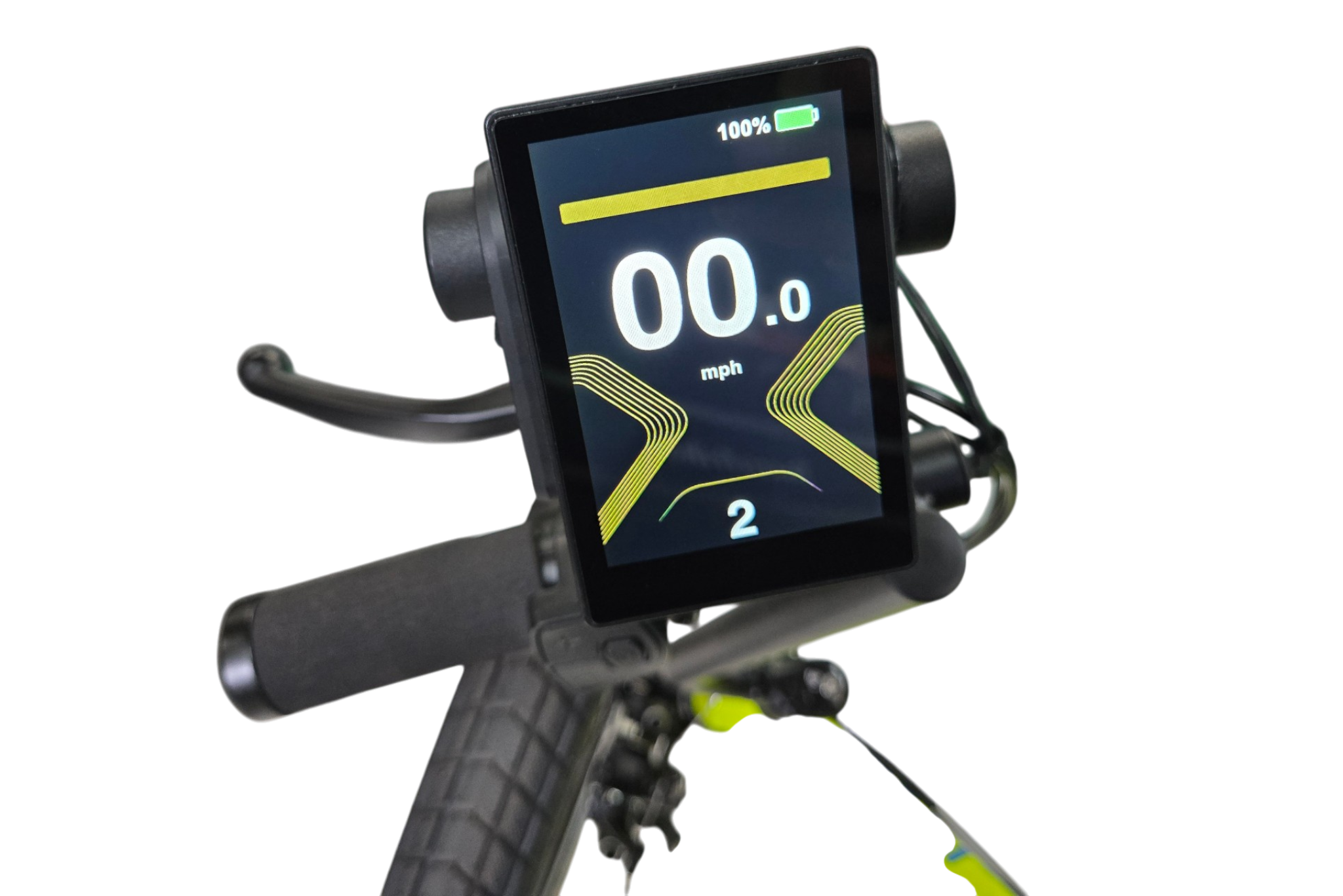

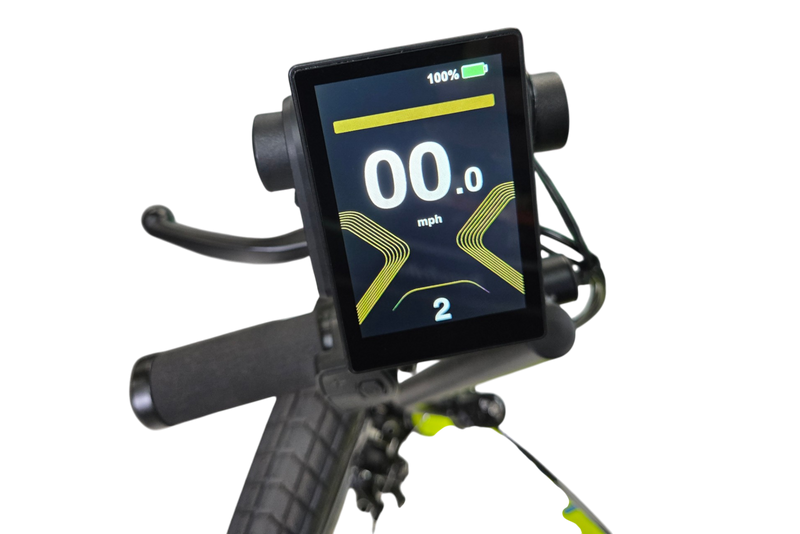

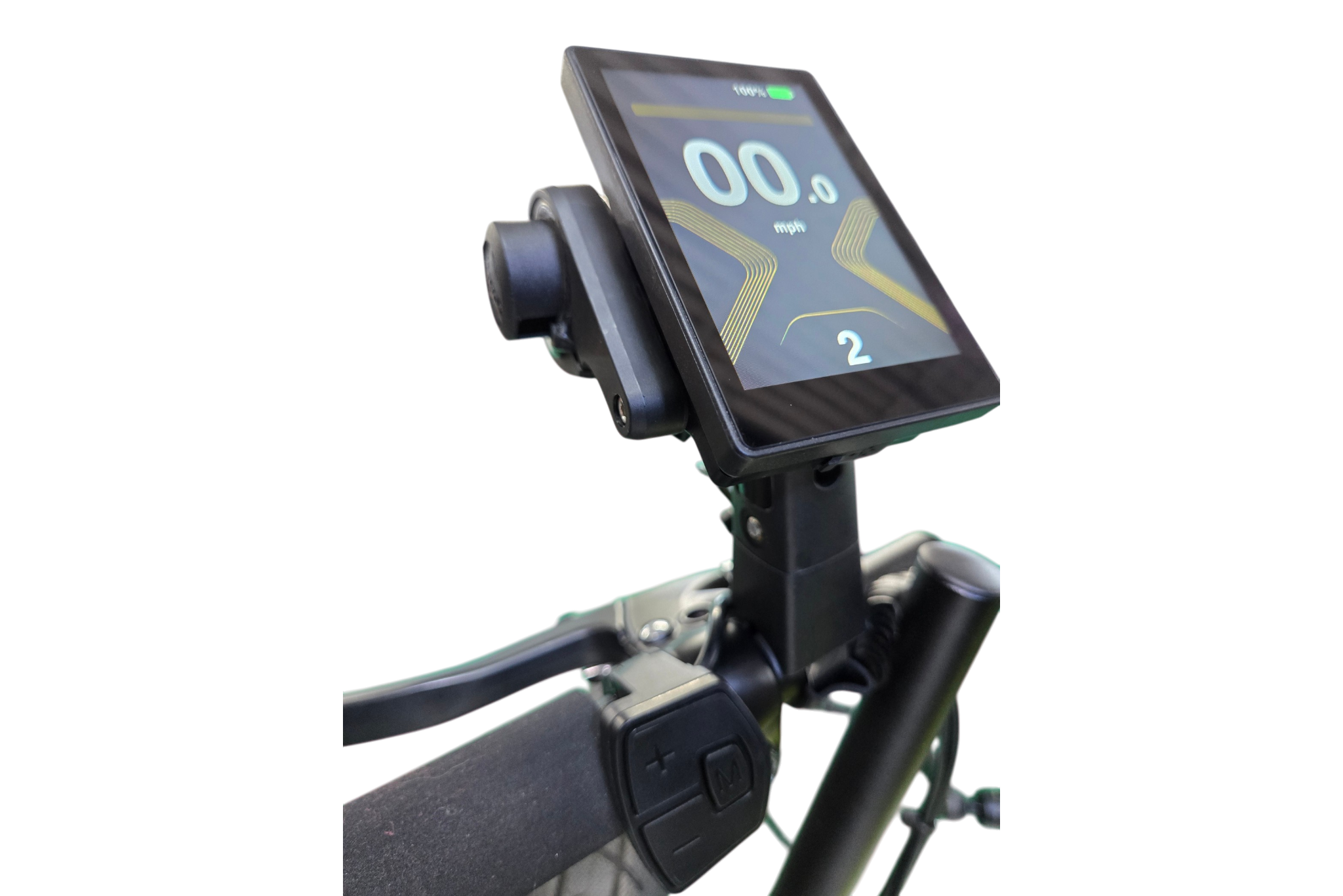

Display
SINET™ LCD Display with Voltage Readout, Battery Meter, Trip Functions, and 3 Display Screens
Colors
Green, Blue, and Red
Intended Use
Neighborhood, Cruising, Paved Path, Rail Trails, and Urban

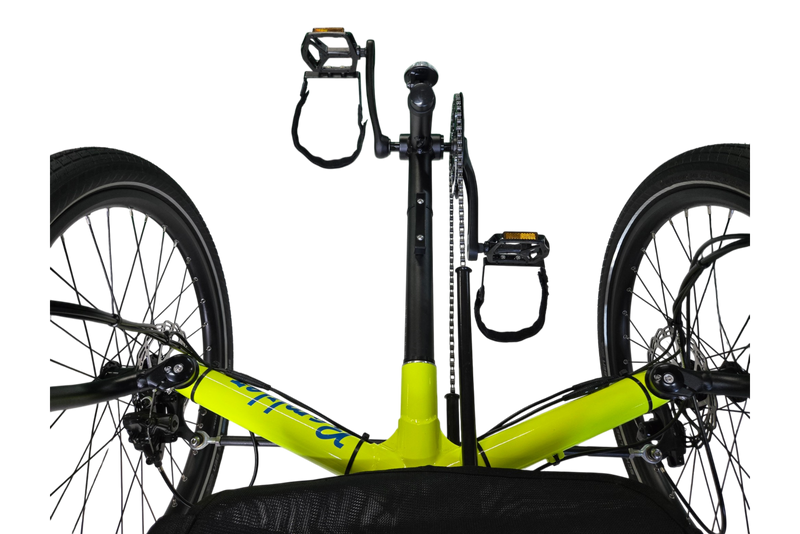

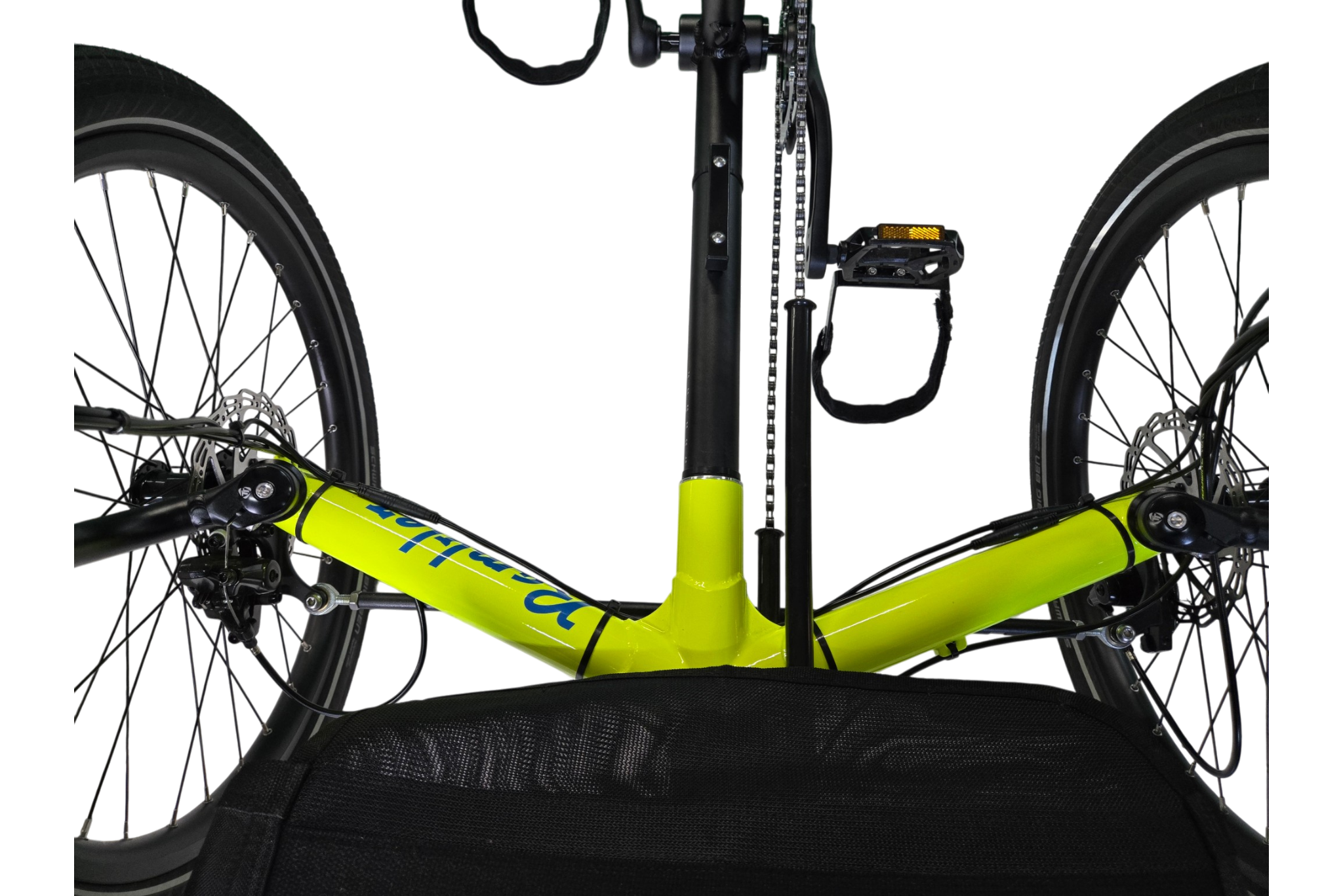

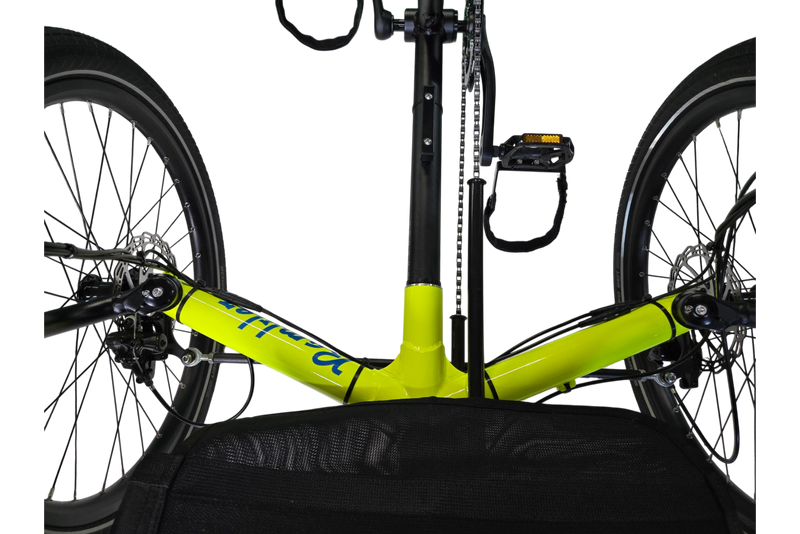

Frame Material
4130 Chromoly TIG-Welded Steel
Fork Details
High Tensile Steel, Rigid
Suspension
None
Rims
24 inch Alloy, 36-Hole Double-Wall

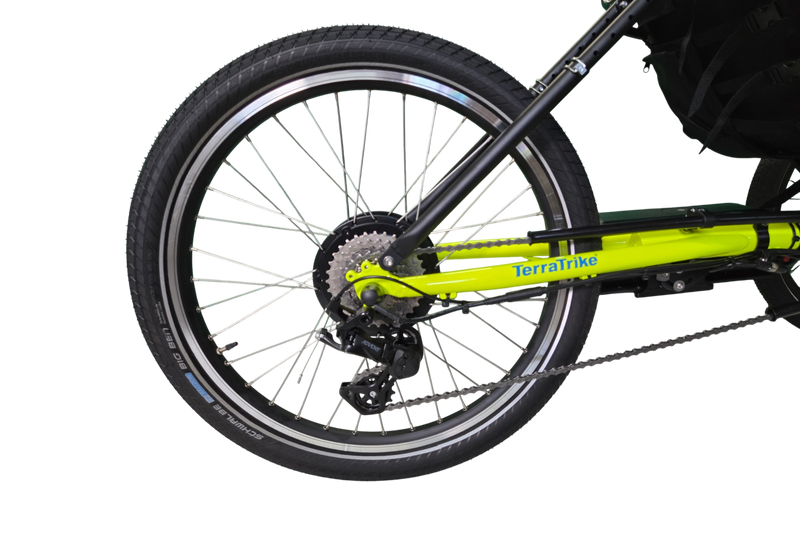

Spokes
(F) 14 Gauge, Stainless Steel / (R) 12 Gauge, Single-Butted, Stainless Steel

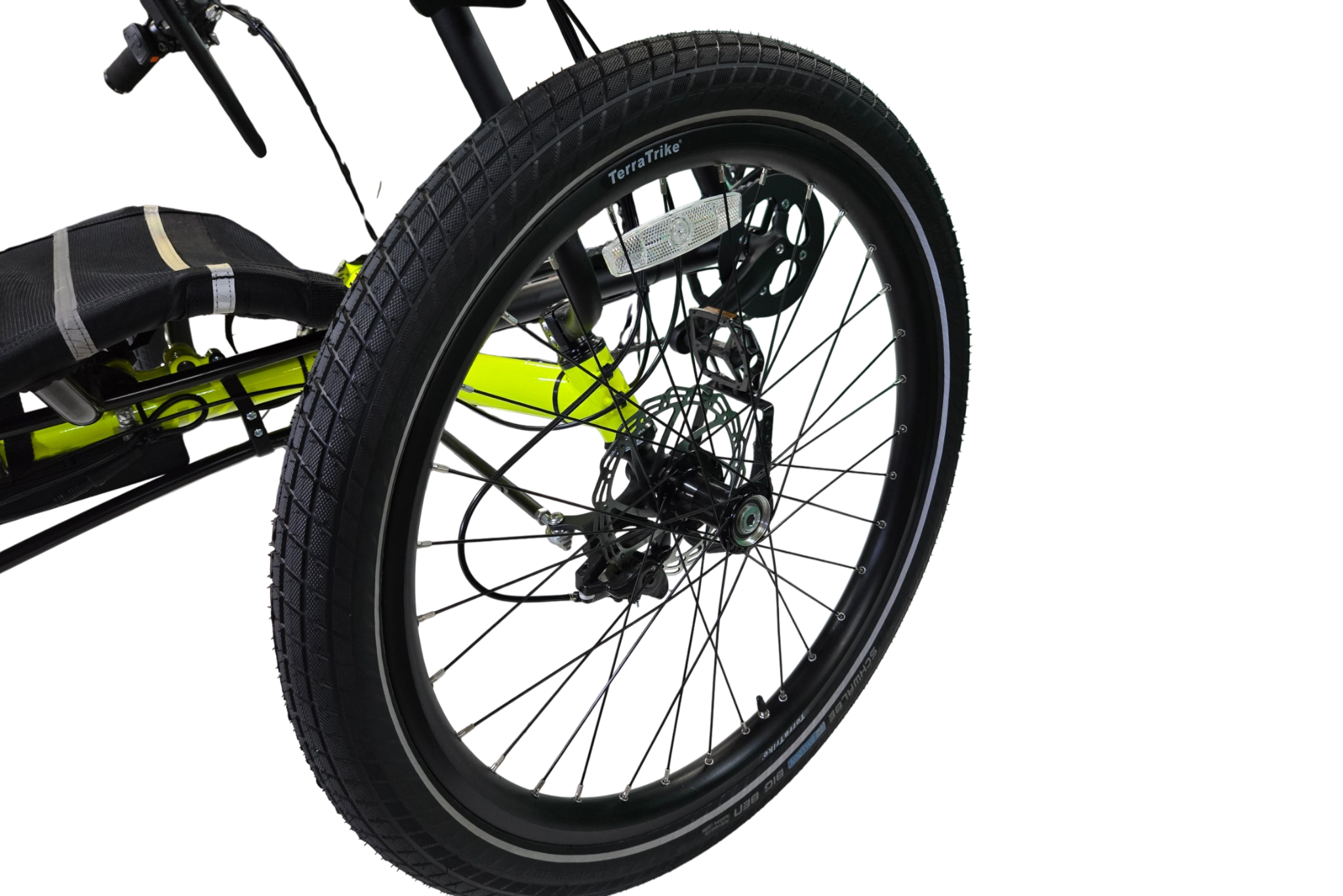

Tires
24in x 1.75in Tires

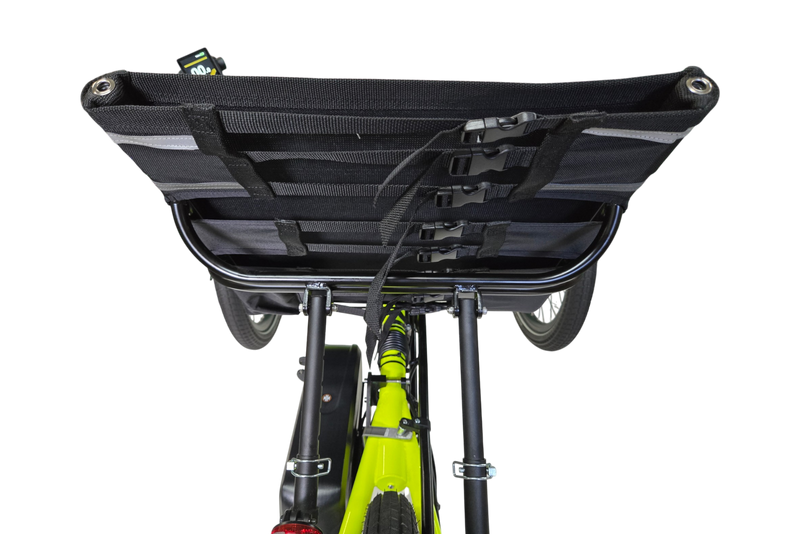

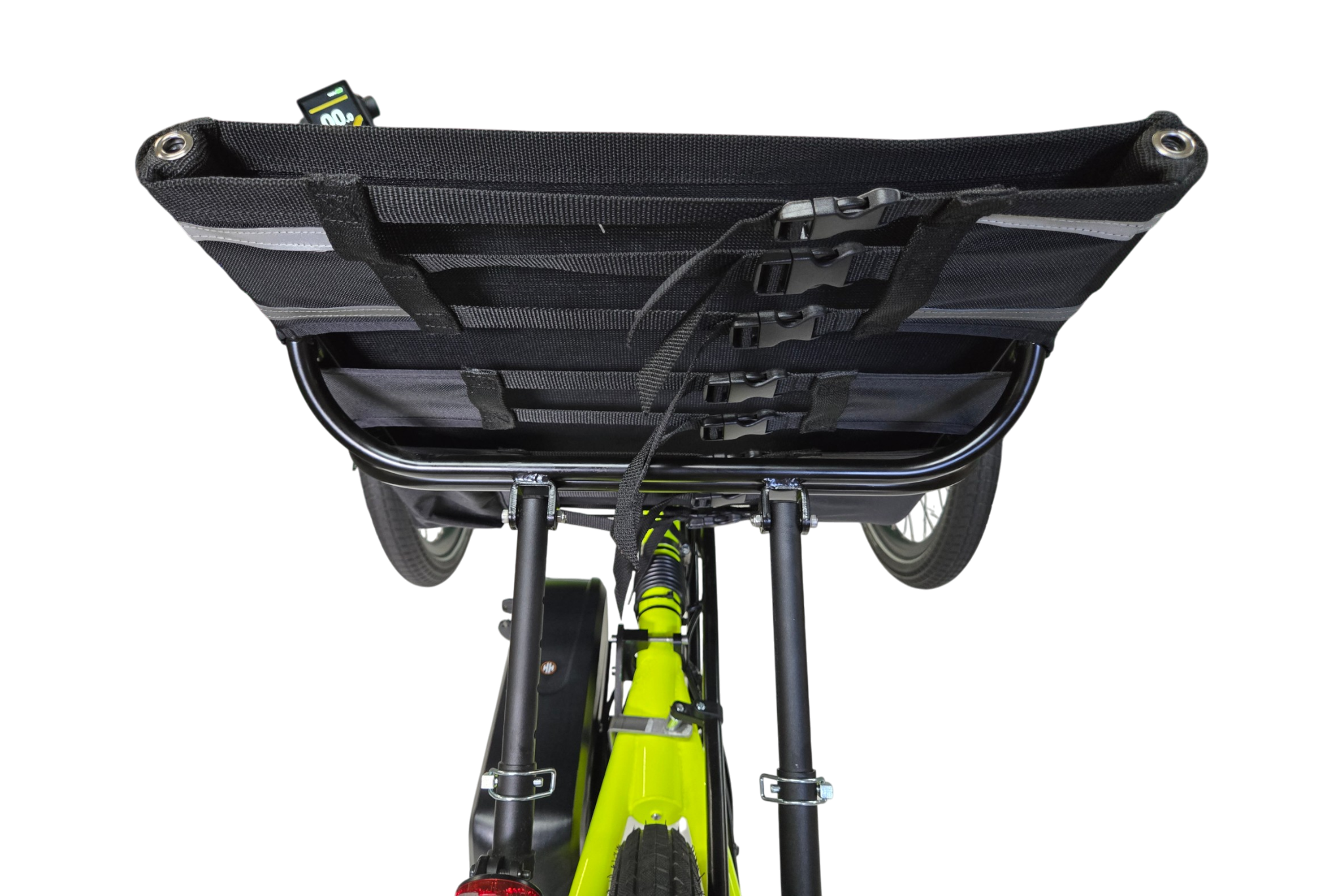

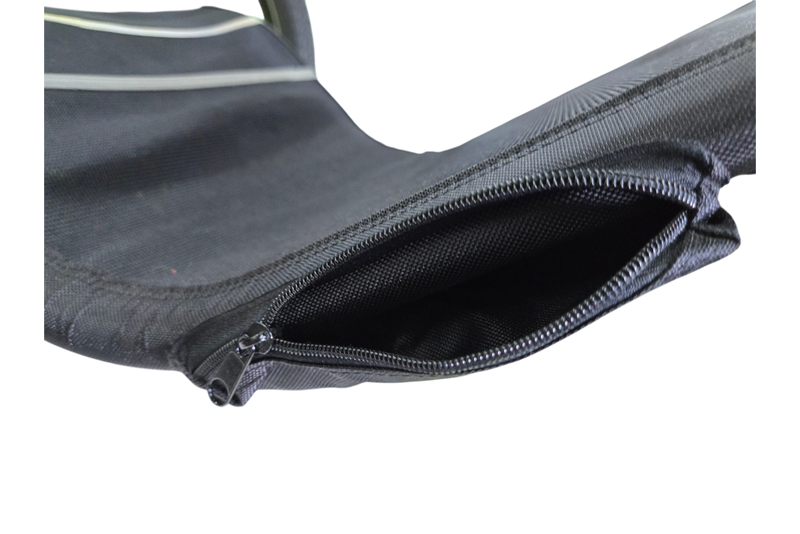

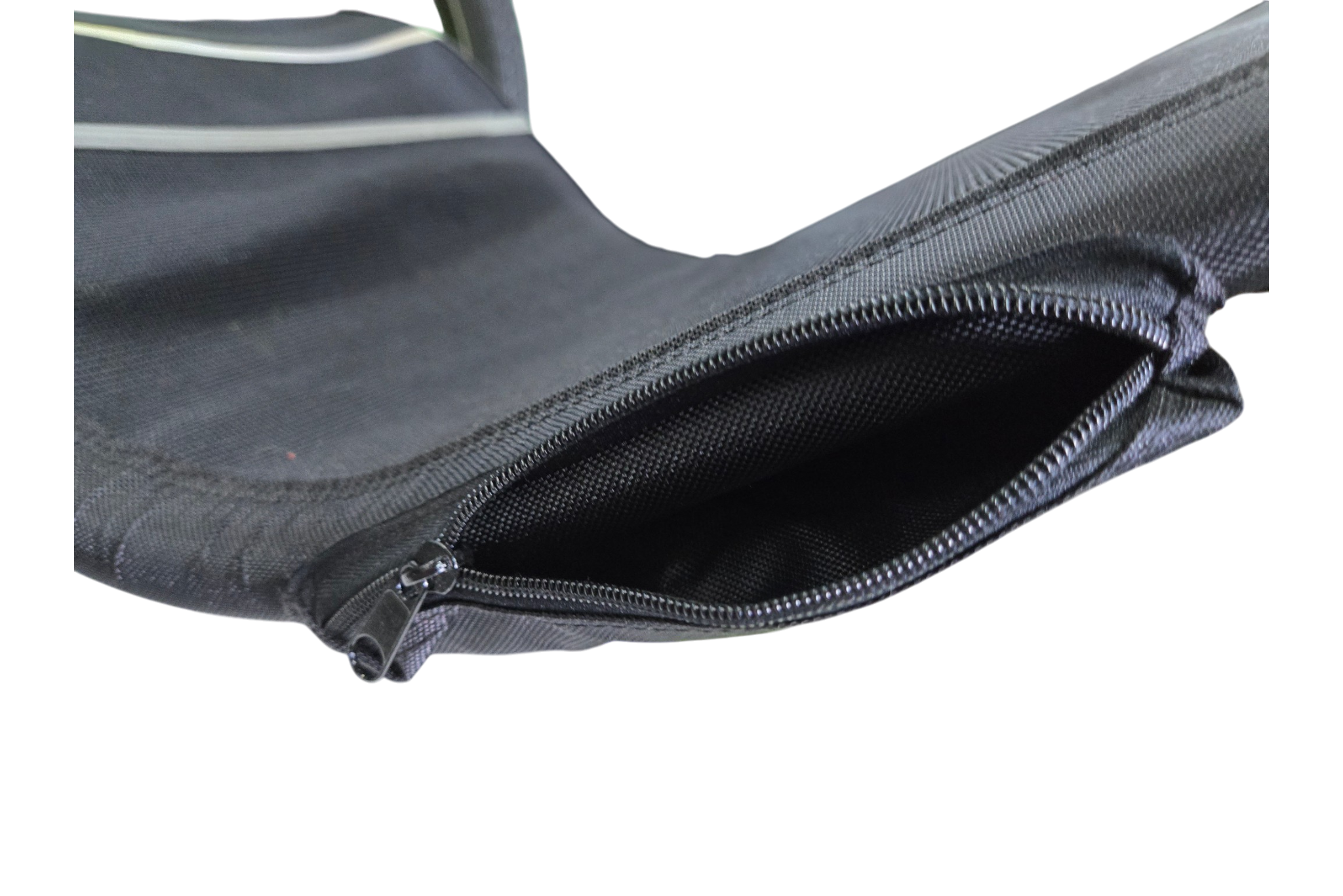

Saddle
TerraTrike Adjustable Mesh Seat

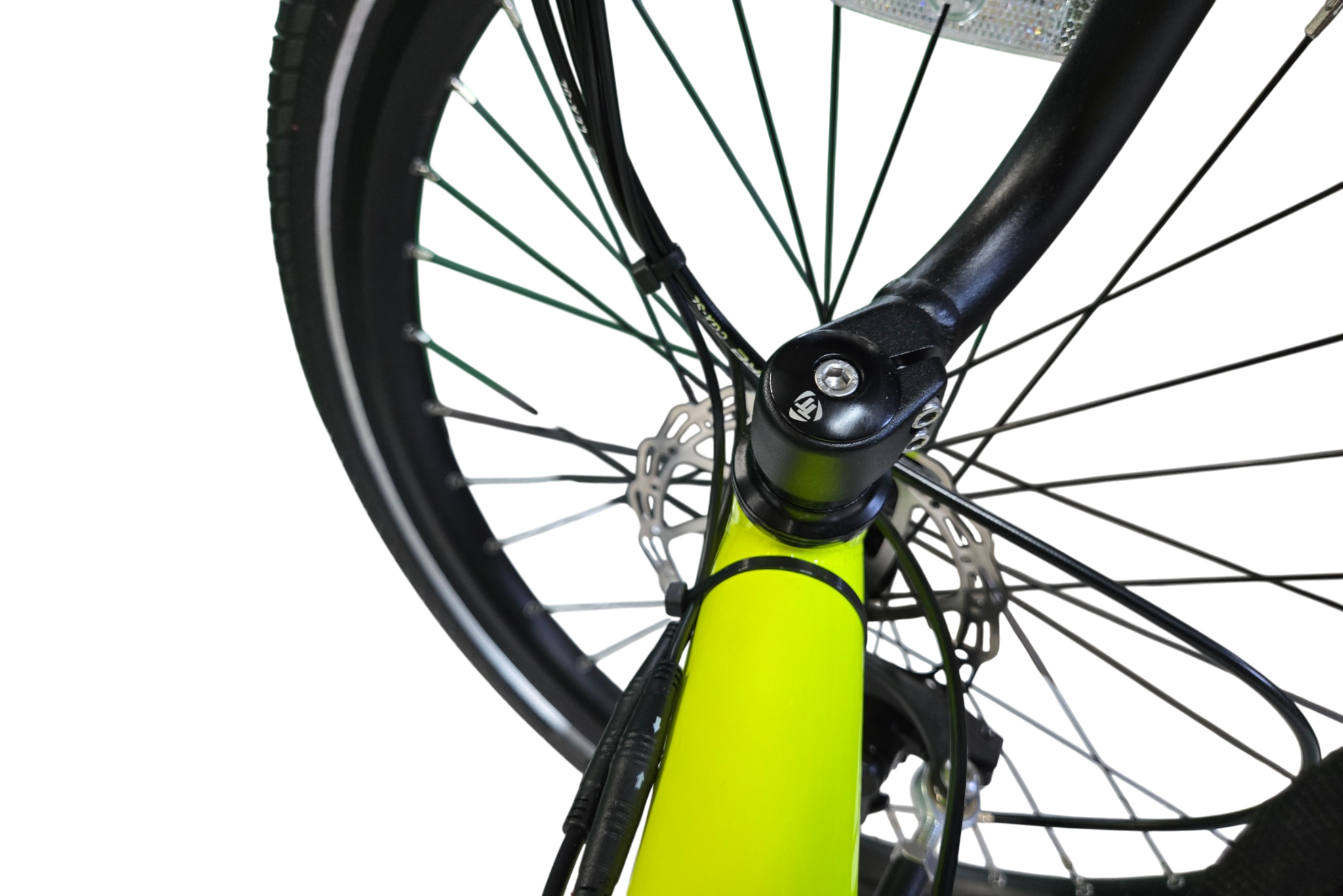

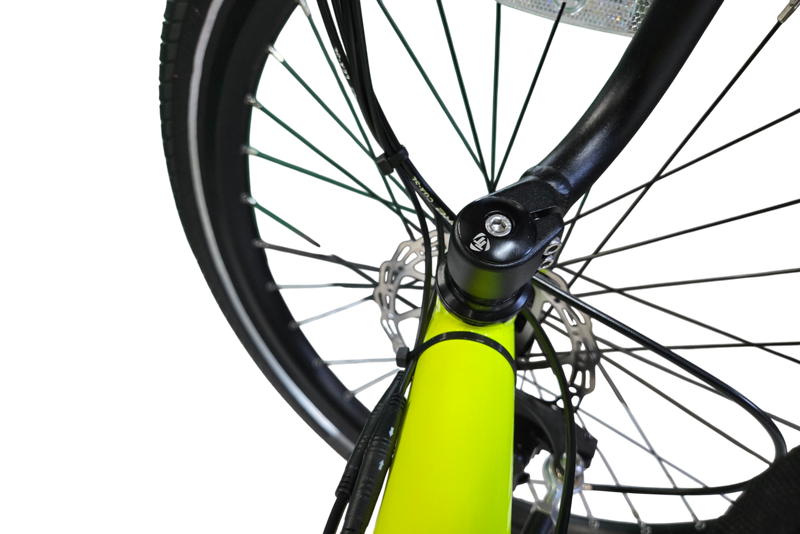

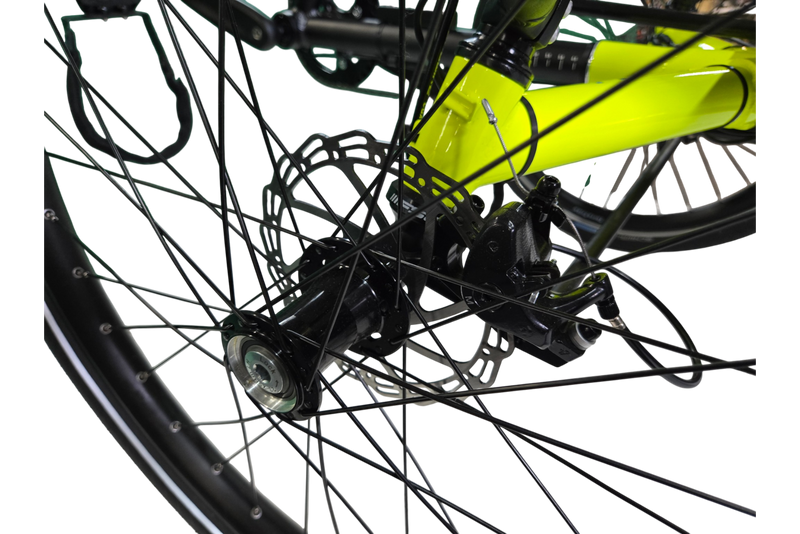

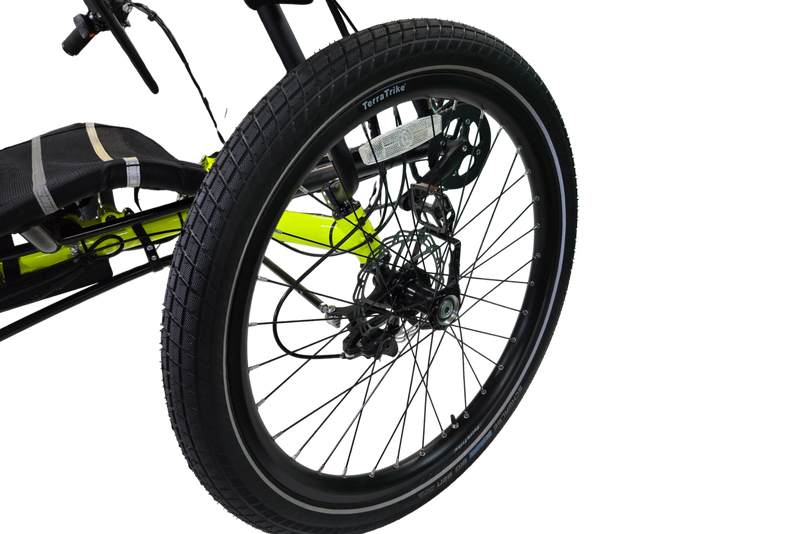

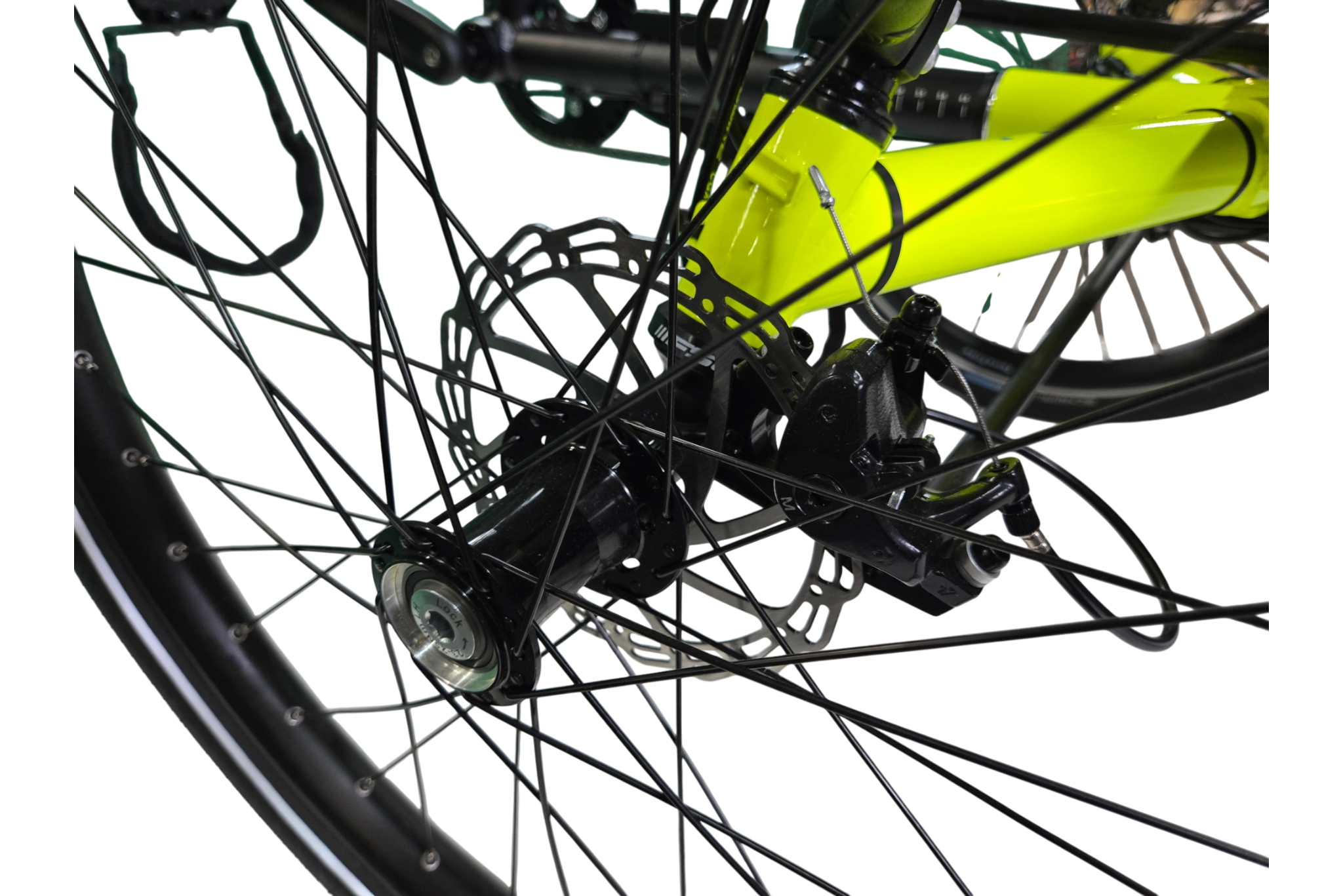

Brakes
(F) Mechanical Disc Brakes w/ 160mm Rotors

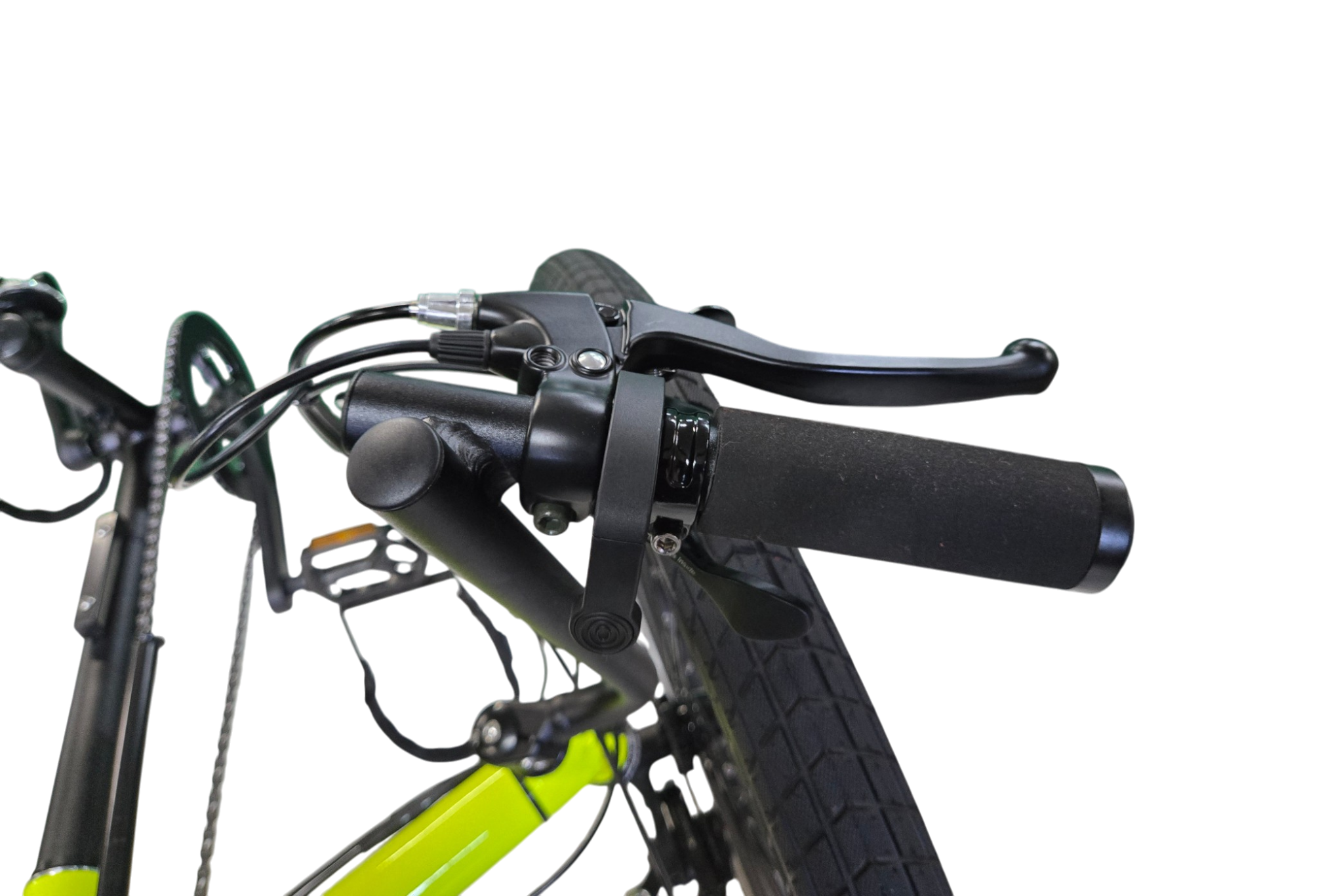

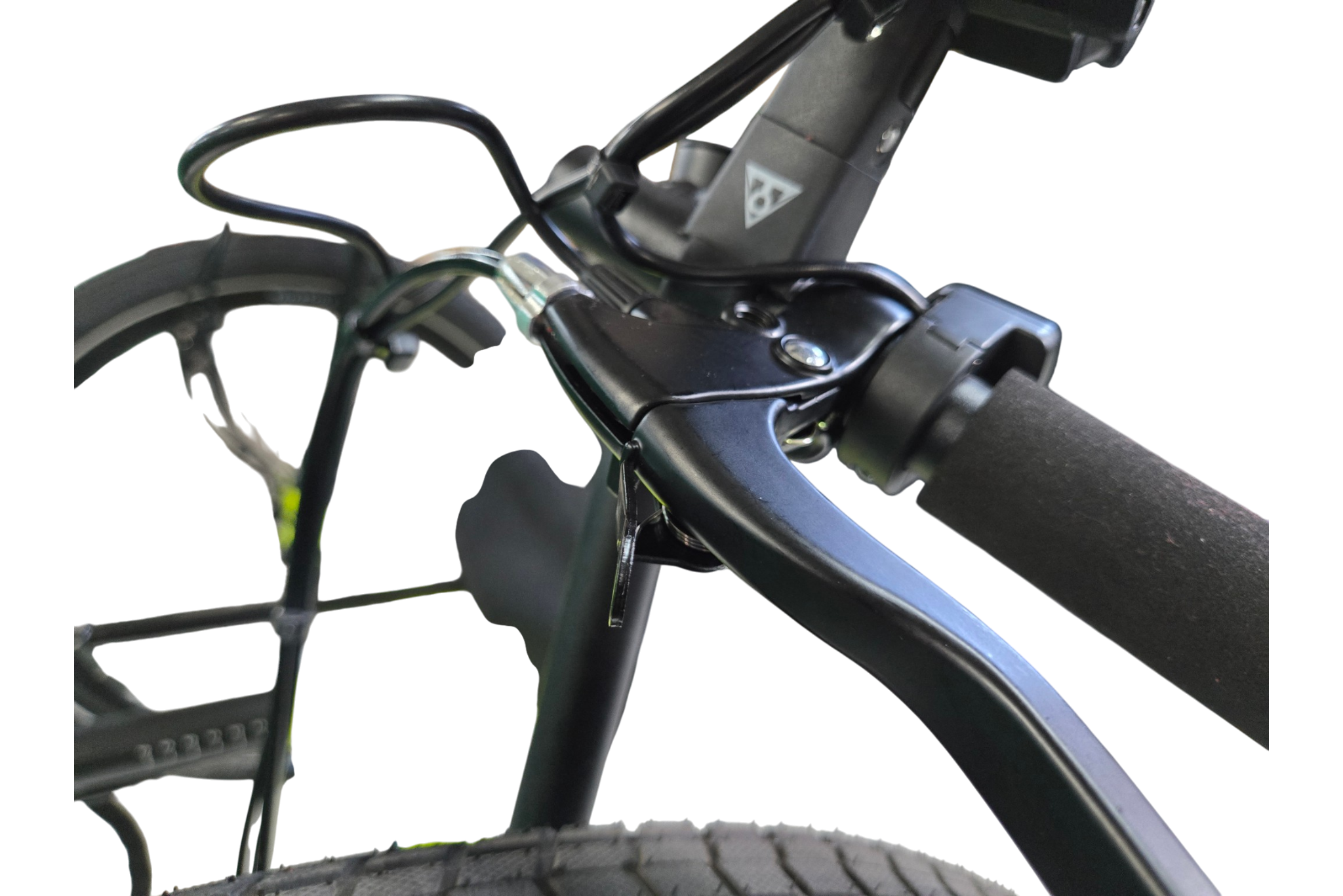

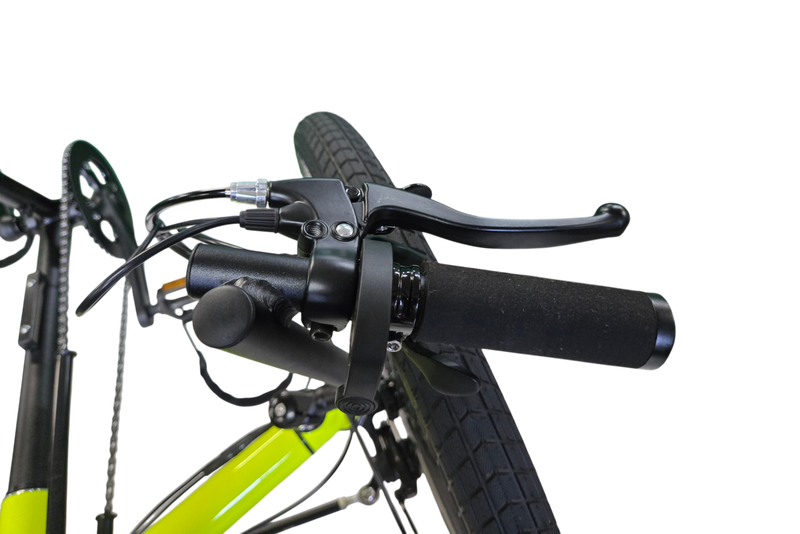

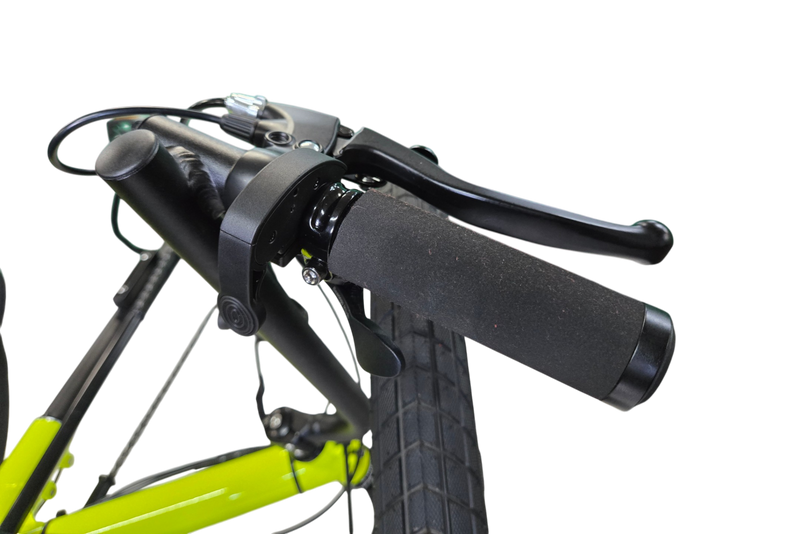

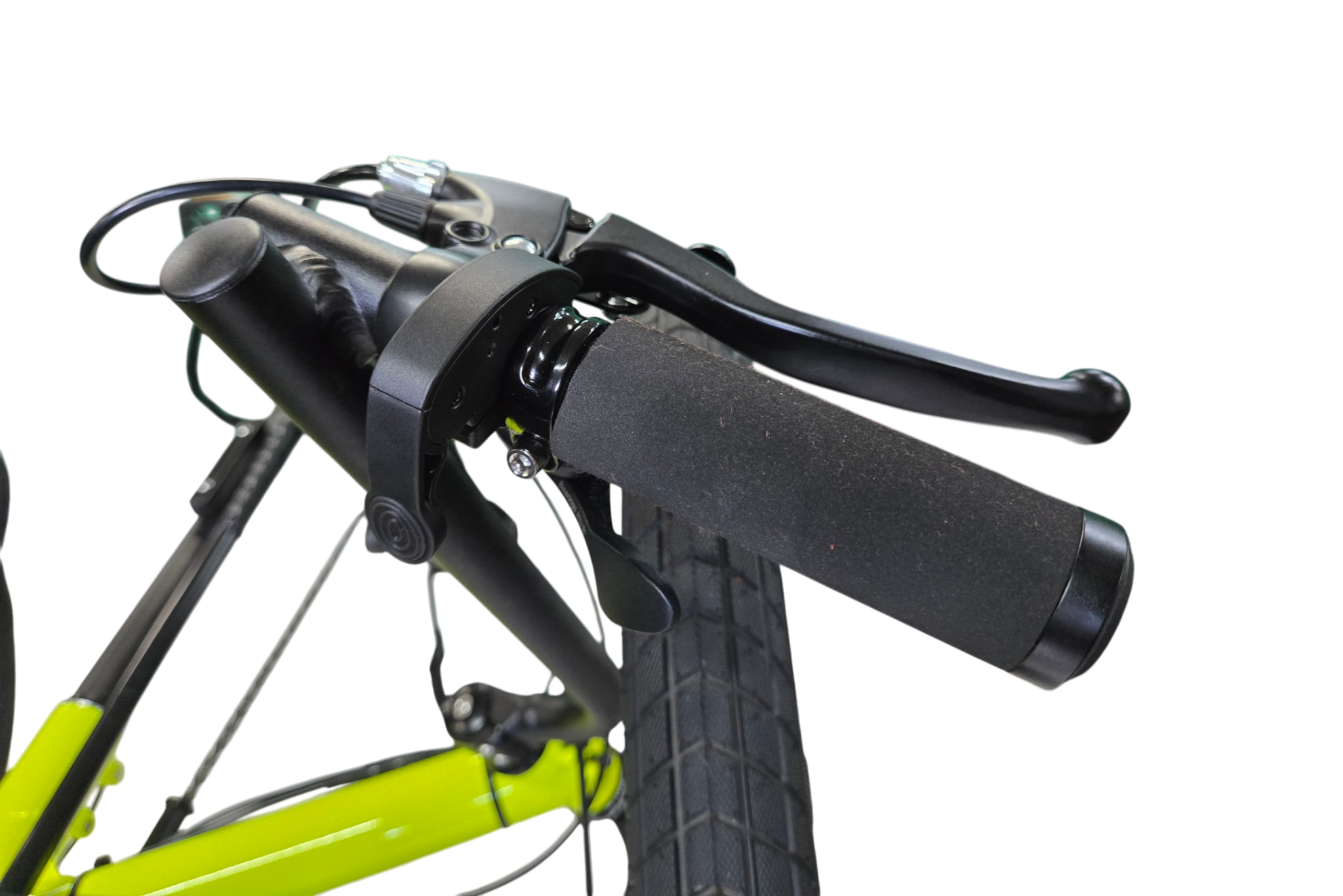

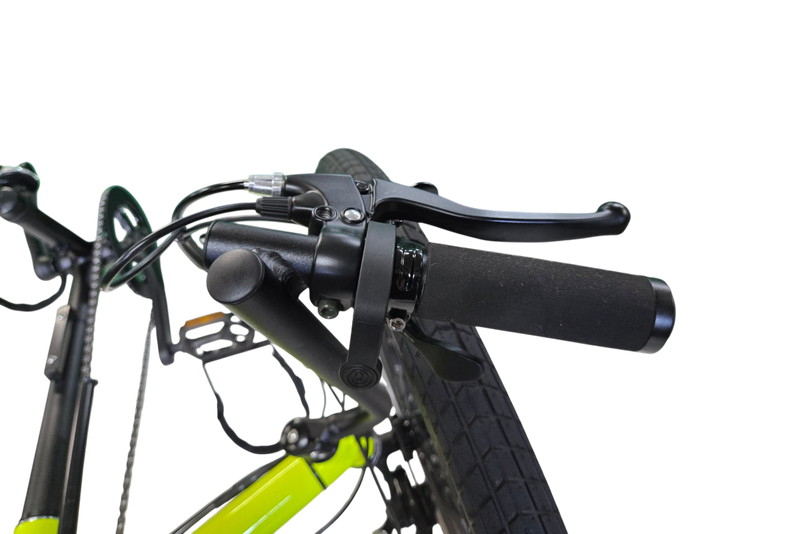

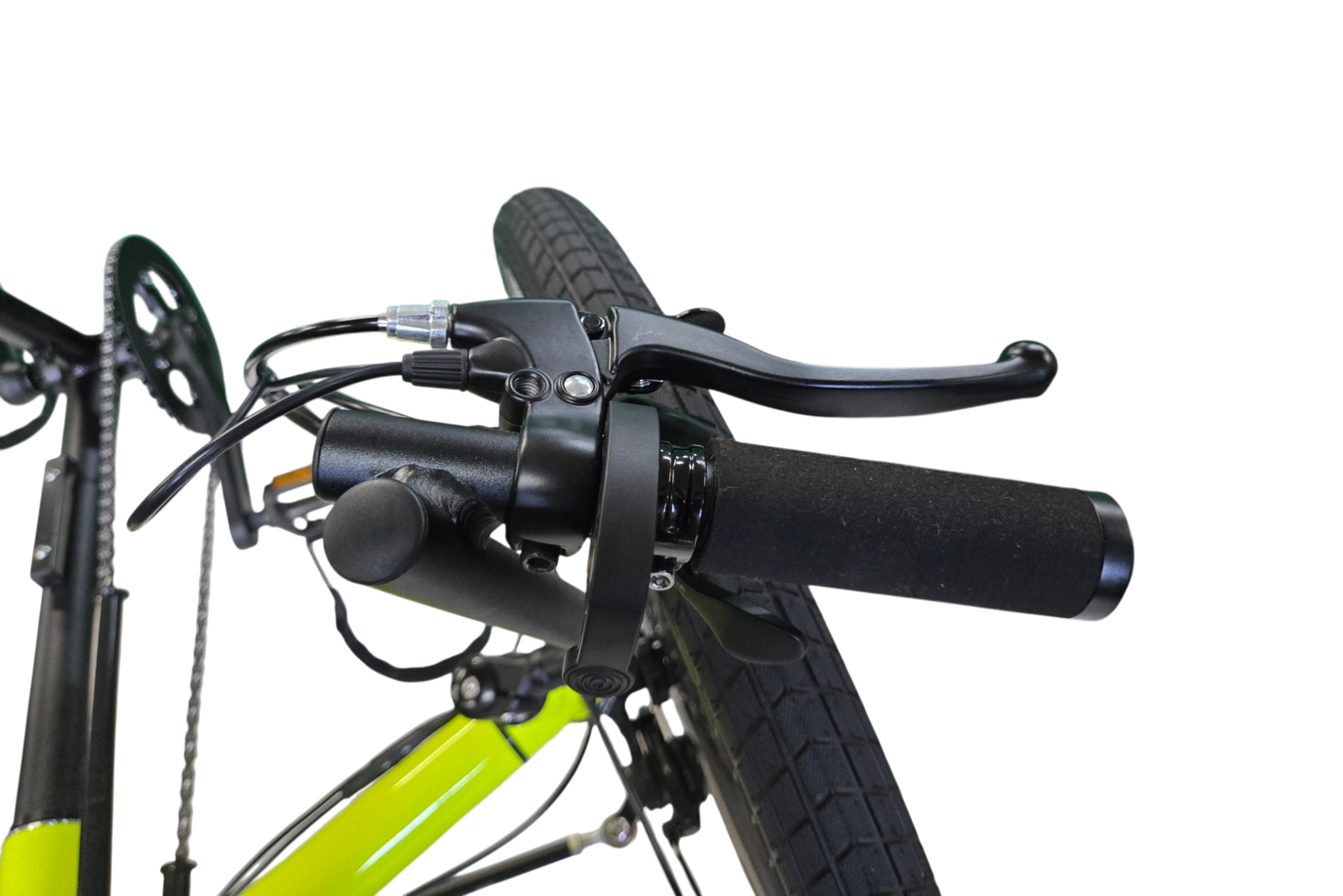

Brake Lever
Includes E-Brake Shutoff and Parking Lock, One Lever for Each Front Wheel
