Highlights

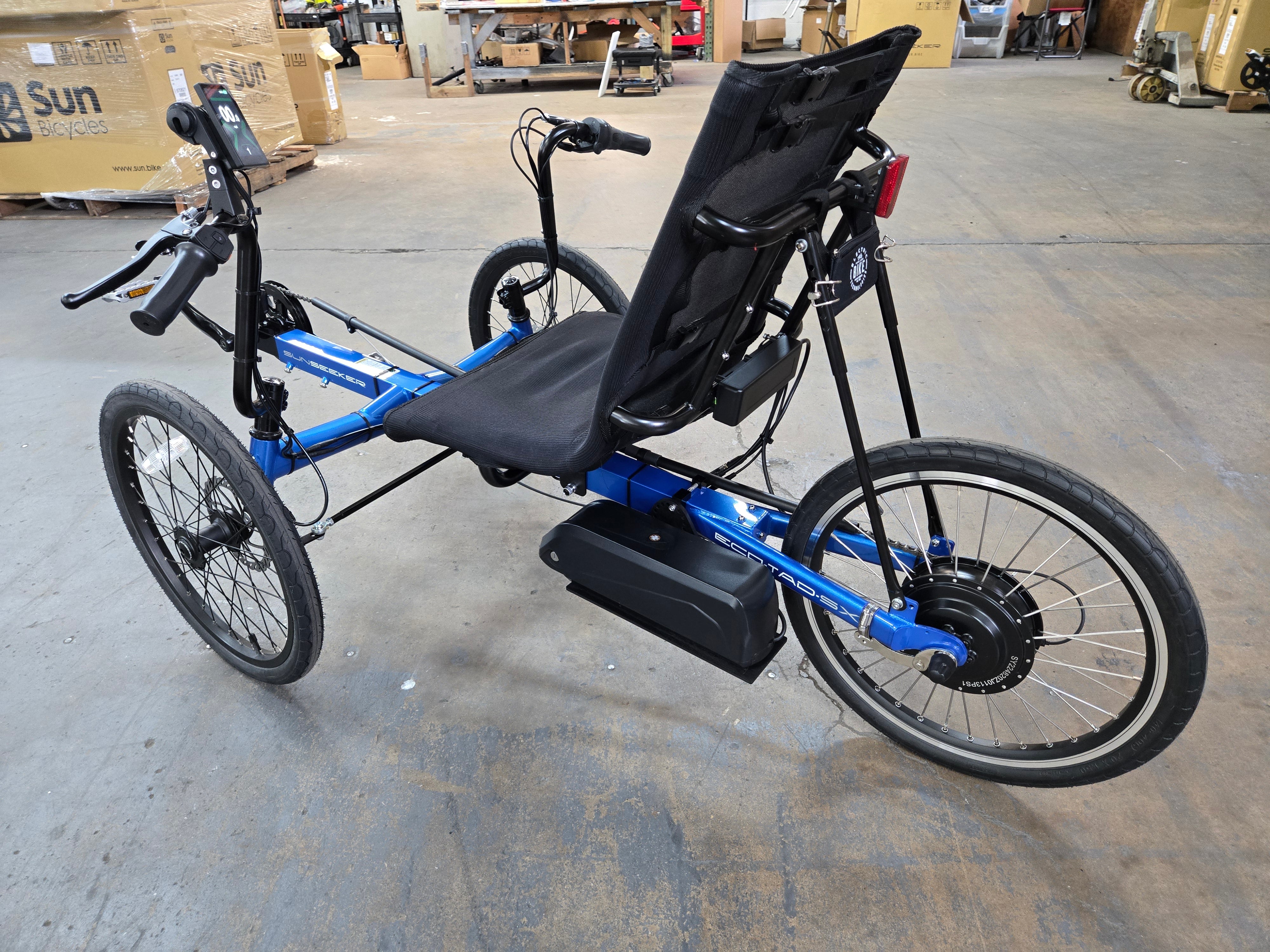

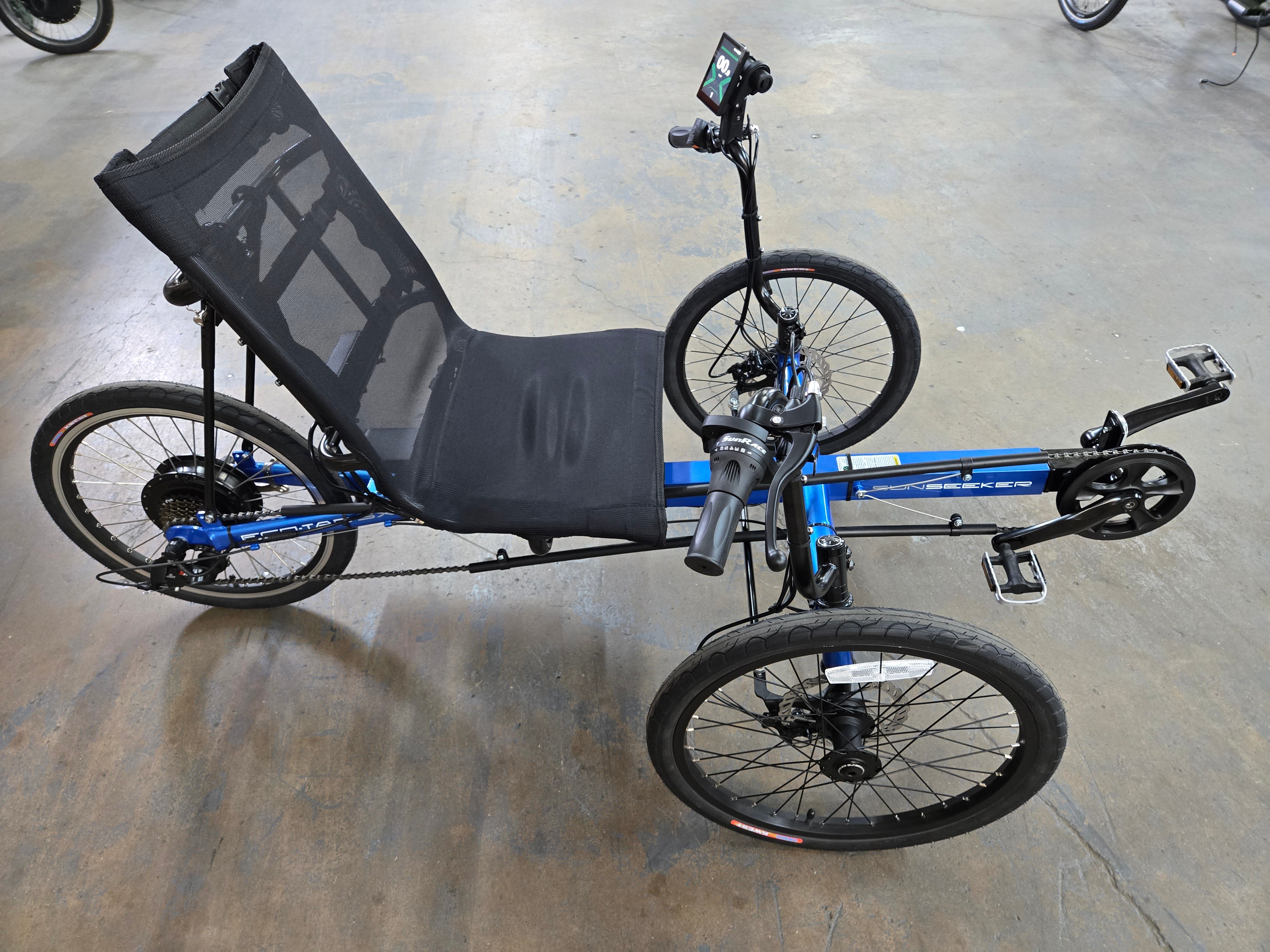

The electric Eco-Tad SX is the most affordable Sun Tadpole trike. It has a straightforward design and delivers comfort and features that exceed its lower price point.

The Eco-Tad has direct steering, a mesh and padded seat for comfort, a powerful 1000 watts of peak power, 26 mph top speed, and plenty of torque to help power your ride. Fenders are also an excellent option for this electric recumbent trike.

Most Affordable Tadpole
Mesh Padded Seat
Simple 1x7 Gearing
Horizontal Handlebars

Comfortable Handlebars

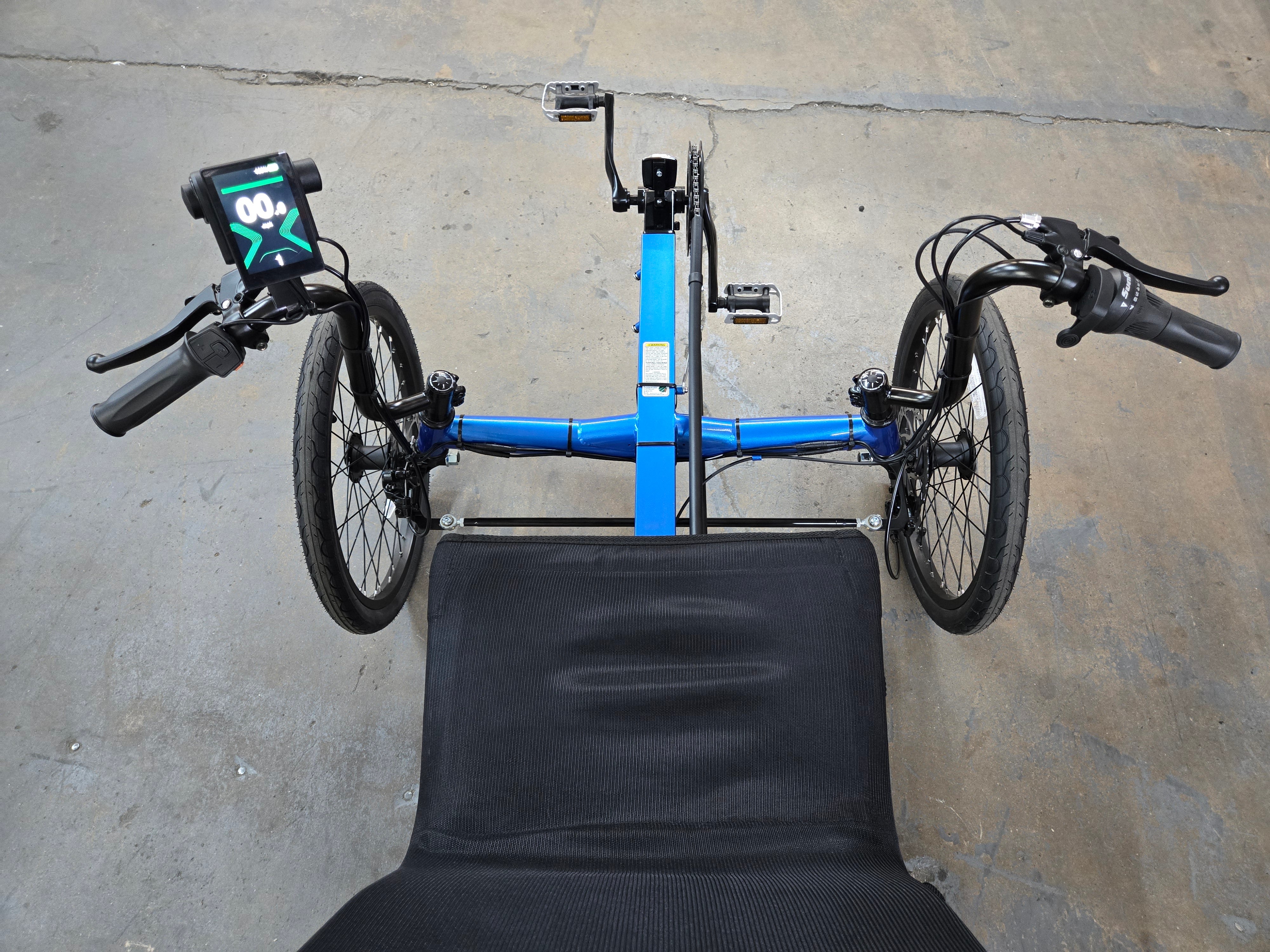

The Electric Eco-Tad features comfortable direct-steering handlebars. This allows for a familiar, natural hand position with higher handlebars than some recumbents.

Dual Disc Brake

The Electric Eco-Tad features independently controlled dual front disc brakes – this gives safe, long-lasting brake performance.

Easy-To-Read Segment Display

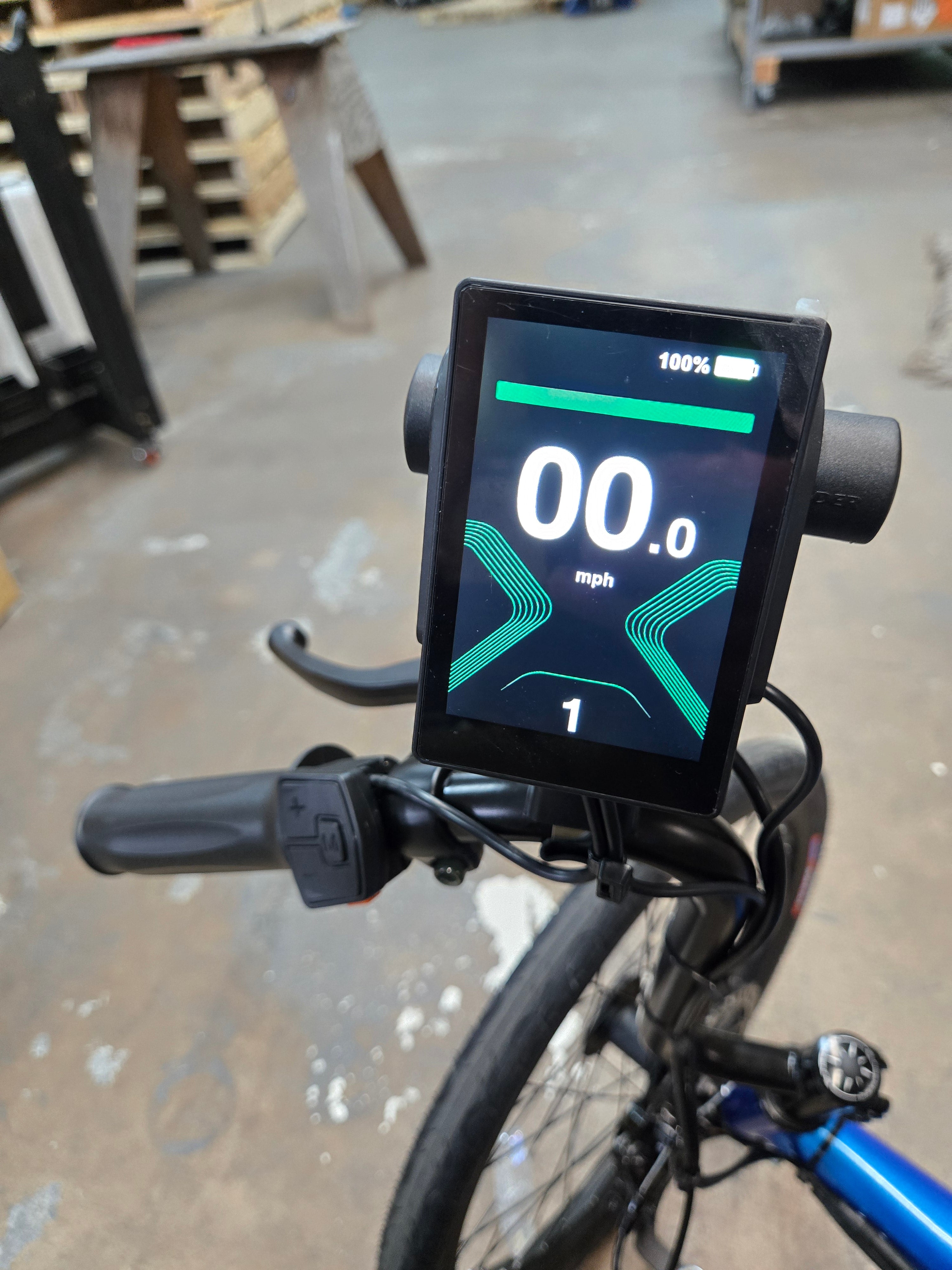

The Electric Eco-Tad features an easy-to-read backlit display with large text on an articulating mount. This advanced segment color LCD includes a battery meter, speed and trip distance readout, and a programmable top speed limit.

Simple 1x7 Gearing

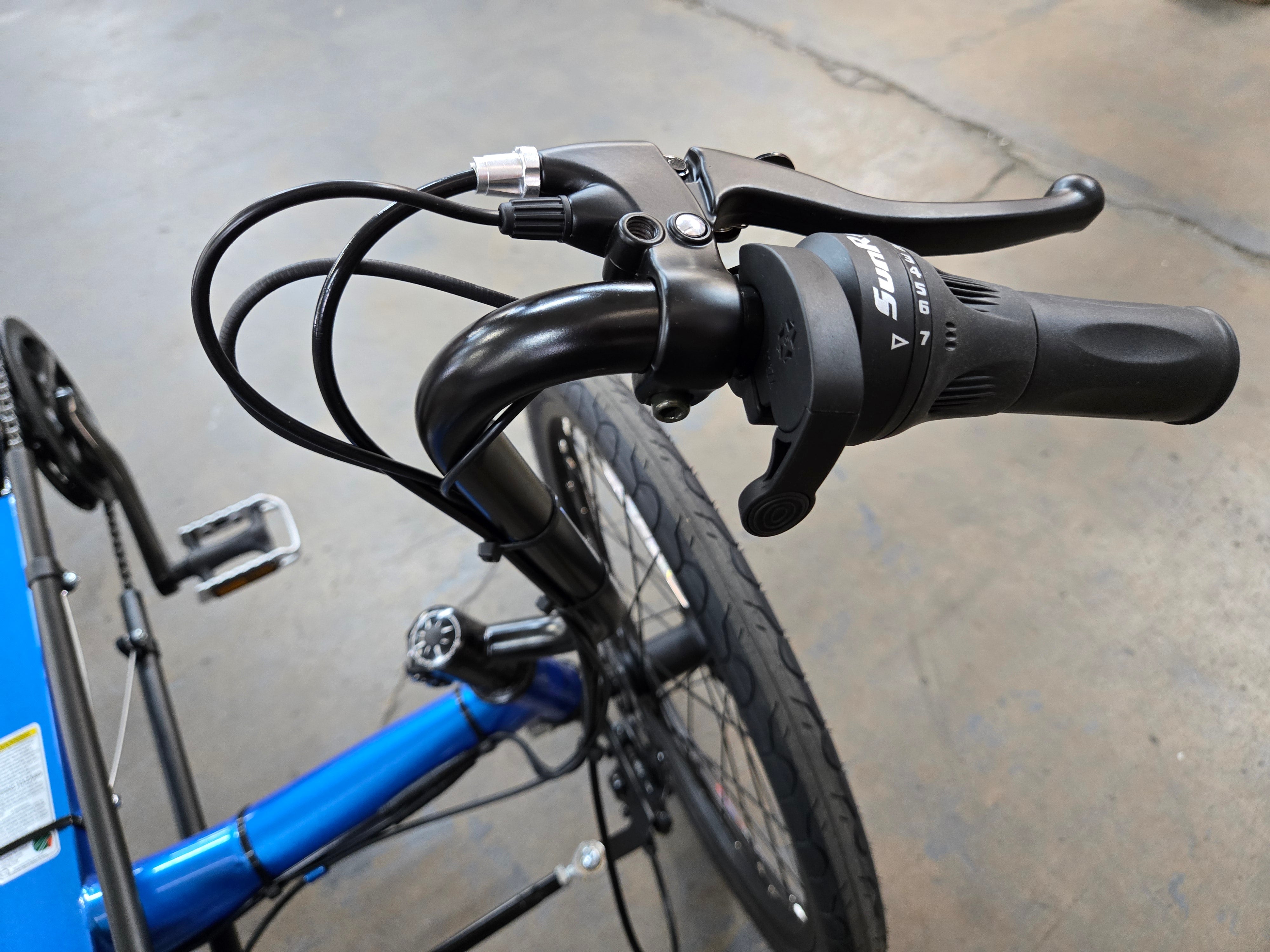

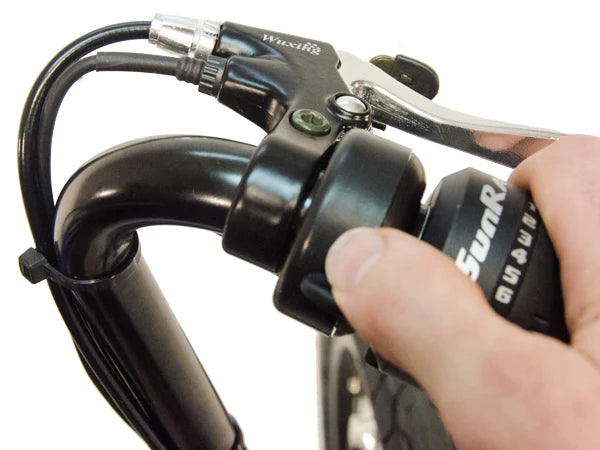

Even if it's been a while since you rode a bike, you'll appreciate the Eco-Tad's simple 1x7 gearing. This system means every gear you need is available at the click of the wrist. No need to worry about double shifting or gear combinations!

500-1000 Watt Geared Hub Motor

The 500-1000w E-BikeKit rear geared hub motor features impressive 84Nm torque and a USA hand built wheel with single-butted 12-13 gauge spokes for durability.

Throttle-On-Demand

The easy-to-use thumb throttle allows you to engage the motor whenever you need it. Use the throttle to get a boost when starting from a stop or to help get up to cruising speed. The Eco-Tad also features a pedal-assist sensor (PAS) for operation.

Electric Eco-Tad SX with Fenders

LCD Instructions

Electric Eco-Tad SX - Sizing

A: Handlebar Rise

15 Inches

B: Standover Height

15 Inches

C: Seat Length to Pedal

30-44 Inches

D: Seat Height to Ground

12 Inches

Recommended Rider Height

5ft - 6ft 4in

Top Speed

26 Mph (w/ Programmable Limit)

Range

15-45 Miles

Motor

E-BikeKit Rear Geared 500-1,000 Watts, 84N-m, 320 RPM (48v)

Motor Weight

9.4 lbs

Battery

48v15Ah

Max Payload

300 lbs (Including rider and cargo)

Charge Time

5 Hours (From 0-100%)

Charger

48v 3Amp

Colors

Blue, Red, and Navy

Intended Use

Neighborhood, Cruising, Paved Path, and Urban

Drive Mode

Throttle-on-Demand, Pedal-Assist, 5-Level Speed Control, Programmable Speed, Current Limit, and Assist Level

Frame Material

High Tensile Tig Welded Steel

Fork Details

High Tensile Steel, Rigid

Suspension

None

Rims

20 inch Alloy, 36-Hole Doubled-Wall w/ Eyelets

Spokes

(F) 14 Gauge, Stainless Steel / (R) 12 Gauge, Single-Butted, Stainless Steel

Tires

Kenda Kwest, 20in x 1.50in at 40-65 PSI. (Ships at 55 PSI)

Saddle

Steel Frame 1pc, Sunlite Padded/Mesh Back w/ Bottle Braze-on

Brakes

(F) ProMax Mechanical Disc Brakes w/ 160mm Rotors

Brake Lever

Includes E-brake Shutoff and Parking Lock, One Lever for Each Front Wheel

Handlebar

Chromoly Steel w/ 22.5mm Diameter / w/ Bottle Braze-ons

Grips

EVA Rubber Grips

Shifter

SunRace GripShift

Display

Color LCD

Front Derailleur

None

Rear Derailleur

SunRace RD-M37

Cranks

Single Alloy, 170mm Length w/ 38t Chainring

Chain Guard

None

Pedals

Wellgo R199, Alloy Cage

Gearing

Shimano 7-Speed (1x7) / 14-28t Freewheel

Lights

None

Fenders

Optional: Front and Rear Set, Black High Impact Plastic w/ Stainless Steel Stays

Basket

Optional: Steel, Black Vinyl Coated: 16.5in Long x 13.5in Wide x 9in High

X-Seam Range

29-49 Inches (Smaller sizes may require modifications)

Wheelbase

37.5 Inches

Max Width

34 Inches

Overall Length

70.5 - 78.75 Inches (Depends on rider's X-Seam set-up)

Ground Clearance

10 Inches (From the bottom of the steering linkage to the ground)

Overall Weight

75 lbs

Turning Radius

Approx. 6ft

Nominal Voltage

48v

Nominal Capacity

15ah

Battery Energy

720Wh

Dimensions

14"x3.5"x5"

Total Weight

10lbs 2oz

Cell Assembly

18650-3.6v-13S

Life Cycles

>= 80% Dod = 500 Cycles

Max Continuous Discharge

22.5A

BMS Protection Current

30A

Discharge Cut-Off Voltage

37.5v

Max Charge Voltage

54.6v

Inner Resistance

<= 50mΩ

Charge Time

<= 5 Hours (From 0-100%)

Operation Temperature Range

Charge: 0°C – 45°C / Discharge: -20°C – 60°C

Storage Temperature

0°C – 40°C (Extended Storage: 15°C – 25°C)

Battery Box Material

Plastic Casing

Assembled Pack Certificates

UN38.3; MSDS; RoHS; SGS

Limited Warranty

1 Year

Cells

Samsung

How to Measure Your X-Seam

At Electric Trike Store, we like to use the x-seam measurement to fit riders on recumbent trikes and inseam to fit riders on upright trikes (like the Sun Traditional).

We use this measurement to adjust your trike to fit you out of the box, but it's simple to adjust your trike later to suit your preferences. This is just a rough measurement to make things easier for you.

Alternatively, if you like reading and diagrams...

To measure your X-Seam, you'll need a tape measure, a sturdy board (like a piece of plywood or an ironing board), and an assistant to help you. If you currently ride a recumbent bike, you can use that to take the measurement instead of the board.
