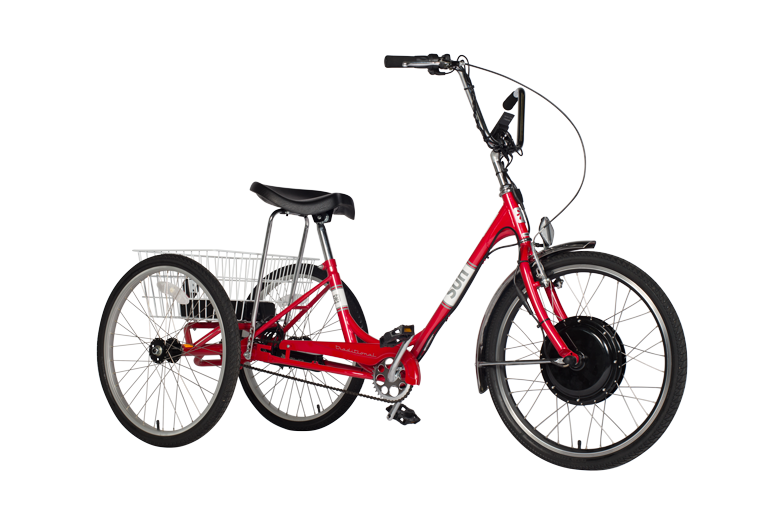

Highlights

he Sun Traditional 24 adult tricycle is a perfect trike for recreational trike riders. Outfitted with the E-Trike Kit drive system with heavy-duty direct-drive motor, speed-limited reverse function, and 48-volt Li-ion battery pack, this is the ultimate full-sized electric upright adult tricycle.

Wide Wheelbase
Comfort "Nose-Less" Seat
Low Step-Through Frame
Big Rear Basket

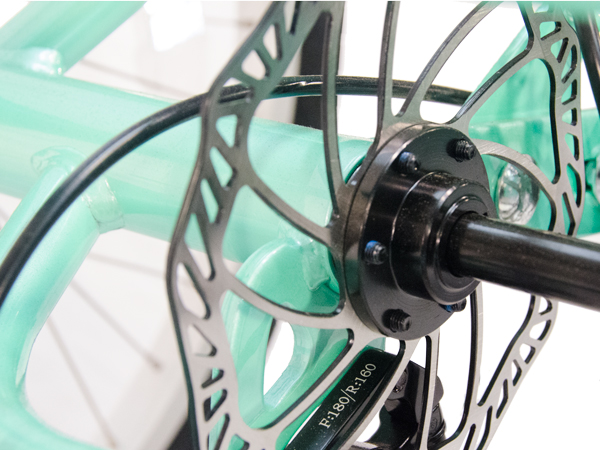

Upgraded Disc Brake

The Electric Traditional Trike features a Promax 160mm rear disc to supplement the front brake. Combined with the safety shut-off e-brake levers and integrated parking locks, this trike has all the stopping power you need to stay safe.

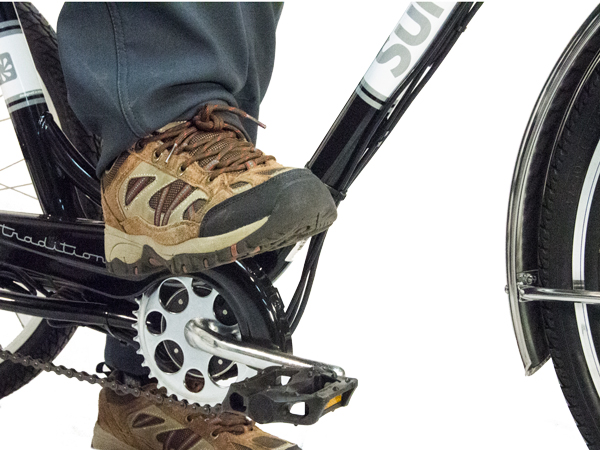

Easy Step-Through Frame

The Electric Traditional Trike features an easy-step-through frame. With a low 12.5 inch step-over height, the traditional makes getting on and off riding a breeze.

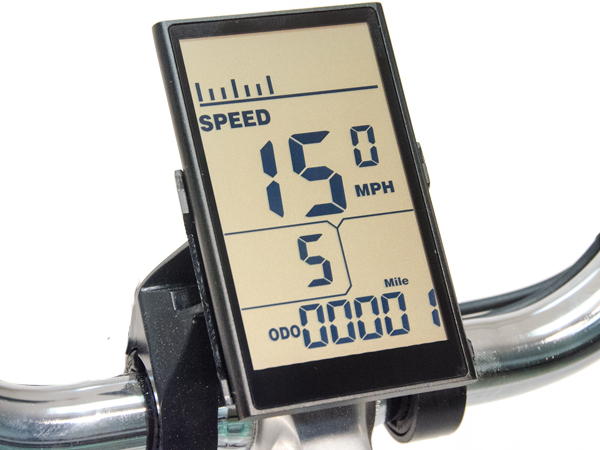

Easy-To-Read Segment Display

The Electric Traditional Trike features an easy-to-read backlit display with large text mounted on the handlebars. This advanced segment color LCD includes a battery meter, speed, and trip distance readout, and programmable top speed limit.

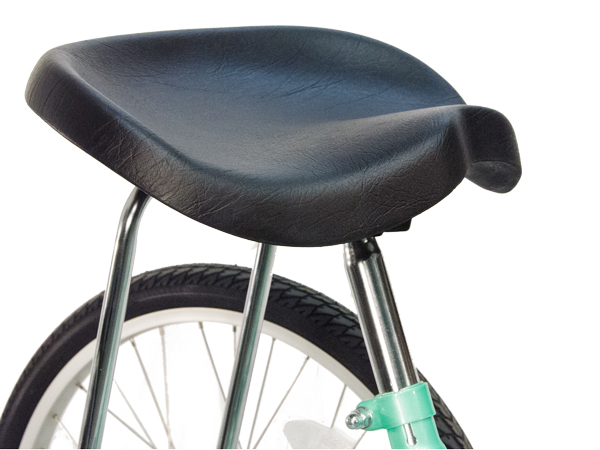

Ultimate-Comfort Seat

The Electric Traditional Trike boasts the most comfortable seat we've ever seen – an extra-large, noseless, padded, ergonomically shaped, tractor-style seat.

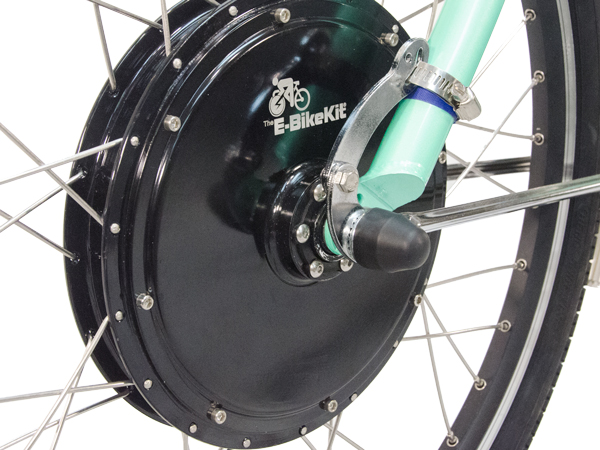

Heavy-Duty Direct-Drive Motor

The 500-1000w E-BikeKit motor is capable of pulling over 300 lbs and is laced into a USA handbuilt wheel with single-butted 12-13 gauge spokes for durability. This motor is a seriously heavy-duty motor.

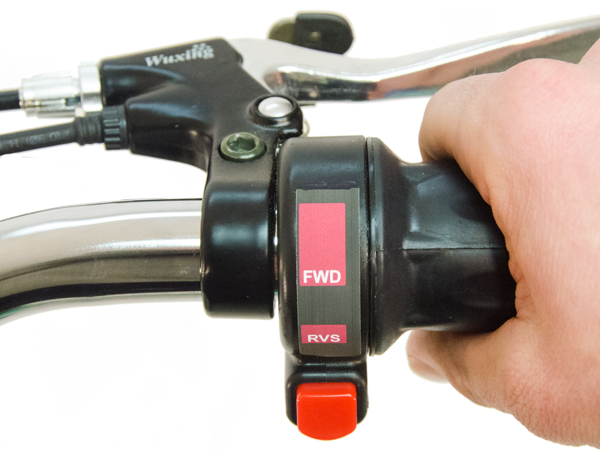

Twist Throttle with Reverse

The Traditional features an easy-to-use split-twist throttle with our unique reverse button toggle feature. You can get power when you need it, and back into tight parking spots!

Electric Traditional Trike Sizing

A: Handlebar Reach

10-16 Inches

B: Handlebar Rise

0-6 Inches

C: Standover Height

20 Inches

D: Seat Length to Pedal

32-43 Inches

E: Seat Height to Ground

23 Inches

Recommended Rider Height

5'-6'4" Inches

Top Speed

20 Mph (w/ user-adjustable speed limit)

Range

15-30 Miles (Based on rider's weight, input, and terrain contingent)

Motor

E-BikeKit Front Direct-Drive 500-1000 Watts / 46N-m @48v / 259 RPM

Motor Weight

12.8 lbs

Max Payload

275 lbs (Including rider and cargo)

Charge Time

5 Hours (From 0-100%)

Charger

48v 3A

Colors

Red Metallic, Blue Metallic, Black Metallic, Mint Metallic, and Violet Metallic

Drive Mode

Throttle-on-Demand, Pedal-Assist, 5-Level Speed Control, Programmable Speed, Current Limit, and Assist Level

Intended Use

Neighborhood, Cargo, Paved Path, and Shopping

Frame Material

High Tensile Steel, TIG-Welded

Fork Details

1-1/8 inches High Tensile Steel, Curved Tapered Legs

Frame Rear Unit

High Tensile Steel, TIG-Welded, Disc and Der Compatible

Suspension

None

Rims

Alloy, 36-Hole, Single-Wall Construction

Spokes

(F) 12-13 Gauge, Single-Butted, Stainless Steel / (R) 14 Gauge, Stainless Steel

Tires

Kenda Kwest, 24in x 1.5in at 40-65 psi. (Ships at 65 psi)

Saddle

Extra-Large, Black Bucket Seat w/ Adjustable, Heavy-Duty Rear Brace

Handlebar

Steel, 27.6in Wide x 9in Rise x 25.4mm Clamp

Stem

Steel, 205mm Quill / 60mm Extension / 25.4mm Diameter Clamp

Brakes

(F) V-brake / (R) ProMax DSK-400 Mechanical Disc Brake w/ 160mm Rotor

Brake Lever

Includes E-brake Shutoff and Parking Lock / One Lever for the Front Wheel, and One Lever for the Rear Wheel

Grips

EBT Grips – EVA Rubber

Shifter

None

Display

Color LCD

Front Derailleur

None

Rear Derailleur

None

Cranks

One-Piece Steel, 165mm Length / 36 Tooth Chainring

Chain Guard

Color-Matched, Alloy Chain Guard

Gearing

Singlespeed / 20 Tooth Freewheel Cog

Pedals

VP-560, Black Plastic Platform w/ 1/2in thread

Lights

None

Fenders

(F) Stainless Steel, Full Wrap, w/ Single Strut

Basket

Steel Wire, Vinyl Coated: 21in Long x 15in Wide x 9in High

Inseam Range

27-45 Inches (Extra small and extra-large sizes require changing parts)

Wheelbase

39 inches

Overall Length

77 inches

Max Width

31 inches

Ground Clearance

6 inches (From the bottom of the chainring to the ground)

Turning Radius

Approx. 9ft 10 1/2 inches

Overall Weight

55.7 lbs

Nominal Voltage

48v

Nominal Capacity

15ah

Battery Energy

720Wh

Dimensions

14"x3.5"x5"

Total Weight

10lbs 2oz

Cell Assembly

18650-3.6v-13S

Life Cycles

>= 80% Dod = 500 Cycles

Max Continuous Discharge

22.5A

BMS Protection Current

30A

Discharge Cut-Off Voltage

37.5v

Max Charge Voltage

54.6v

Inner Resistance

<= 50mΩ

Charge Time

<= 5 Hours (From 0-100%)

Operation Temperature Range

Charge: 0°C – 45°C / Discharge: -20°C – 60°C

Storage Temperature

0°C – 40°C (Extended Storage: 15°C – 25°C)

Battery Box Material

Plastic Casing

Assembled Pack Certificates

UN38.3; MSDS; RoHS; SGS

Limited Warranty

1 Year

Manufacturer

Electric Bike Technologies, Inc.

$250 FLAT-RATE SHIPPING

The Contiguous USA Only.

SALES TAX

Sales tax will be applied by the state where applicable.

SHIPS 100% FULLY ASSEMBLED from Our Warehouse in Bucks County, PA

The tricycle is enclosed in a heavy cardboard box and fastened to a custom-built shipping pallet. Shipping is by freight truck with liftgate service included.We use a variety of freight carriers based on your shipping destination. When the trike ships, you will receive an email from us with tracking information. The freight company will contact you before the final delivery is made in order to arrange the drop-off with you.

RETURNS & REFUNDS

The electric tricycles we offer are high-quality tricycles assembled by professionals with years of experience, and we stand behind each electric tricycle we build and ship. If, for any reason, after purchasing your electric trike, you are not 100% satisfied, simply contact customer service to discuss the return.

IMPORTANT

Buyers may return any undamaged and unused products (including fully assembled electric tricycles) within 30 days of delivery for a refund minus a 25% restocking fee (based on the condition of the returned item and at the sole discretion of EBT). ACTUAL ORIGINAL SHIPPING CHARGES (not the flat-rate $250) AND RETURN SHIPPING CHARGES (back to our facility) ARE THE SOLE RESPONSIBILITY OF THE BUYER. These return shipping costs can be significant. It is also imperative that you retain the shipping pallet and box should you decide to return a complete tricycle. If these packing items are discarded, the return will become that much more complicated and expensive.

For more information on Returns, Shipping Charges, and refunds, please visit our Terms & Conditions.

TRANSIT TIMES

Approximate transit times start once the parcel leaves our Croydon, PA warehouse. East Coast: 2-4 Business Days Midwest: 3-5 Business Days West Coast: 5-7 Business Days
With liftgate service, the truck can only lower the pallet to the ground, and they cannot deliver it inside your house. You will need to open the box and dispose of the pallet afterward.

SHIPPING SIZE

80in x 40in x 53in and 190 lbs

PLEASE NOTE

This electric Fat Trike is currently shipping without a user manual. We do offer the Fat Trike's Owner's Manual online. It's available as a PDF to download or printout. The specifications sections should also provide most of the information you'll want to know. If you have any questions, suggestions, or additional information that you would like to see posted, please let us know.
