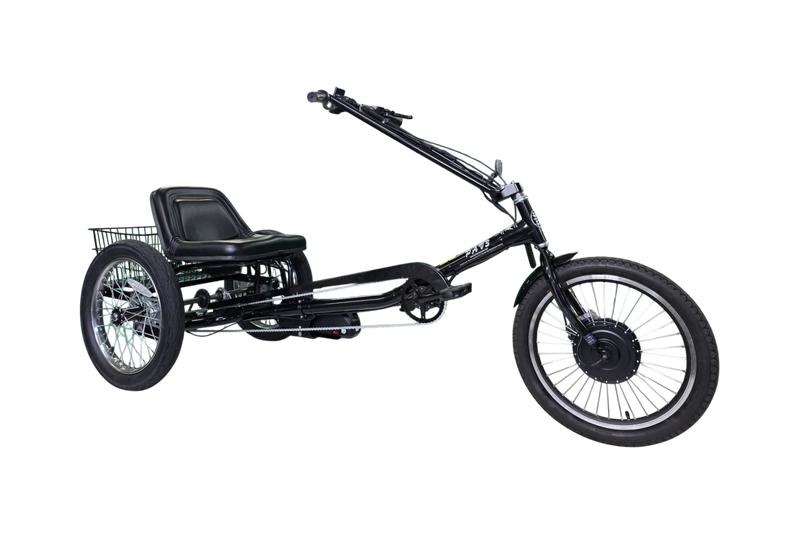

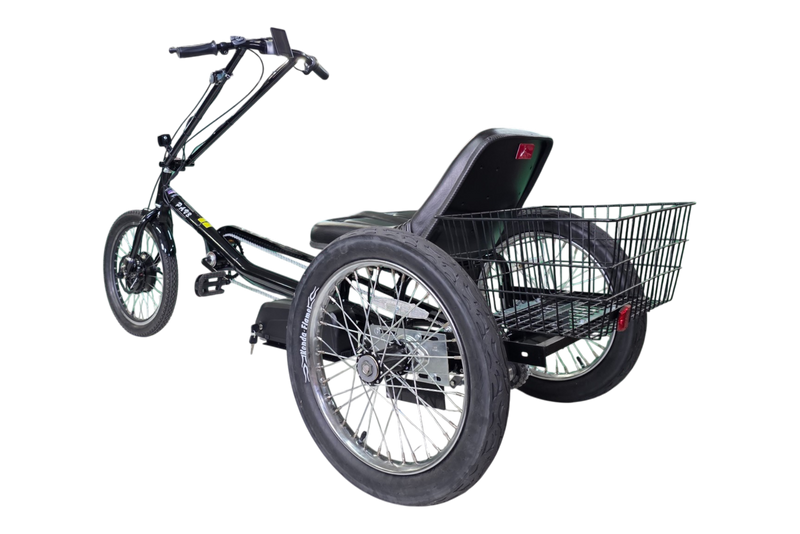

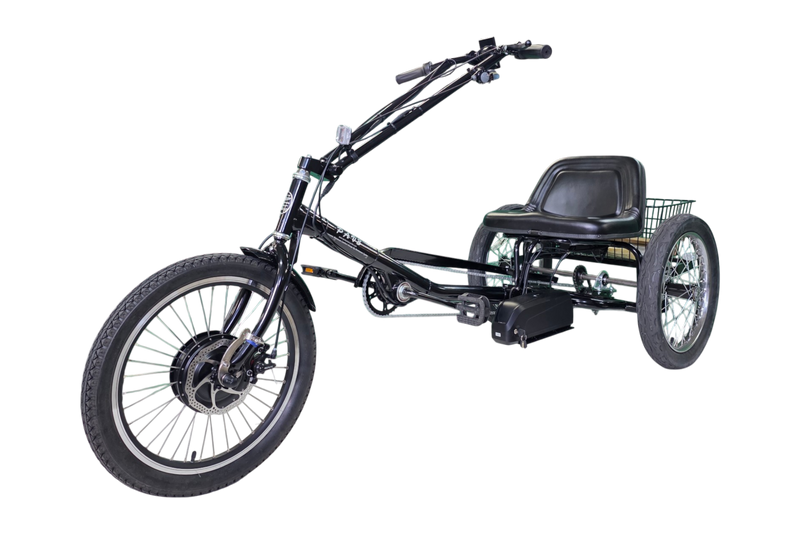

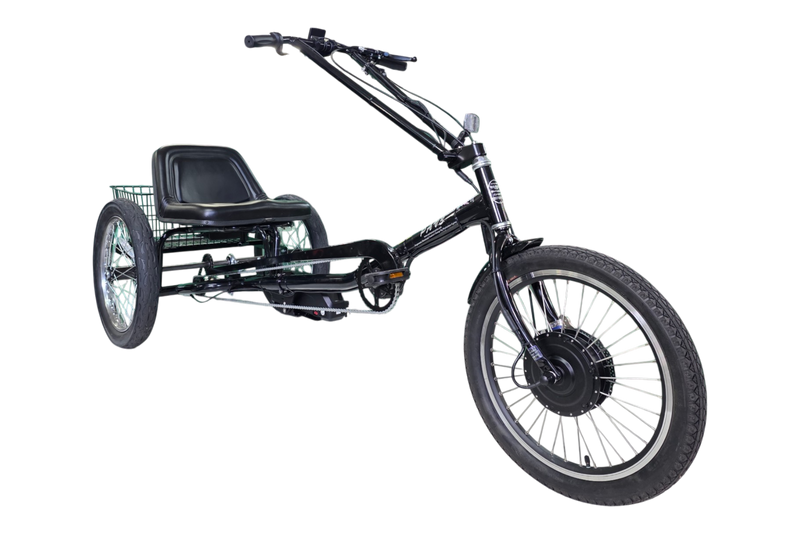

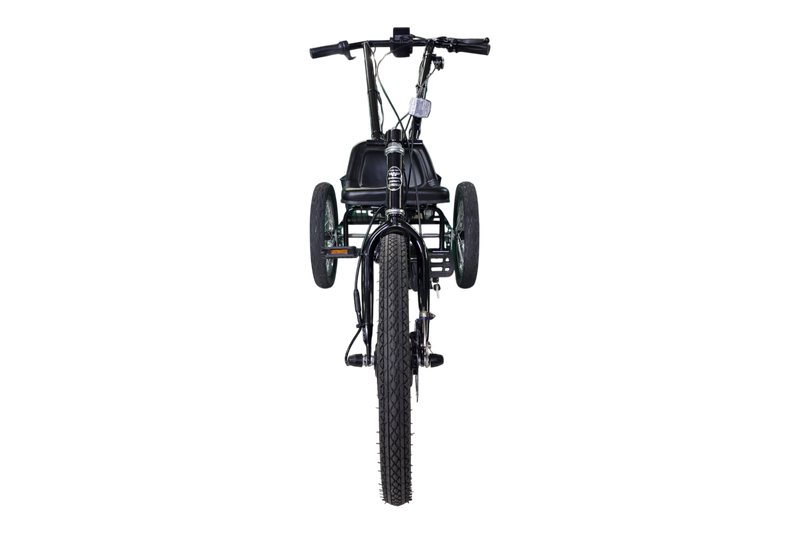

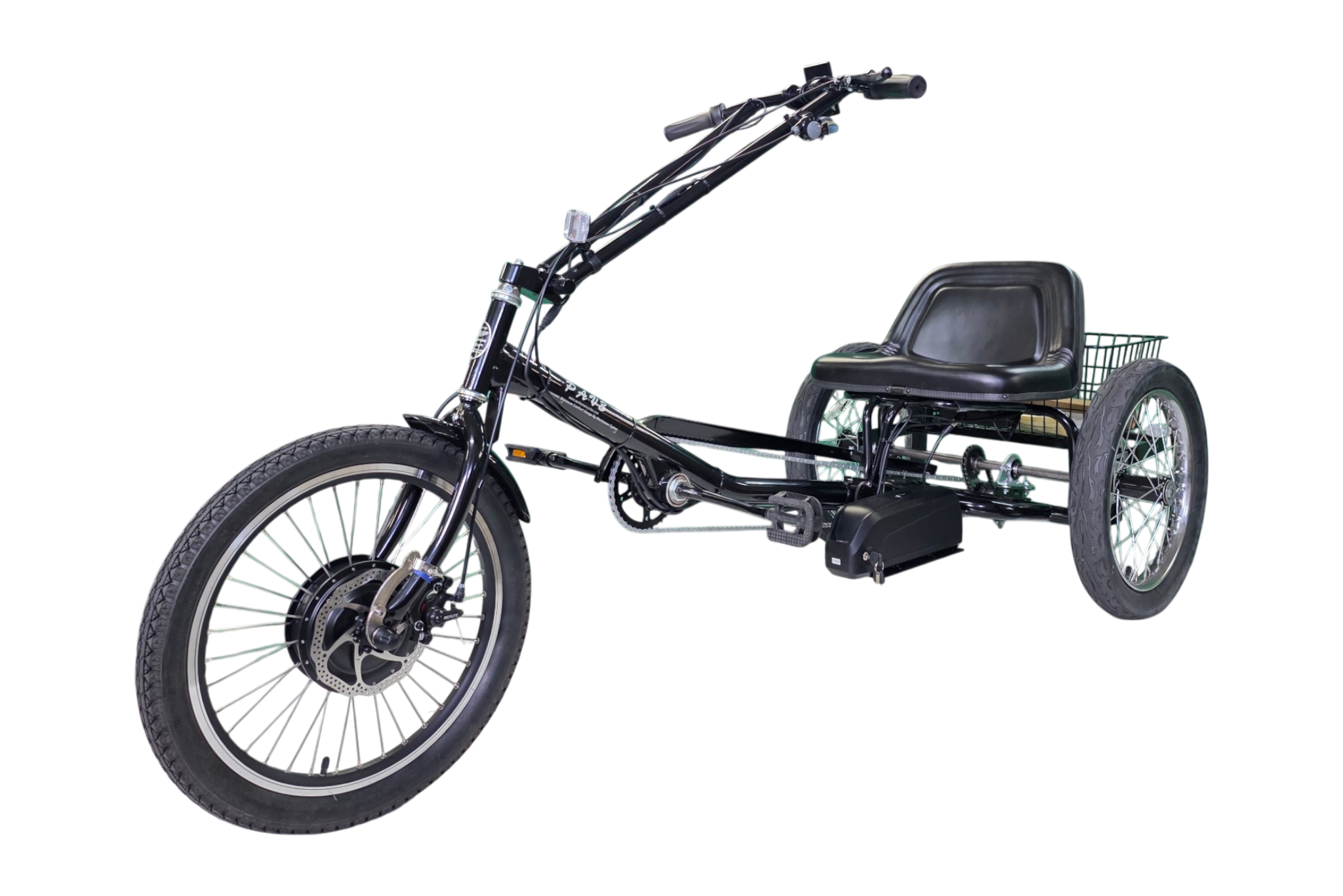

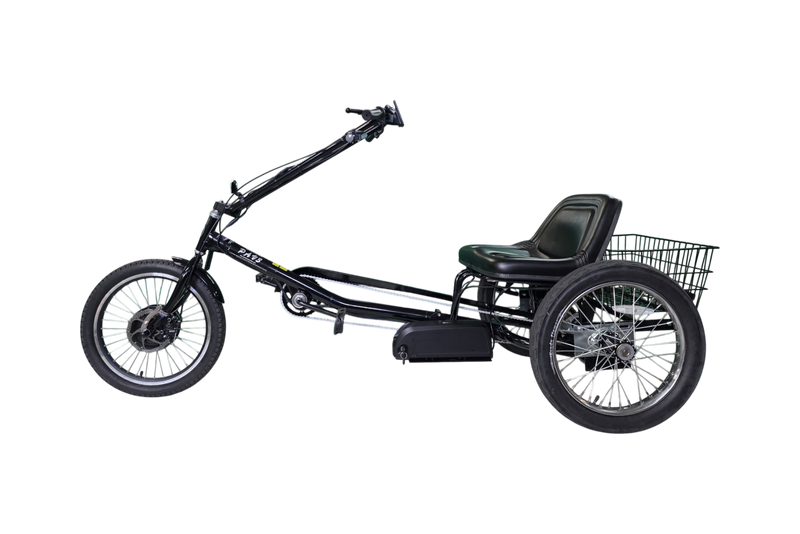

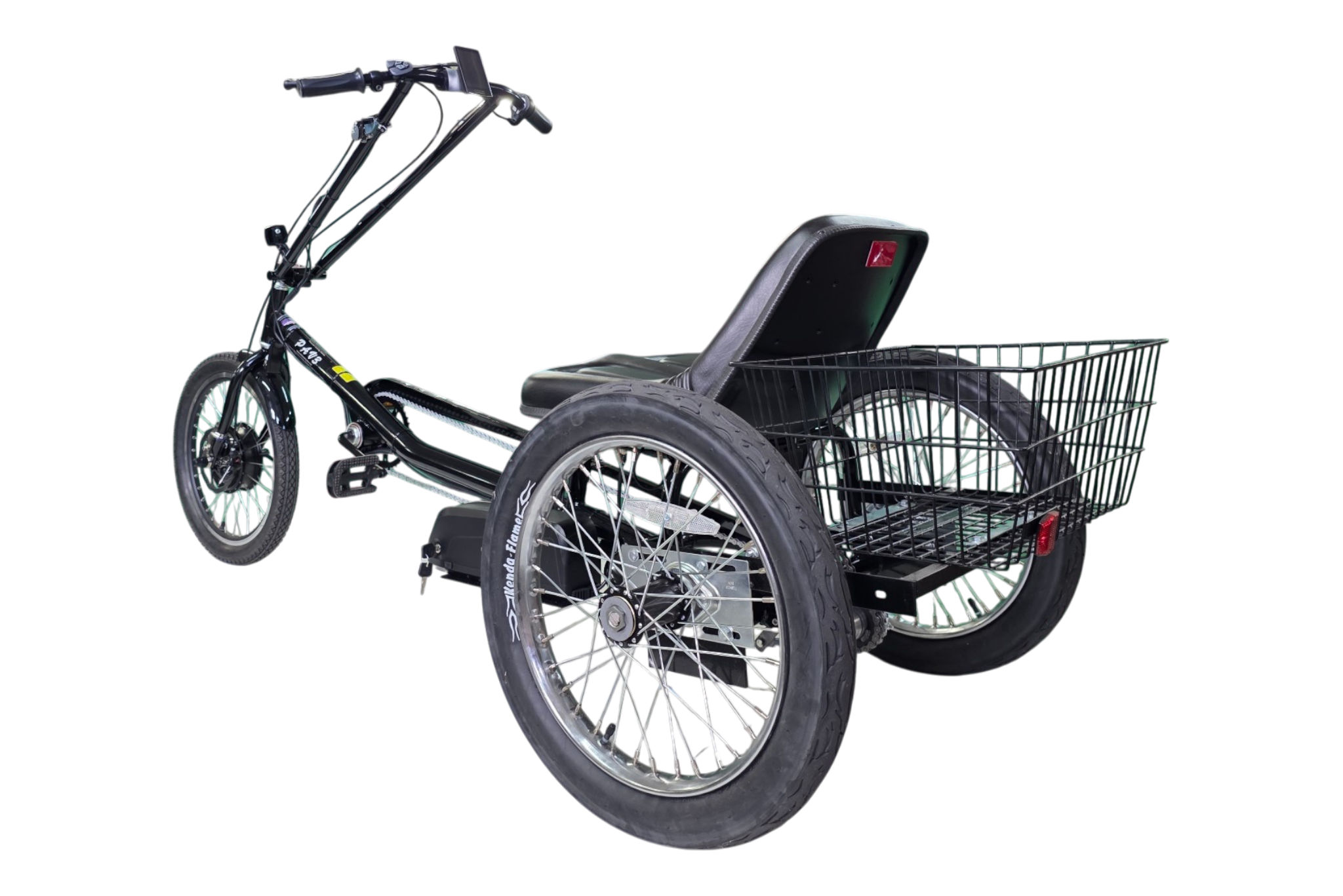

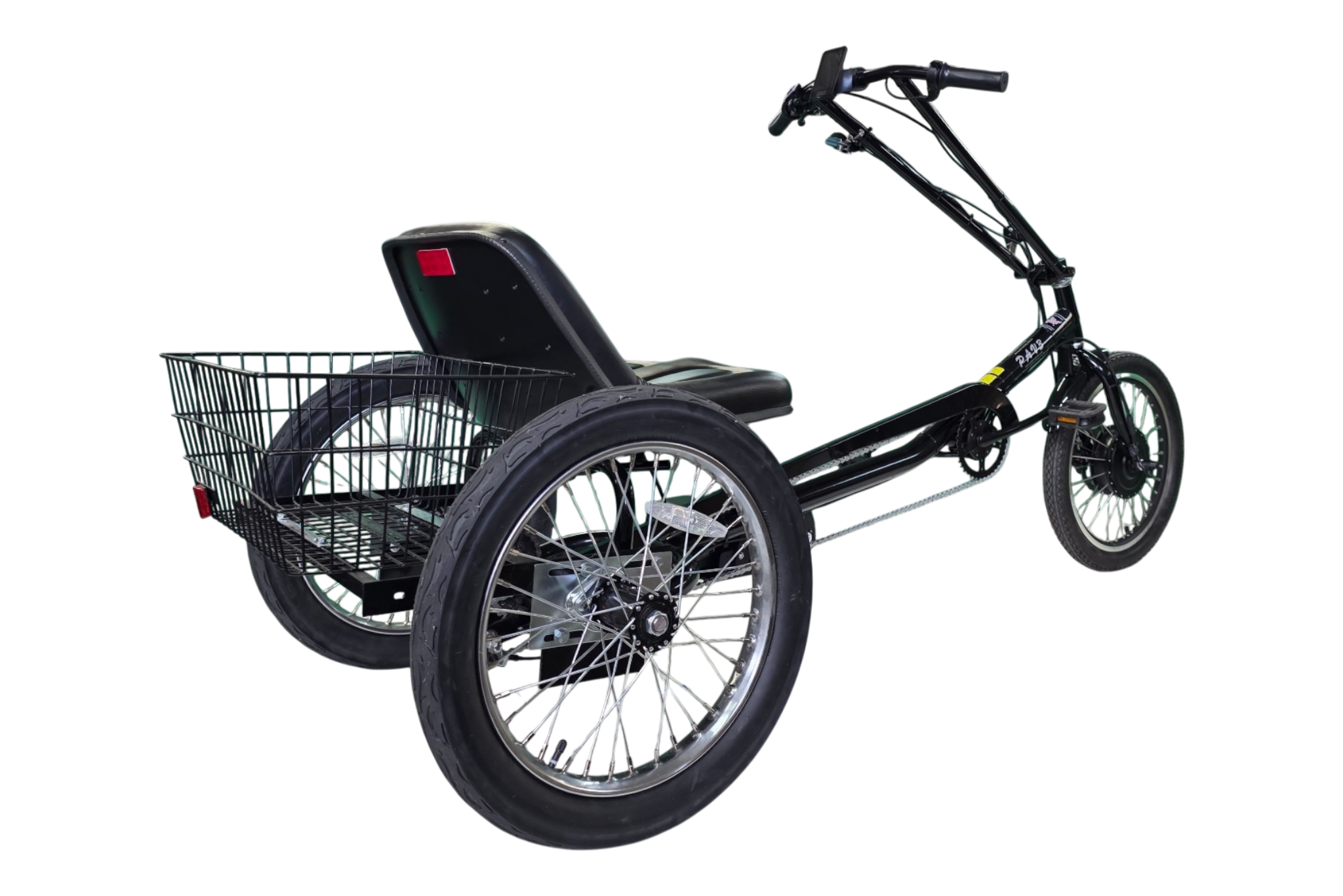

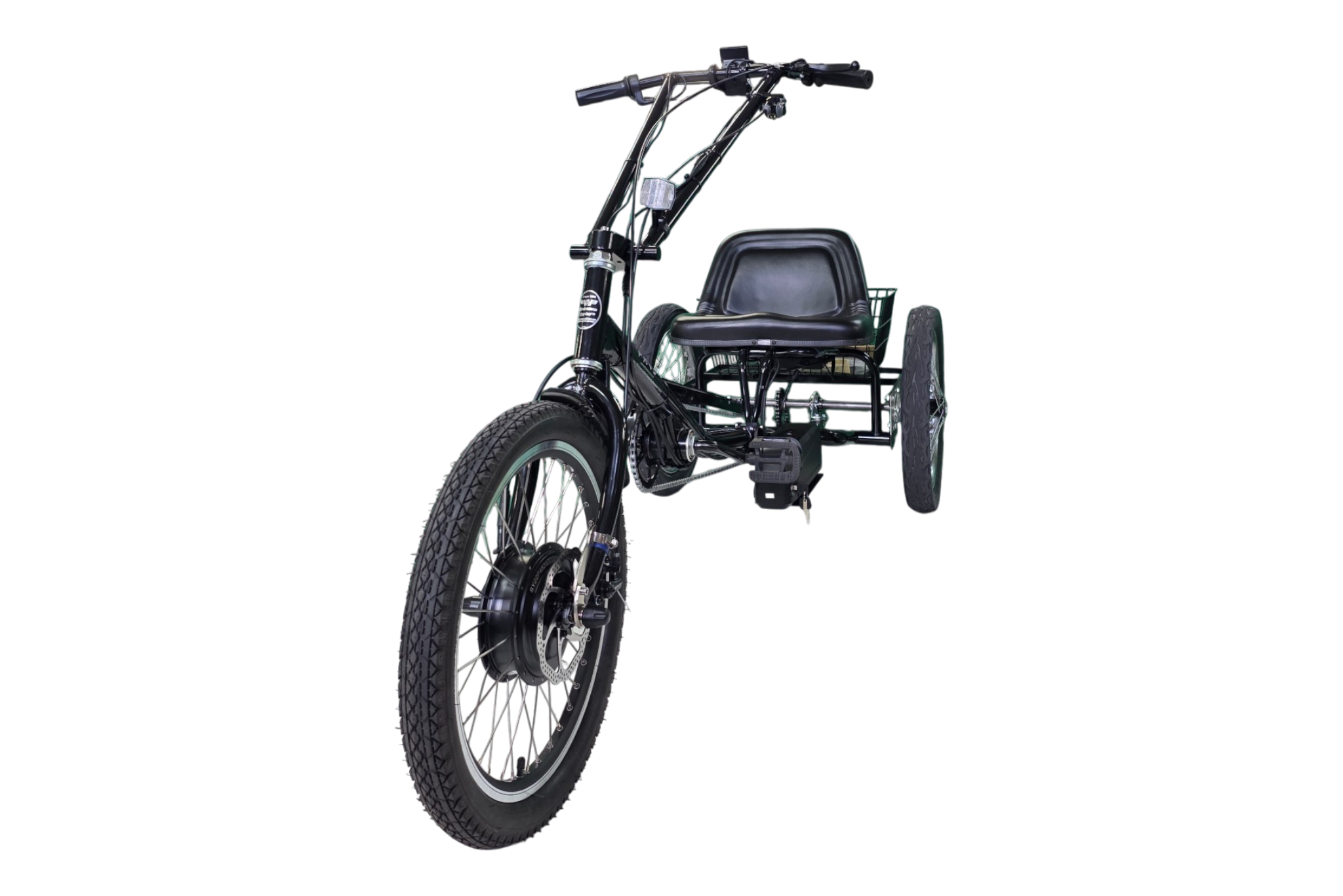

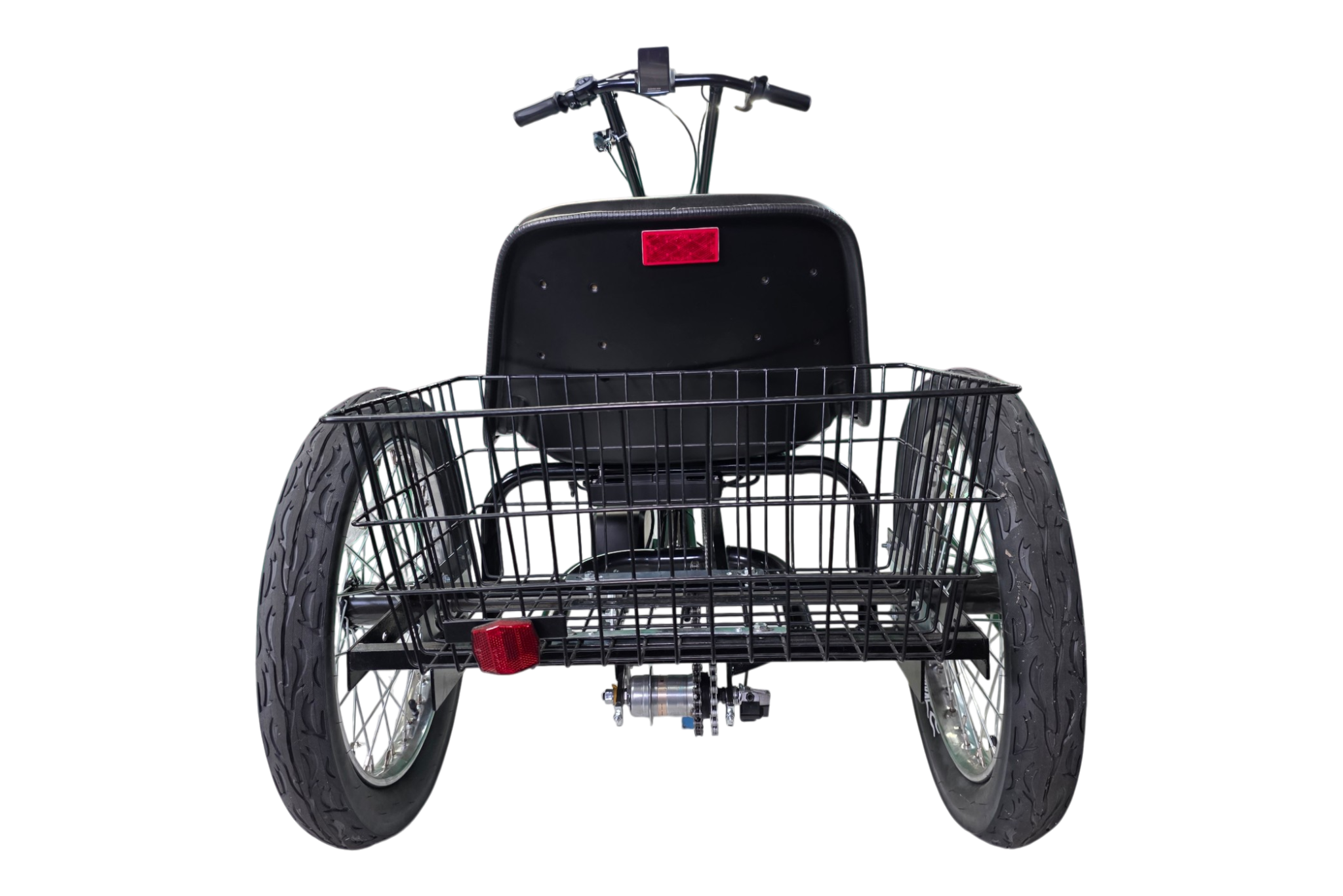

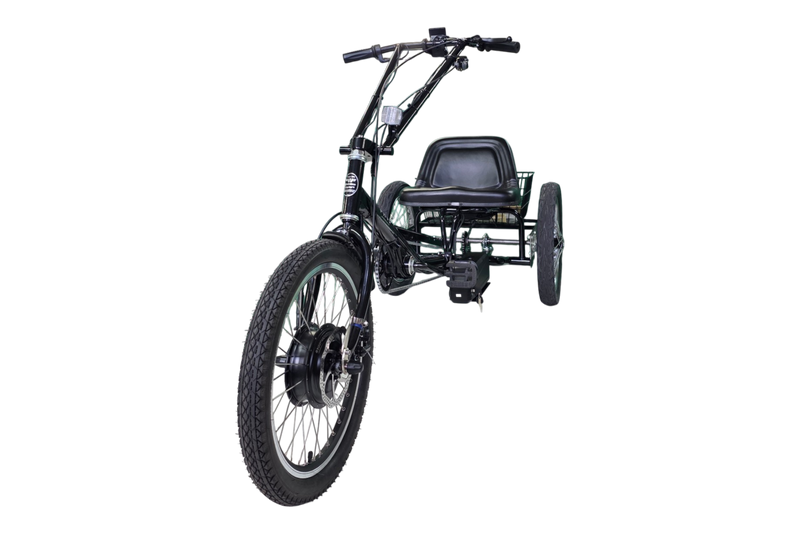

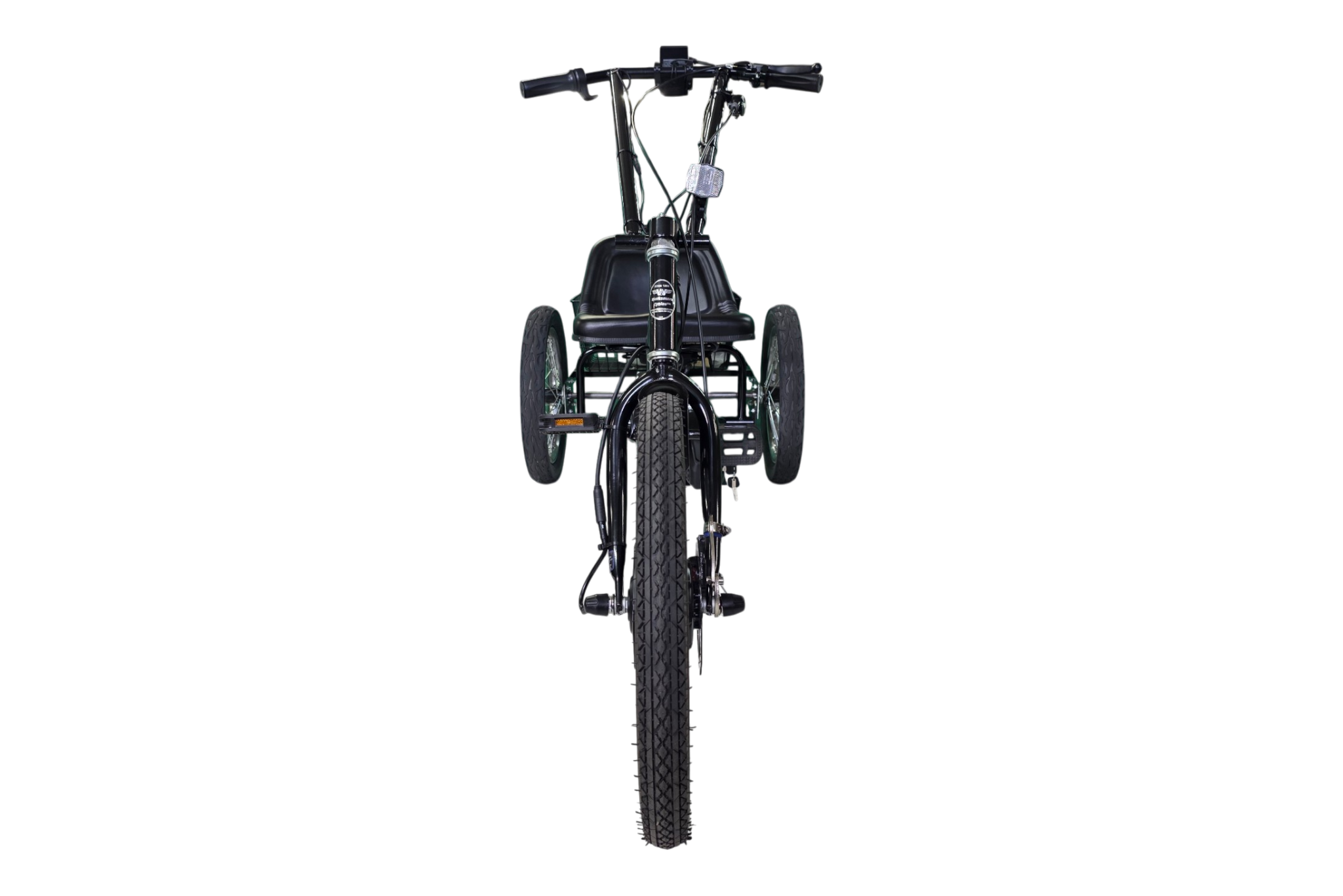

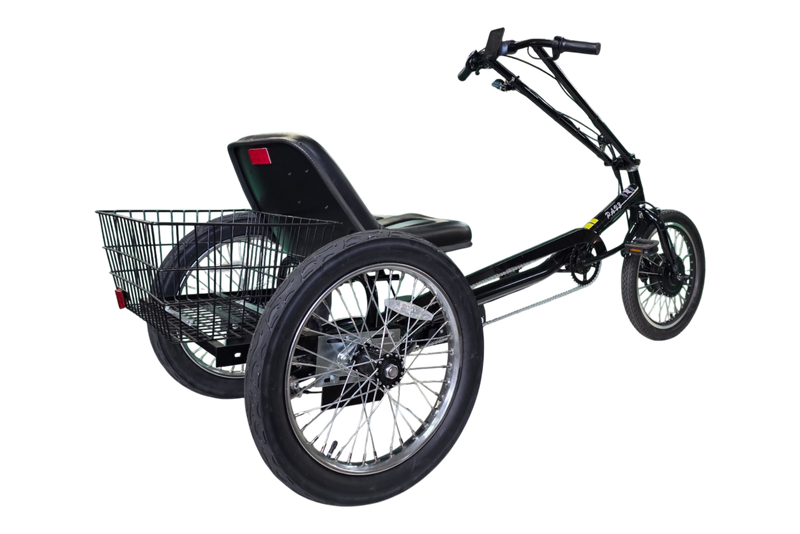

PAV3 Stretch Highlights

Name: Electric Worksman PAV3 Stretch
Brand: Worksman and Electric Trike LLC
SKU: WTCPAV3S
Price: 3348.0 USD
Availability: InStock

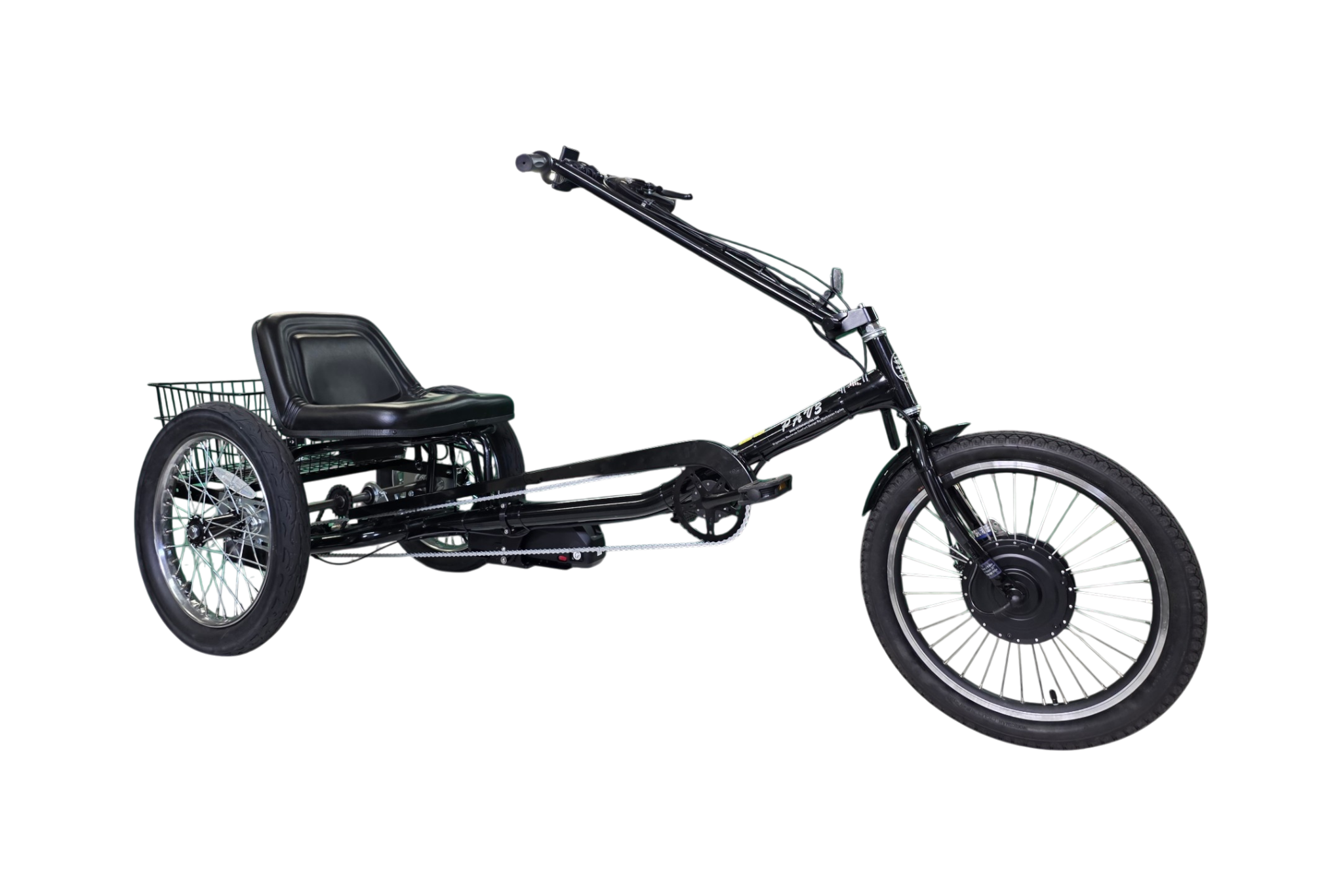

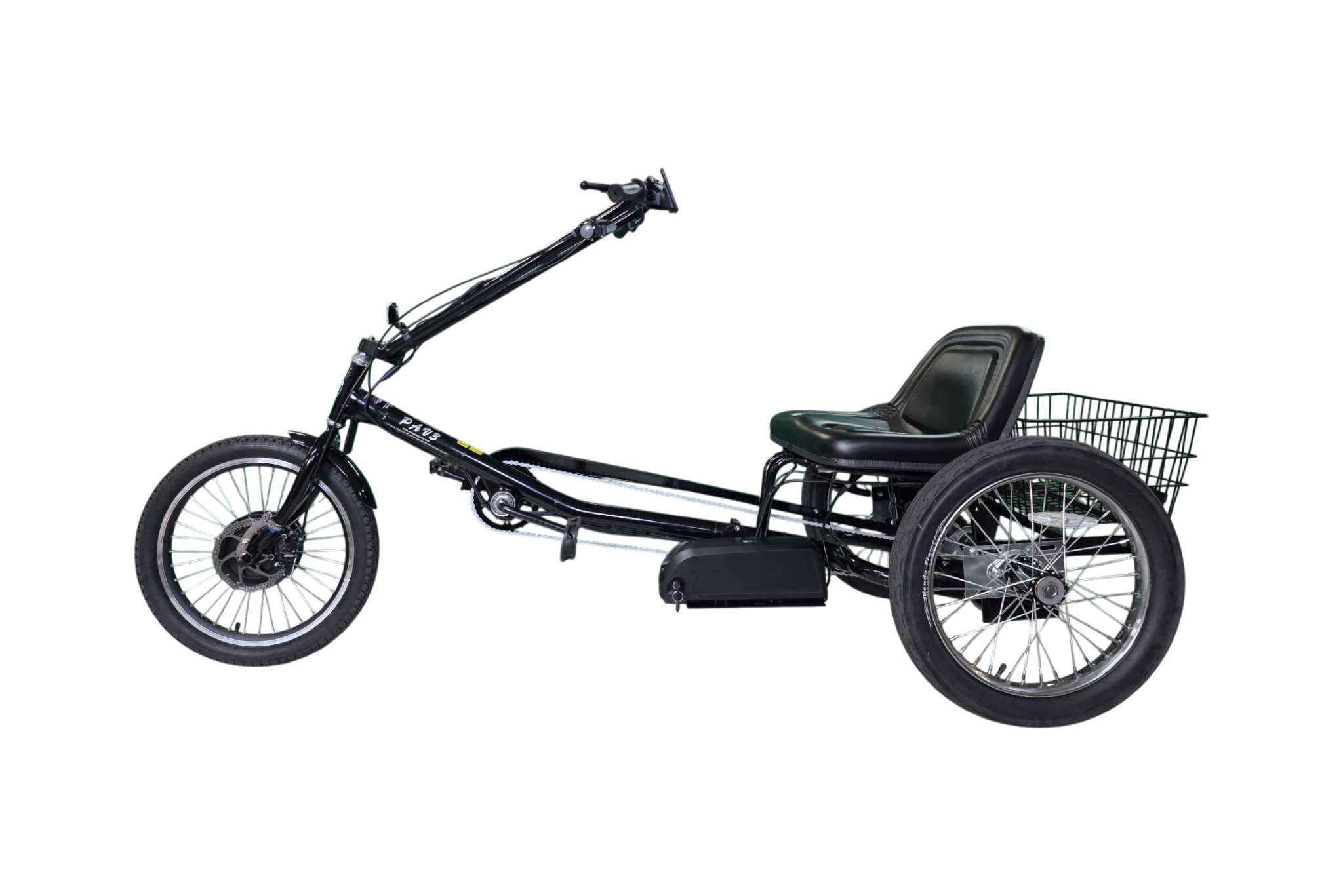

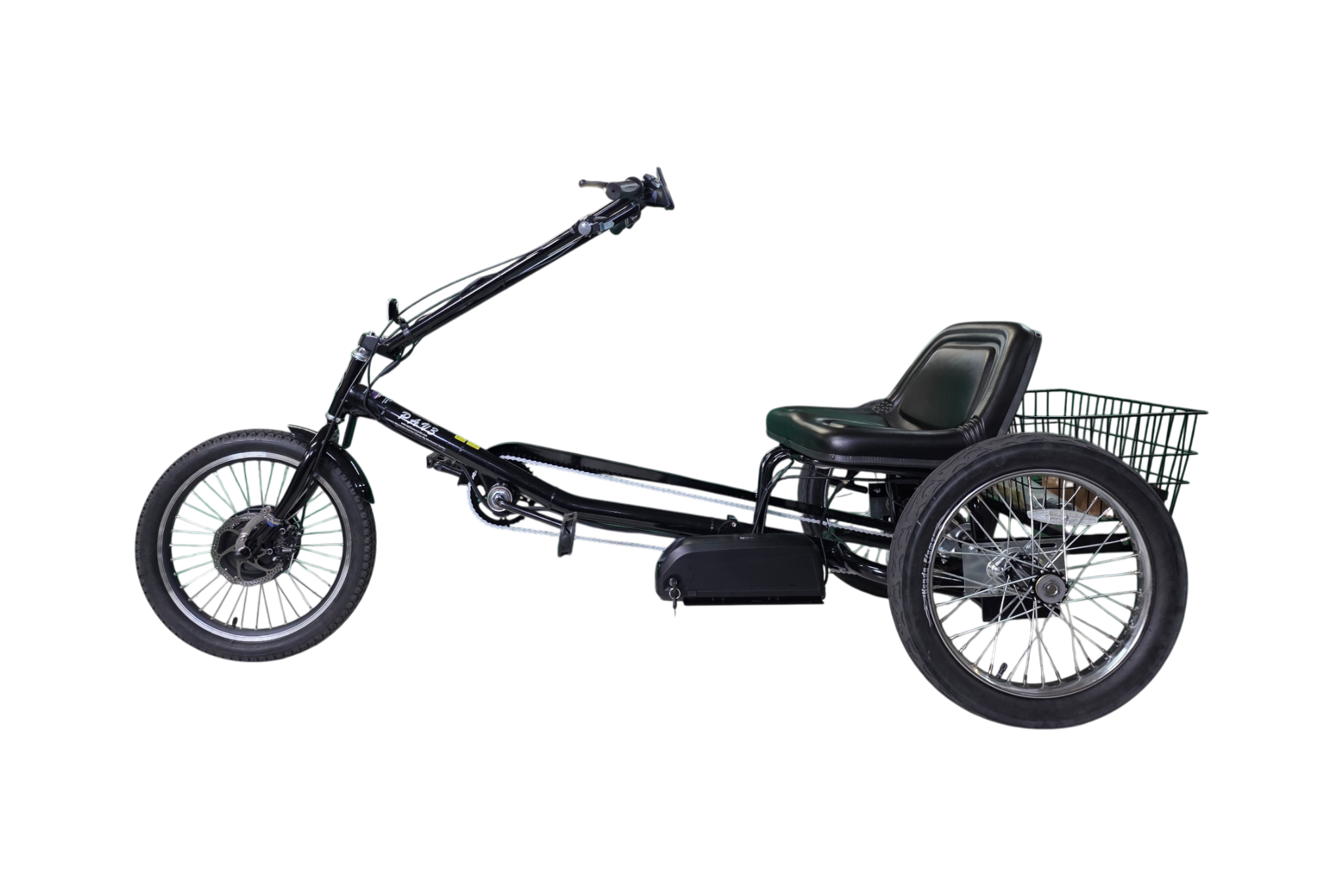

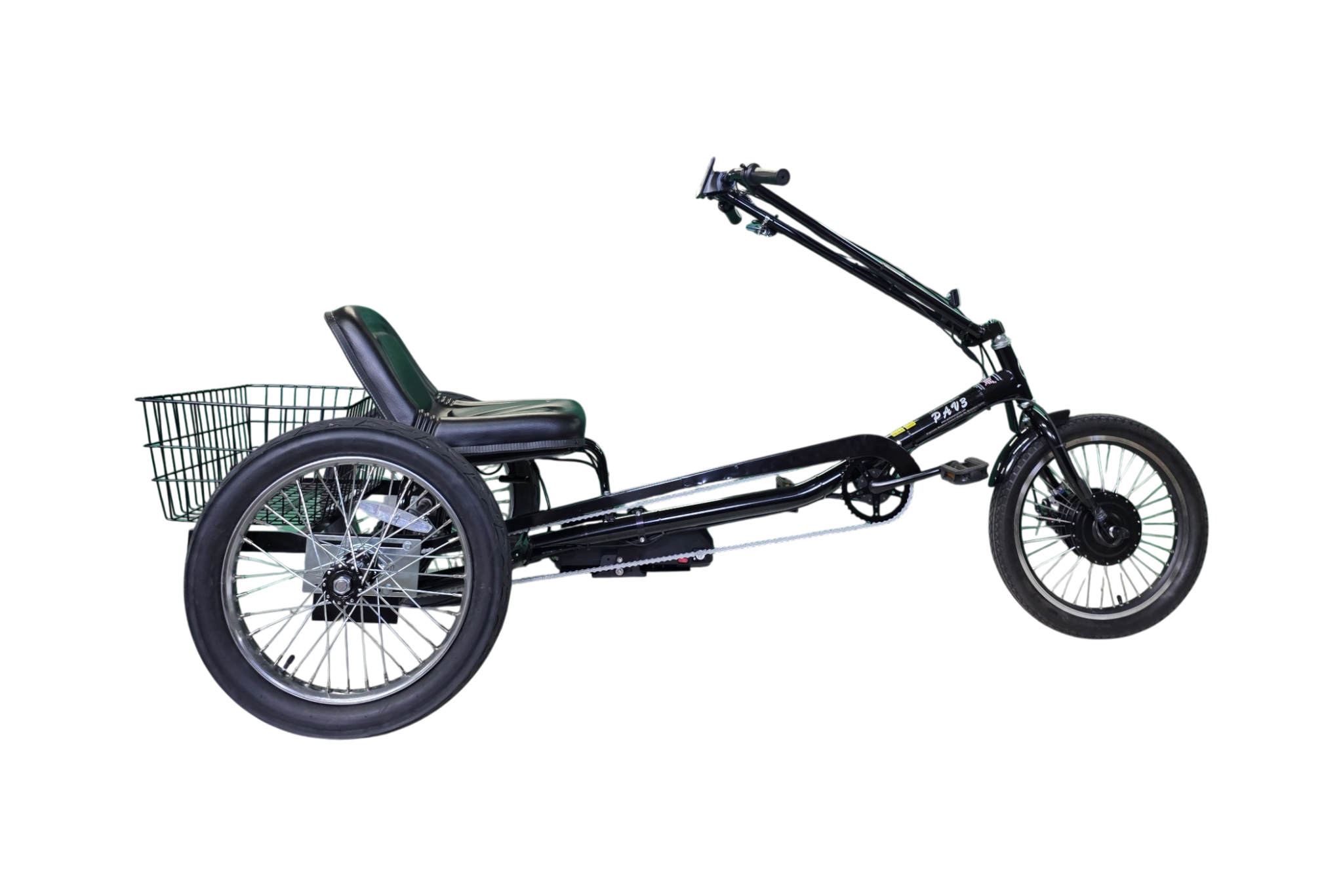

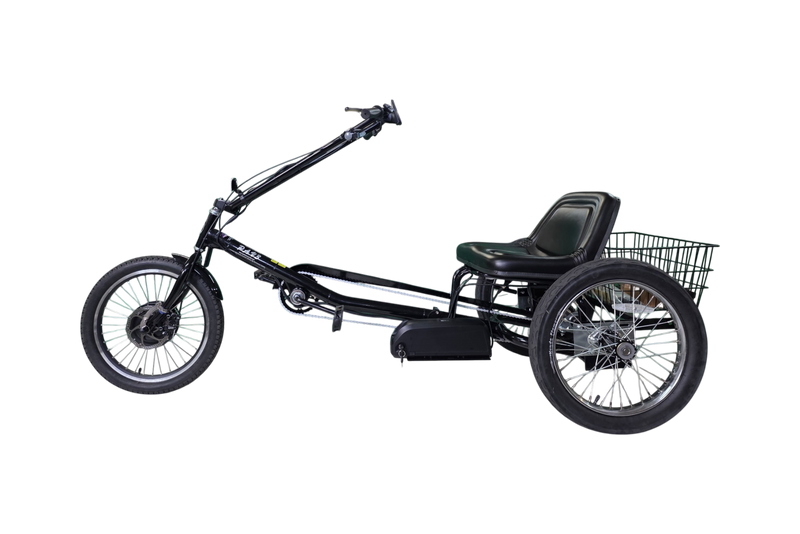

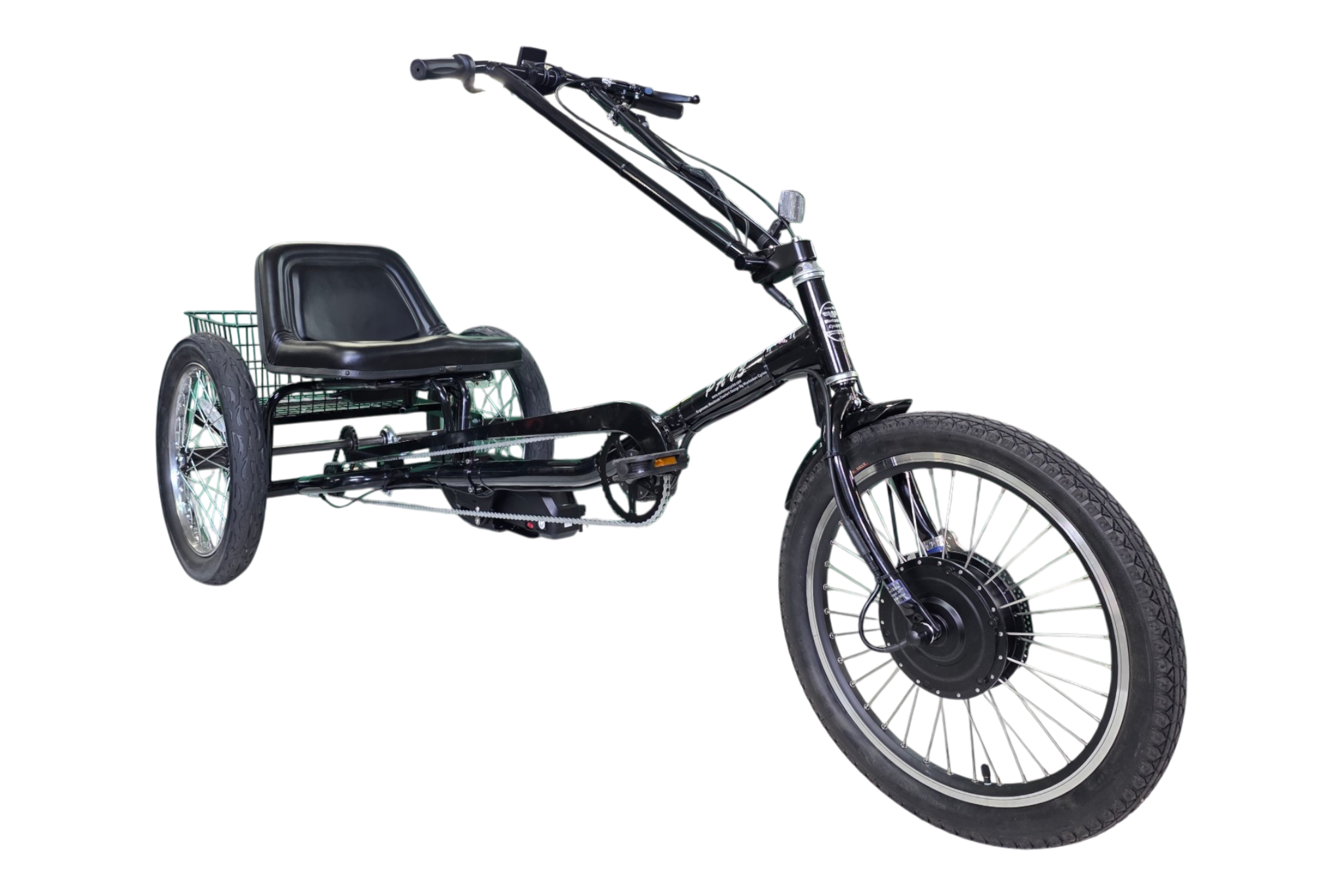

The Worksman PAV3 Stretch Electric Trike combines industrial-grade durability, extra rider room, and the new SINET™ torque-sensing system for smooth, stable electric riding designed specifically for larger and taller riders.

• 500W front hub motor (1000W peak) delivers strong, dependable torque
• New SINET™ sine wave controller with integrated bottom bracket torque sensing
• Top speed up to 18 mph
• Cruise control and upgraded high-quality thumb throttle
• New SINET™ LCD display with voltage readout, battery meter, and 3 ride screens
• Upgraded SUNRACE 175mm crankset with 38T chainring for improved pedal authority and smoother cadence
• Upgraded safety pedals for better grip and rider confidence
• 48V 15Ah lithium-ion battery — estimated 15 to 45 miles per charge

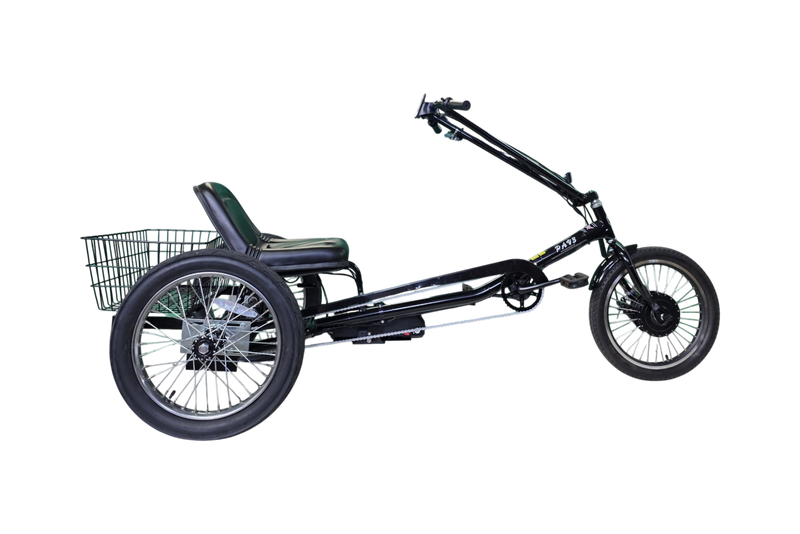

• Stretched frame design provides additional legroom and a more spacious fit
• Richly padded, fully adjustable high-back seat for maximum comfort
• Semi-recumbent riding position with lower cranks for relaxed pedaling
• Traditional high handlebars for comfortable, upright steering control
• 3-speed internal SRAM shifter allows shifting even while stopped
• Heavy-duty front disc brake with rear coaster brake for smooth stopping power
• Proprietary low-mounted battery system improves balance and stability

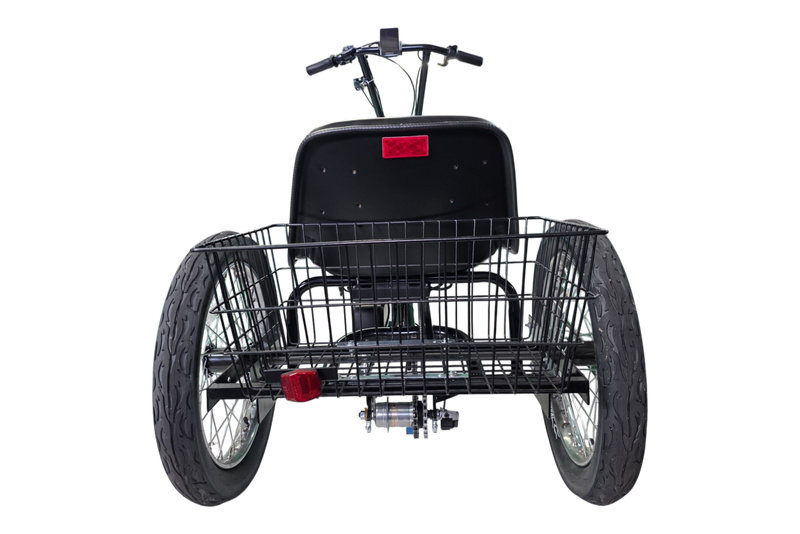

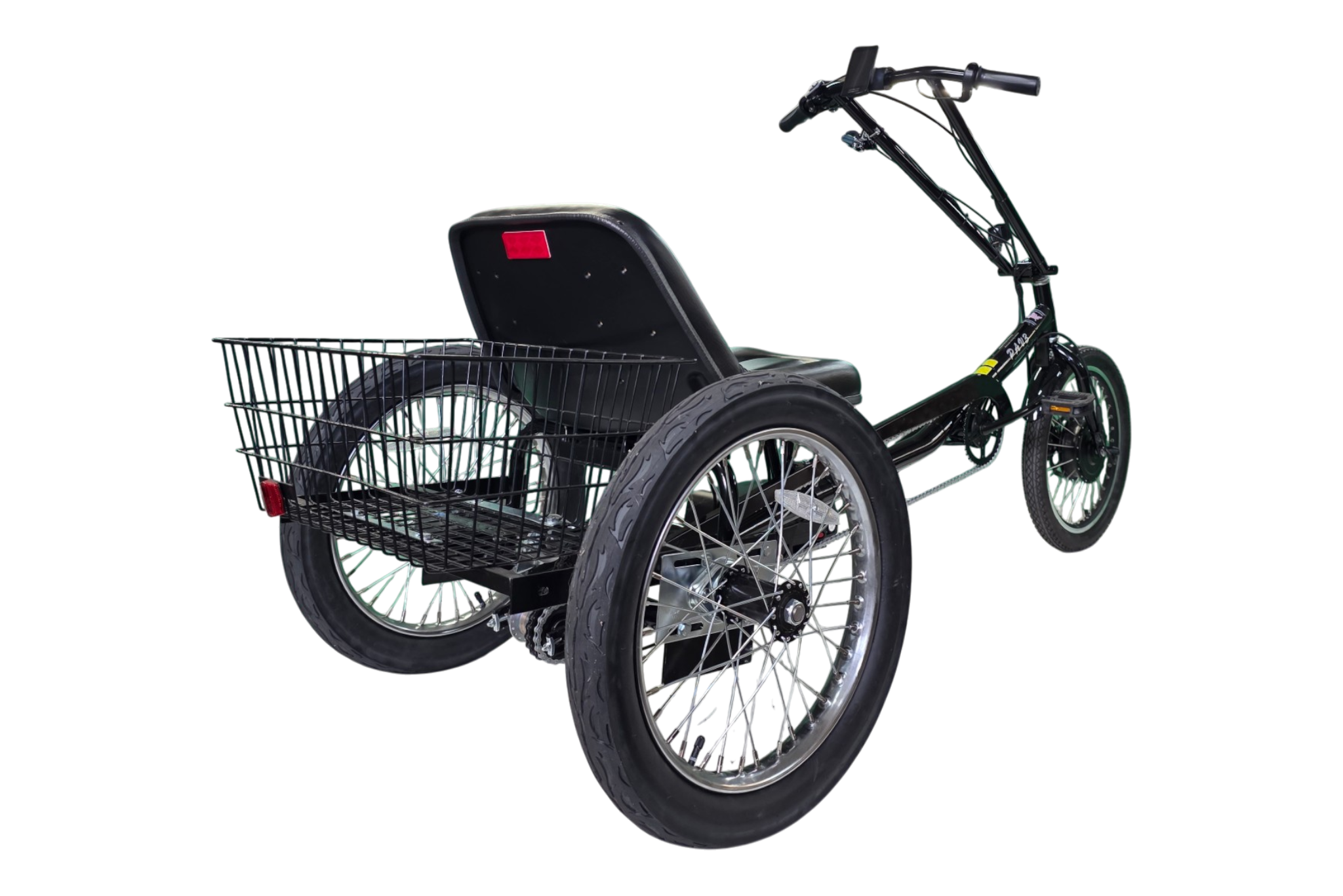

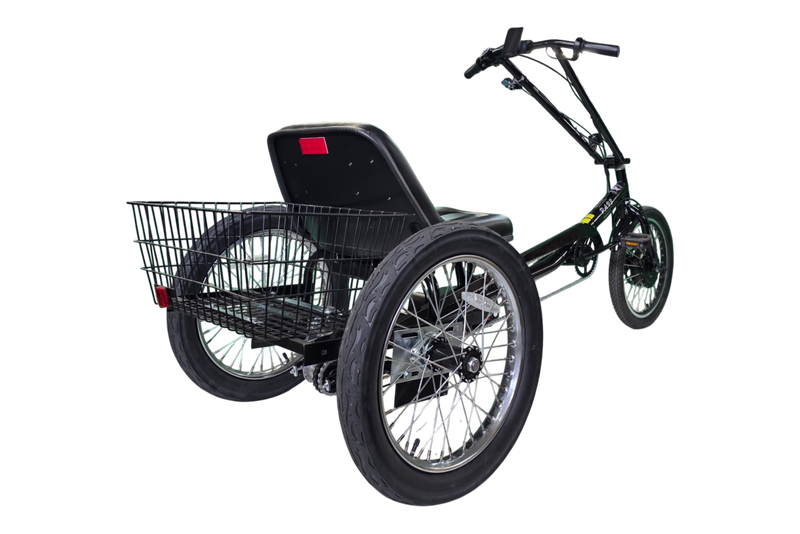

• Large rear basket for cargo, errands, or everyday utility
• Industrial-grade double-wall rims, 12-gauge spokes, and Kevlar-belted tires
• Built for durability with a load capacity up to 600 lbs

The Worksman PAV3 Stretch is designed for riders who want extra room, exceptional comfort, and dependable electric performance in a stable, easy-to-ride adult tricycle.

Special Features

Top Speed

18 Mph at 48V (w/ Programmable Limit)

Range

15-45 Miles

Motor

500–1000W Peak Hub Motor, 84N-m @ 48V / 320 RPM

Motor Weight

9 lbs 6 oz

Battery

48V 15Ah Lithium-Ion Mounted with Custom Bracket System

Max Payload

550 lbs (Including rider and cargo)

Charge Time

5 Hours (From 0-100%)

Charger

48V 3A

Drive Modes

Throttle-on-Demand, Torque-Sensing Pedal Assist, 5-Level Assist Control, Cruise Control, Programmable Speed Limit

Controller

SINET™ Sine Wave Controller with Integrated Bottom Bracket Torque Sensing

Display

SINET™ LCD Display with Voltage Readout, Battery Meter, Trip Functions, and 3 Display Screens

Colors

Black

Intended Use

Neighborhood, Cruising, Paved Trail, and Urban

Frame Material

One-Piece Fully Welded Steel Frame, 14G 2” Oversized Main Frame with Reinforced Gusseted 12G Cross Axle Rear and Welded Seat Support

Fork Details

High Tensile Steel, Rigid

Suspension

None

Rims

(Front) Alloy, 36-Hole, Double-Wall Construction / (Rear) Exclusive WTC Industrial Clincher Rims with Rolled Edge and 50% Thicker Material than Standard Bicycle Rims

Spokes

(F) 12 Gauge, Stainless Steel / (R) 11G (.120) Heavy Duty 36 per Wheel

Tires

WTC Sup-R-Tires, Diamond Tread, Kevlar Belted

Saddle

12” High Back Captain’s Seat, 18” Wide x 13” Deep x 13” High, Thickly Padded with Steel Base Pan and Drainage Holes, Adjustable on Track

Stem

Steel

Handlebars

Adjustable Steering Tiller can be Tilted to Adjust Height and Steers Side to Side

Brake Levers

Includes E-Brake Shutoff and Parking Lock, One Lever for the Front Wheel, and One Lever for the Rear Wheel

Brakes

(F) ProMax V-brake / (R) Shimano Nexus THREE SPEED Coaster Brake with Dual Sprockets (Foot Activated)

Shifter

THREE Gears with Dual Action Handlebar Mounted Thumb Shifter

Grips

EBT Grips – EVA Rubber

Display

SINET™ Color LCD

Front Derailleur

None

Rear Derailleur

None

Cranks

SUNRACE FCM408 175mm Crankset w/ 38T Chainring and Chain Guard

Pedals

Upgraded Safety Pedals, 1/2" Boron Axle

Gearing

3-Speed Internal Shifter with Dual Action Handlebar Mounted Thumb Shifter

Chainring Upgrade

Upgraded 38T Chainring for Improved Pedal Authority

Lights

None

Fenders

Front - Steel

Basket

Standard - 18 x 13 x 6"

X-Seam Range

29-49 Inches (Smaller sizes may require modification)

Wheelbase

42.5-63 Inches (Depends on rider X-Seam set-up)

Overall Length

69-88 Inches (Depends on rider X-Seam set-up)

Max Width

31 Inches

Ground Clearance

3 Inches (From the bottom of the rear derailleur to the ground)

Turning Radius

Approx. 10ft 3 1/2 Inches

Overall Weight

98 lbs

PAV3 Stretch Owner's Manual

Available Online

E-BikeKit Owner's Manual

Available Online

Nominal Voltage

48v

Nominal Capacity

15ah

Battery Energy

720Wh

Dimensions

14"x3.5"x5"

Total Weight

10lbs 2oz

Cell Assembly

18650-3.6v-13S

Life Cycles

>= 80% Dod = 500 Cycles

Max Continuous Discharge

22.5A

BMS Protection Current

30A

Discharge Cut-Off Voltage

37.5v

Max Charge Voltage

54.6v

Inner Resistance

<= 50mΩ

Charge Time

<= 5 Hours (From 0-100%)

Operation Temperature Range

Charge: 0°C – 45°C / Discharge: -20°C – 60°C

Storage Temperature

0°C – 40°C (Extended Storage: 15°C – 25°C)

Battery Box Material

Plastic Casing

Assembled Pack Certificates

UN38.3; MSDS; RoHS; SGS

Limited Warranty

1 Year

Cells

Samsung

LCD Instructions

PAV3 Stretch

A: Handlebar Reach

12-24 Inches

B: Handlebar Rise

0-4 Inches

C: Standover Height

18 Inches

D: Seat Length to Pedal

27-42 Inches

E: Seat Height to Ground

22 Inches

Recommended Rider Height

5'5"-6'6" Inches

How to Measure Your X-Seam

At Electric Trike Store, we like to use the x-seam measurement to fit riders on recumbent trikes and inseam to fit riders on upright trikes (like the Sun Traditional).

We use this measurement to adjust your trike to fit you out of the box, but it's simple to adjust your trike later to suit your preferences. This is just a rough measurement to make things easier for you.

Alternatively, if you like reading and diagrams...

To measure your X-Seam, you'll need a tape measure, a sturdy board (like a piece of plywood or an ironing board), and an assistant to help you. If you currently ride a recumbent bike, you can use that to take the measurement instead of the board.
