Electric Mid-Drive Fat Trike
Affirm does a soft check on your credit (which won't affect your credit score).
DISCONTINUED

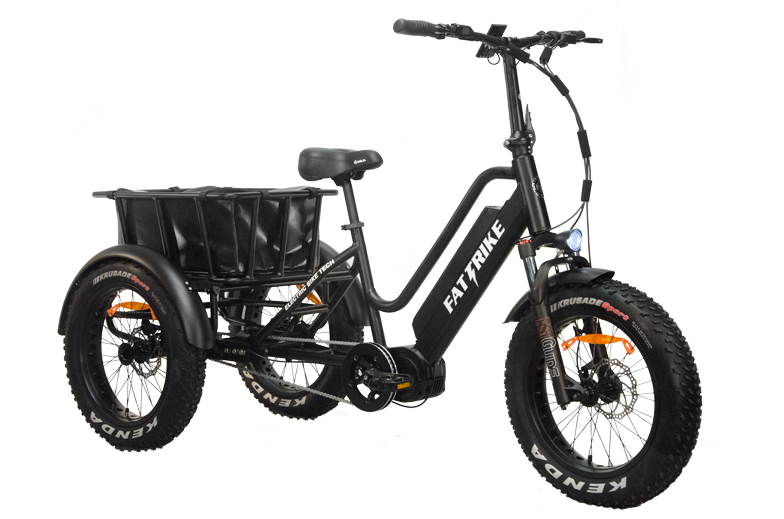

The Mid-Drive Electric Fat Trike is the biggest, baddest upright trike you’ve ever seen. With front suspension, 20" x 4” tires, easy-turn rear differential, drybag basket, and integrated lighting system, this trike has it all and then some.
The Mid-Drive Electric Fat Trike is our upgraded off-road adventure machine with 160Nm of torque for those who crave maximum dirt-devouring performance. It sports a high powered mid-drive motor system, high capacity in-frame battery, a front suspension fork and rear axle differential for maximum traction on loose surfaces.
Highlights
- Front suspension fork
- Double-wall alloy rims, 80mm wide, with cut-outs
- Zoom hydraulic disc brakes on all 3 wheels
- Rear wheel dual brakes with splitter for activating rear brakes
- 20" x 4" tires tuned for all trail conditions
- Ergo grips and wide handlebars for trail riding comfort
- Comfort seat with suspension springs
- 8.5" of trail-ready ground clearance
Videos
Reviews
Features

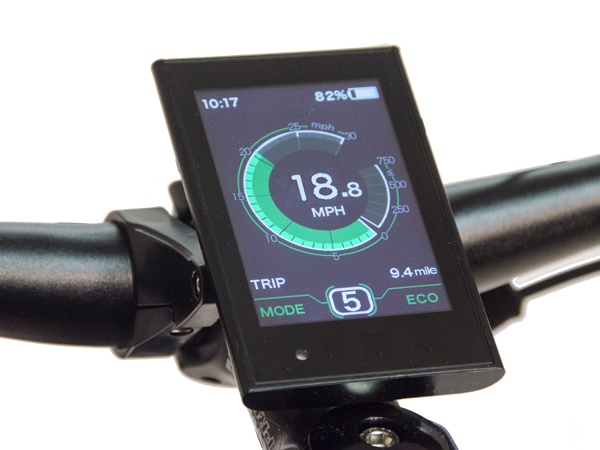

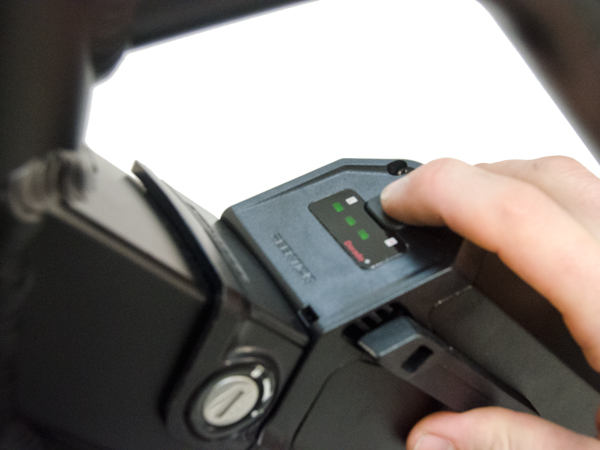

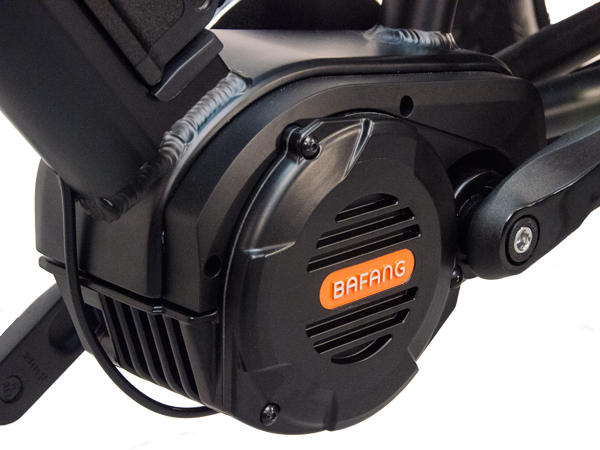

The Mid-Drive Electric Fat Trike has some incredible features that make it the most durable and powerful mid-drive fat trike we've ever seen. Integrated lights, color display, in-frame battery, and Bafangs latest Ultra 750w motor system put this electric trike in a class all its own.

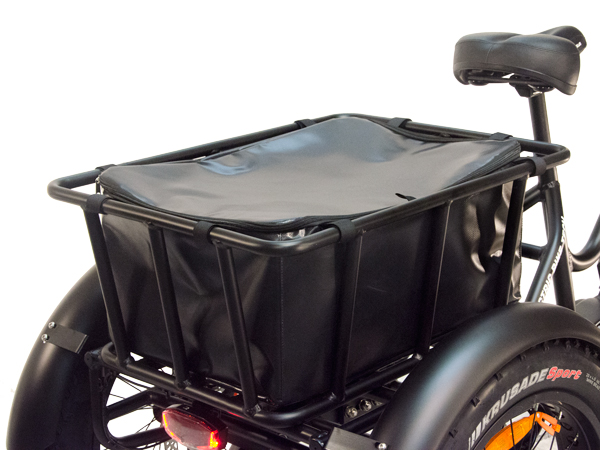

The Electric Mid-Drive Fat Trike sports an extra-large (22” x 17” x 9.5”) drybag, heavy-duty aluminum frame, internal cable routing, rear axle differential, frame-integrated battery, 3 hydraulic disc brakes (with a rear brake splitter), fenders, lights, and front suspension - this is a fully loaded trike!

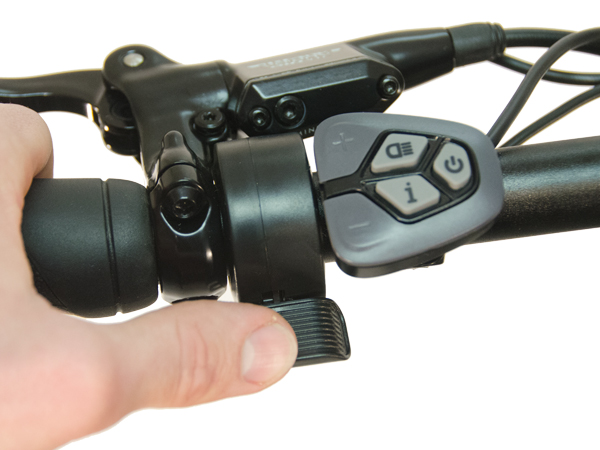

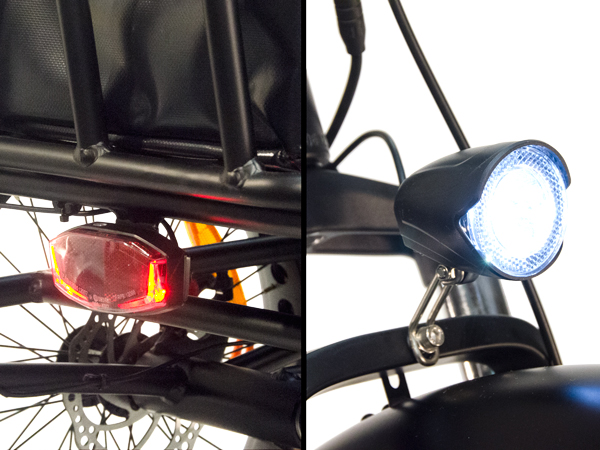

The Electric Mid-Drive Fat Trike features integrated front and rear lights powered by the E-bike battery and controlled by a handlebar button. The tail-light also features a daytime brakelight function. Never worry about changing out AAA batteries again!
Sizing
-
A: Handlebar Reach
26"-27" -
B: Handlebar Rise
0"-13" -
C: Standover Height
18" -
D: Seat Height to Pedal
23"-32" -
E: Seat Height to Ground
32"-38" -
Recommended Rider Height
5'-6'4"
Shipping
$250 Flat-Rate Shipping.
The Contiguous USA Only.
Sales Tax
Sales tax will be applied by state where applicable.
SHIPS 100% FULLY ASSEMBLED from Our Warehouse in Bucks County, PA
The tricycle is enclosed in a heavy cardboard box and fastened to a custom-built shipping pallet. Shipping is by freight truck with liftgate service included.
We use a variety of freight carriers based on your shipping destination. When the trike ships you will receive an email from us with tracking information. The freight company will contact you before the final delivery is made in order to arrange the drop-off with you.
RETURNS & REFUNDS
The electric tricycles we offer are high quality tricycles assembled by professionals with years of experience, and we stand behind each electric tricycle we build and ship. If, for any reason, after purchasing your electric trike, you are not 100% satisfied, simply contact customer service to discuss the return.
IMPORTANT: Buyers may return any undamaged and unused products (including fully assembled electric tricycles) within 30 days of delivery for a refund minus a 25% restocking fee (based on the condition of the returned item and at the sole discretion of EBT). ACTUAL ORIGINAL SHIPPING CHARGES (not the flat-rate $250), AND RETURN SHIPPING CHARGES (back to our facility) ARE THE SOLE RESPONSIBILITY OF THE BUYER. These return shipping costs can be significant. It is also imperative that you retain the shipping pallet and box should you decide to return a complete tricycle. If these packing items are discarded, the return will become that much more complicated and expensive.
For more information on Returns, Shipping Charges and refunds please visit our Terms & Conditions.
Transit Times
Approximate transit times start once the parcel leaves our Croydon, PA warehouse.
East Coast: 2-4 Business Days
Midwest: 3-5 Business Days
West Coast: 5-7 Business Days
With liftgate service, the truck can only lower the pallet to the ground, they cannot deliver it inside your house. You will need to open the box and dispose of the pallet afterward.
Shipping Size
80" x 40" x 44" and 190 lbs
Please note this custom electric trike is currently shipping without a user manual. The specifications sections should also provide most of the information you'll want to know. If you have any questions, suggestions, or additional information that you would like to see posted, please let us know.
If you have any questions, please contact us at
Tel: +1 800.375.0224 or
Email: support@electrictrike.com
Specs
-
Top Speed
21 mph (With User-Adjustable Speed Limit) -
Range
14-28 Miles (Depends on Total Load, Rider Input, Route, and Terrain Contingent) -
Motor
Bafang MM G510.750 /750-watt Integrated Mid-Drive Motor -
Battery
Samsung 35ET Cells / 48v 14Ah Capacity w/ USB -
Max. Payload
300 lbs (With Rider and Cargo) -
Charge Time
3.5 Hours -
Charger
48v 4A RT3 Plug -
Color
Satin Black -
Intended Use
Neighborhood, Cruising, and Paved Trail -
Frame Material
6061 Aluminum Alloy -
Fork Details
RST Guide Spring Suspension w/ 50mm Travel, Preload Adjust, 135mm Hub Spacing, 10mm Threaded Axle w/ 15mm Nuts -
Rear Frame Details
28" Wide Bolted Rear Split Axle Differential -
Rims
Alloy, 36-Holes, Double-Wall, w/ Cut-Outs -
Spokes
13 Gauge, Stainless Steel -
Tires
Kenda Krusade Sport, 20" x 4" at 5-30 psi -
Seatpost
Rigid Alloy, 28.6mm Diameter x 300mm Length -
Saddle
Velo Comfort Seat w/ Springs -
Headset
1 1/8″ Threadless Sealed Cartridge Bearings
-
Stem
Aluminum Alloy, Folding, Telescoping to 11"-16" -
Handlebar
750mm Width x 22.2 Diameter w/ 7º Back Sweep and .5" Rise -
Brakes
(F & R) Zoom Hydraulic Discs w/ 160mm Rotors and Splitter for Rear Rotors, Both Wheels are Controlled by One Lever -
Shifter
N/A -
Grips
Ergonomic -
Display
TFT Full Color LCD w/ USB -
Front Derailleur
N/A -
Rear Derailleur
N/A -
Cranks
170mm Length w/ 46t Chainring -
Gearing
Singlespeed w/ 20t Freewheel Cog -
Pedals
Wellgo, Alloy Platform Pedals -
Lights
(F & R) Auto-On/Off Lights Powered by the E-bike Battery / Tail-light Features Daytime Brake Light Function -
Basket
Color-Matched, Metal Basket: 22" Long x 17" Wide x 9" Deep w/ a Drybag -
Fenders
Color-Matched, Black Front and Rear -
Overall Length
81" -
Max. Width
31" -
Turning Radius
10'9" (Approx.) -
Overall Weight
98 lbs
Battery
-
Nominal Voltage
48v -
Nominal Capacity
14Ah -
Battery Energy
672Wh -
Dimensions
18" x 2.5" x 3.5" (46cm x 6cm x 9cm) -
Total Weight
8 lbs -
Cell Assembly
18650-3.6v-13S -
Life Cycles
> = 80% Dod = 500 Cycles -
Max. Continuous Discharge
22.5A -
BMS Protection Current
30A -
Discharge Cut-Off Voltage
37.5v
-
Max. Charge Voltage
54.6v -
Inner Resistance
< 50mΩ -
Charge Time
< = 4.7 Hours (14Ah Battery / 3A Charger) -
Operation Temperature Range
Charge: 0°C – 45°C / Discharge: -20°C – 60°C -
Storage Temperature
0°C – 40°C (Extended Storage: 15°C – 25°C) -
Battery Box Material
Aluminum Enclosure -
Battery Weight
8 lbs -
Assembled Pack Certificates
UL; UN38.3; MSDS; RoHS; SGS -
Cell Manufacturer
Samsung Model 35e -
Manufacturer
Electric Bike Technologies
